MAGEWELL USB Capture HDMI 4K Pro

MAGEWELL USB Capture HDMI 4K Pro

Magewell has expanded the renowned USB Capture Family with the unveiling of a new model that captures video sources up to 4K resolution at 60 frames per second – the USB Capture HDMI 4K Pro.

When used with a host computer that has a 20Gbps USB 3.2 Gen 2x2 interface, the USB Capture HDMI 4K Pro can capture HDMI inputs up to 4096x2160 (including 3840x2160 Ultra HD) at 60fps with 4:4:4 chroma fidelity. The device is also compatible with lesser-performance USB 3.2, USB 3.1 and USB 3.0 interfaces for capturing lower video signals (such as 1080p60 or 4K at 30fps 4:2:0 over 5Gbps USB, or 4K at 60fps 4:2:0 with 10Gbps USB), with the capture capabilities dependent on the host USB connectivity and operating system.

Interface

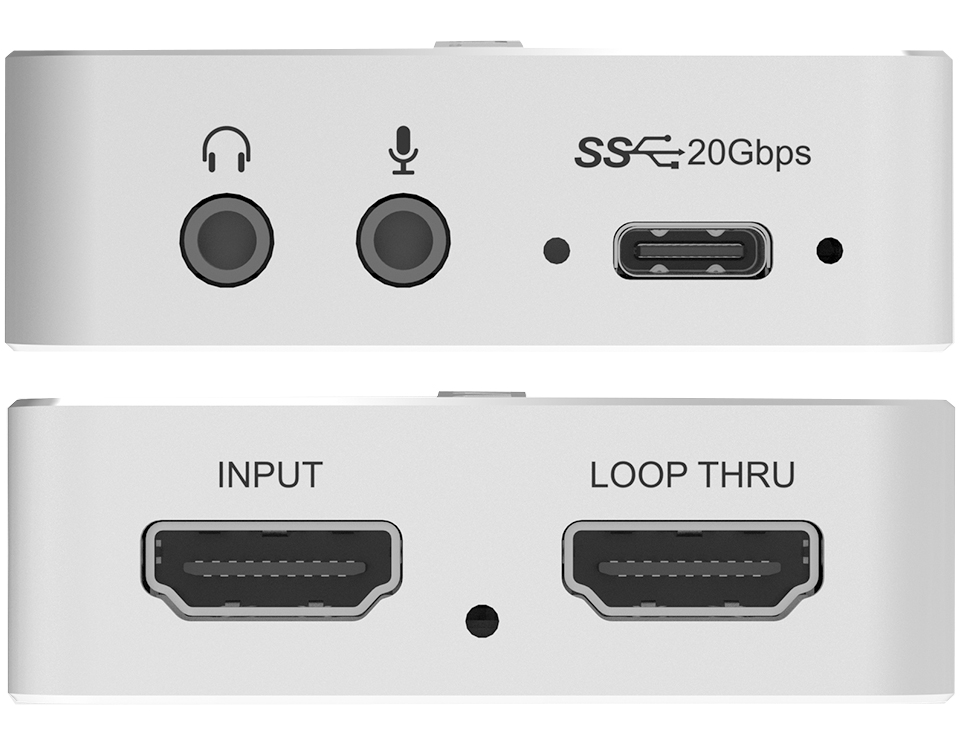

Input Interface & Loop-through Interface

  • One HDMI input + embedded audio
  • One HDMI loop-through
  • Support input & loop-through resolution up to 4096x2160 60fps 4:4:4

Audio Input/Output Interface

  • 3.5mm audio jack for microphone/ headphones

Host Interface

  • USB 3.2 Gen 2x2 up to 20G throughput

OS

  • Windows, Linux, Mac, Chrome

Capture format

  • Support capture resolutions up to 4096x2160
  • Support capture frame rates up to 240fps
  • Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
  • Actual capture format will vary based on the host system USB interface and operating system

Included Software

USB Capture Utility, Capture Express, etc.

Others

  • Auto detection of input signal format
  • Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
  • Windows, Linux and Mac SDK
  • Continuously work for 24hx7
  • LED status indicator
  • 3-year warranty
  • Form factor: 98.1 mm x 56.8 mm x 18 mm
