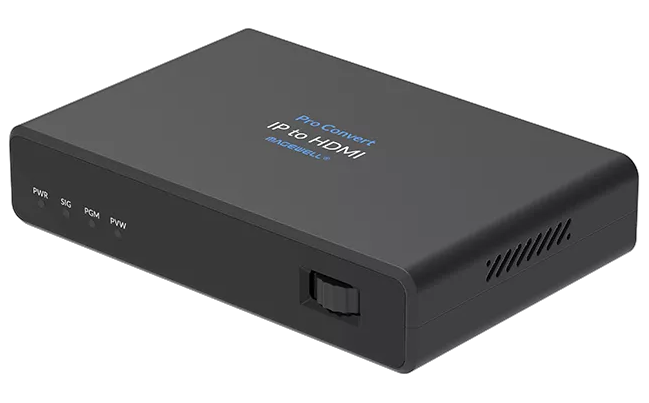

Magewell Pro Convert IP to HDMI

magewell Pro Convert IP to HDMI

SKU: 644300000

The Pro Convert IP to HDMI is a powerful, compact IP decoder designed to bridge modern IP-based media networks with HDMI displays and baseband AV systems. Capable of converting up to four IP video streams into a single QHD HDMI output, it delivers exceptional flexibility for professional AV, broadcast, live production, and enterprise environments.

Built on Magewell’s proven reliability, this next-generation Pro Convert decoder expands protocol support, enhances video quality up to 2560×1440p60, and adds flexible multiview layouts—making it easy to visualize, monitor, and distribute IP media sources with confidence.

Features

• Multi-Stream IP to HDMI Decoding

Decode up to four IP streams and output them in preset layouts

• Single full-screen
• Picture-in-picture (PiP)
• Quad-screen multiview
• Ideal for monitoring, presentations, and control rooms

High-Quality Video Output

• Maximum output resolution: 2560×1440p60, 4:4:4, 10-bit
• Supports HDR10 and color spaces BT.601 / BT.709 / BT.2020
• Automatically delivers the optimal format based on the connected display

Broad IP Protocol & Format Support

• Supports NDI High Bandwidth, NDI HX/HX2/HX3, SRT, RTMP, RTSP, HLS, ZIXI, TS over RTP/UDP
• Video formats: H.264, H.265, MPEG-2, SpeedHQ (NDI High Bandwidth)
• Audio formats: AAC, MP3, AC3, Opus, G.711
• Fully compatible with NDI 6.x

Flexible Decoding Modes

• Single stream: up to 2560×1440p60
• Quad-screen: 4× 1080p60 (H.264/H.265)
• Picture-in-picture: 2× 1080p60, with support for MPEG-2 or SpeedHQ on one stream

Professional Audio Support

• Up to 8-channel audio
• 48 kHz / 96 kHz sampling rates

Advanced Control & Management

• Intuitive Web GUI with real-time video preview (stream or MJPEG)
• On-board rotary control for quick configuration
• Control Hub registration for remote, centralized management
• HTTP APIs for integration with third-party control systems
• PTZ camera control and output image preview
• Firmware upgrades, configuration import/export, and security settings

Connectivity & Hardware

• HDMI 1.4 output
• Gigabit Ethernet with PoE (802.3af/at) support
• USB 3.0 Type-C and Type-A ports for peripherals and USB networking
• Compact form factor: 120 × 79.3 × 24.5 mm
• LED indicators for power, decoding status, and NDI tally (Program/Preview)
