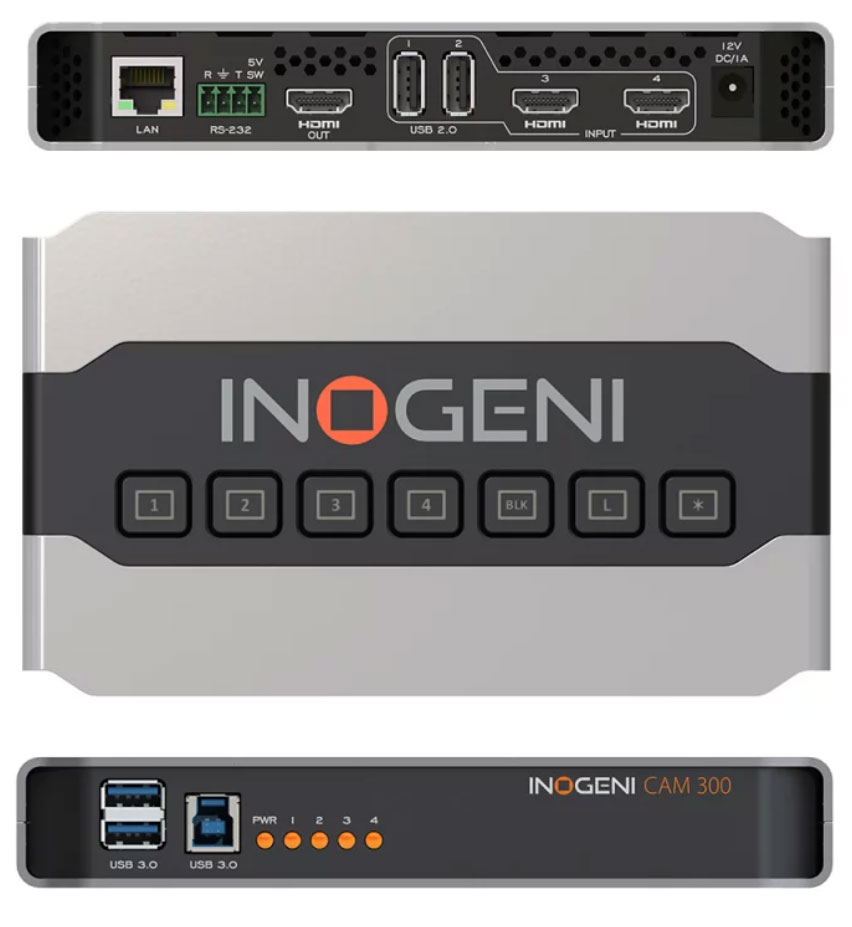

INOGENI CAM300 Camera Switcher

INOGENI CAM300

The Inogeni CAM300 is a signal converter and switcher between various video sources from HDMI and USB 2.0 to HDMI and USB 3.0. The device is particularly suitable for webinars and live streaming or video meetings. It supports up to four video camera sources (2x USB and 2x HDMI), between which you can seamlessly switch at the touch of a button.

The CAM300 provides a cost-effective solution that is easy to install and connect (no driver required). It is designed to work with CODECs, soft-CODEC cameras, and video signals via USB, SDI, HDMI, or DVI. The device is compatible with all cameras - including professional devices such as Vaddio, Huddly, HuddleCAMHD, Aver, Jabra, Logitech, Marshall cameras, and webcams. Signals are output as uncompressed video via USB 3.0, MJPEG via USB 2.0, and HDMI 1080p60, and the device can be controlled via LAN and RS-232. The device is HDCP compatible. It does not decrypt BD/DVD movies, satellite/cable receivers, or other encrypted sources.

Features

• Supports up to 4 video sources
• Compatible with all cameras with HDMI, DVI, or USB 2.0 output
• Seamless switching
• No driver installation required
• Compact and robust design
• Aluminum housing
• Designed and manufactured in Canada

Technical data

• 2x HDMI & 2x USB 2.0
• 2 outputs: HDMI 1080p60 & USB 3.0 output
• 1x Ethernet RJ-45
• 1x RS-232 Remote
• Color spaces: HDMI: RGB, YCbCr 4:4:4 and 4:2:2
• Voltage: 12V DC
• Power consumption: 6 W
• Dimensions (W x L x H): approx. 18.5 x 11.4 x 3.2 cm
• Weight: approx. 470 g

Video Output

• 1x HDMI up to 1080p60
• 1x USB 3.0 uncompressed up to 1080p60
• USB color space or CODEC
• USB 3.0: YCbCr (YUY2) 4:2:2 8-bit
• USB 2.0: MJPEG

Digital Audio I/O

• HDMI embedded PCM
• USB camera audio
• USB 3.0 PCM Stereo, audio follow input

UVC Compatibility

• Works with any software compatible with DirectShow, AVFoundation, and V4L2
• Compatible with: Teams, Zoom, Webex, Google Meet, etc

Package Contents

• 1x CAM300 HDMI/USB Switcher
• 1x USB 3.0 cable (Type-A to Type-B), 1 m
• 1x RS-232 terminal block adapter
• 1x Power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
• International adapters included (EU, AUS, UK, and US)
