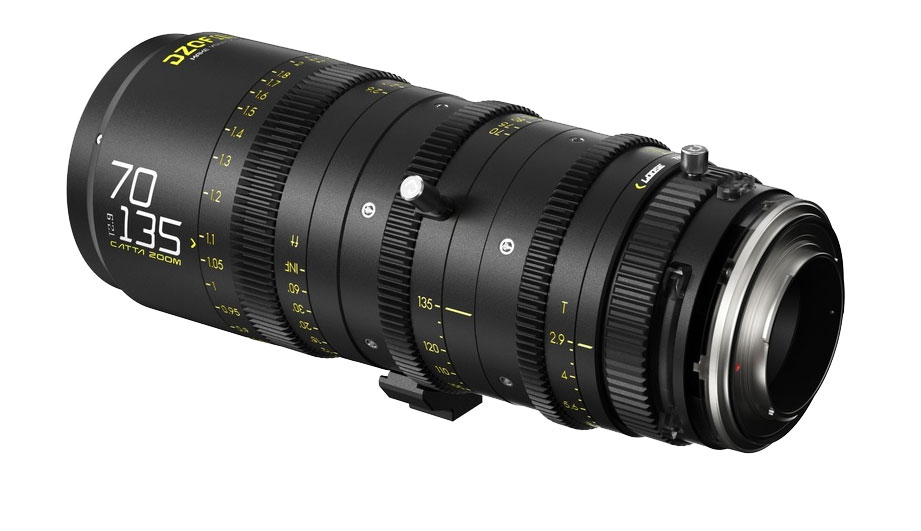

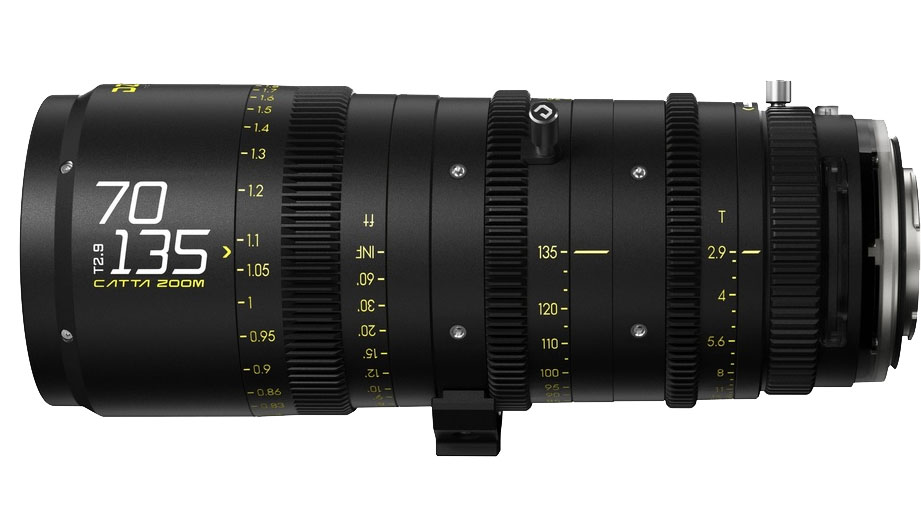

DZOFILM Catta Zoom 70-135 T2.9 Black
Product number:
SW28098.1
Manufacturer:
DZOFilm
Manufacturer product number:
DZO-FF70135E-BLK
Delivery time:
1-3 days
DZOFILM Catta Zoom 70-135 T2.9
- FOCAL LENGTH: 70-135mm
- Colour: BLACK / WHITE
- Mount: E/RF*/L*/X*/Z* (*optional)
- T-stop: T2.9-T22
- Image circle: φ 43.5mm(FULL FRAME)
- Optical Construction: 17 Elements in 11 Groups
- Flange Distance: E=18mm,L/RF=20mm,X=17.7mm,Z=17mm
- Close Focus: 0.76m
- Zoom Ratio: 1.9X
- Iris control: Manual(rotation angle 80°)
- Focus control: Manual(rotation angle 270°)
- Zoom control: Manual(rotation angle 100°)
- Front Dia.: Ø 80mm
- Length: 214.4mm
- Iris Blades: 16
- Filter Size: M77
- Gear Pitch: 0.8 Mod
- Material: PC+GF
- Weight: 1597g
Details of the manufacturer
- DZOFILM/ Shenzhen Dongzheng Optical Technology Co., Ltd.
- Building One, XInwuxia Industrial Park, No.32, Cuibao Road, Baolong Street, Longgang Street, ShenZhen 518000, China
Details of the person responsible for putting the product on the European market
- Riwit GmbH
- Wolfgang Seidel
- Im Gewerbepark A70
- 93059 Regensburg, Germany
Warnings and safety information
Related links of the manufacturer
Skip product gallery
Similar products
Tip

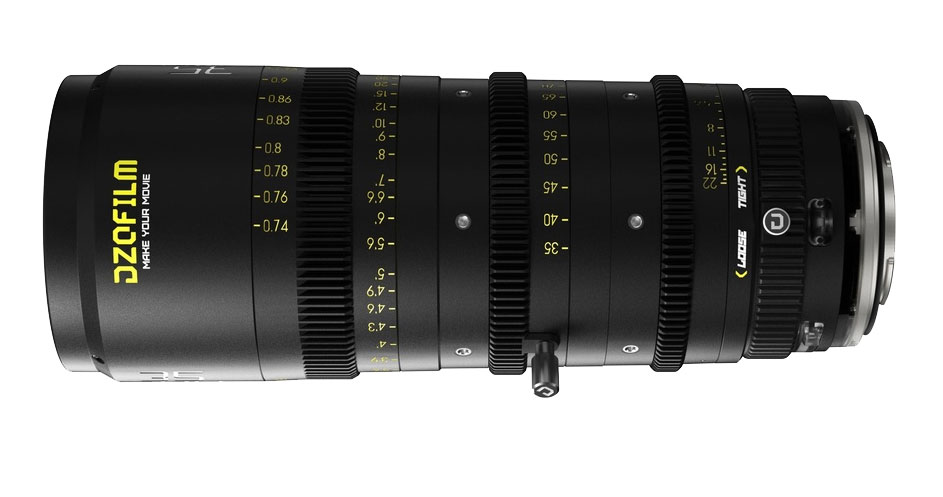

DZOFILM Catta Zoom 35-80 T2.9 Black
€2,183.10*
gross: €2,597.89
Colour:
Black
DZOFILM Catta Zoom 35-80 T2.9This cine lens is designed to maintain focus as you zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 75cm close focus range. True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, and Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, a support rod, and a filter bracket. FeaturesMaintains focus throughout 35 to 80mm zoom rangeMinimal breathing16-blade iris with a soft bokehT2.9 to T22 aperture; 2.3x magnification ratio240° focus rotation; 100° zoom rotation; 75° iris rotation29.1" minimum focus distance80mm front diameter0.8 MOD gears
Technical dataFOCAL LENGTH: 35-80mmColour: BLACK / WHITEMount: E/RF*/L*/X*/Z* - *optionalT-stop: T2.9-T22Image circle: φ 43.5mm(FULL FRAME)Optical Construction: 20 Elements in 15 GroupsFlange Distance: E=18mm,L/RF=20mm,X=17.7mm,Z=17mmClose Focus: 0.75m
=Zoom Ratio: 2.3XIris control: Manual(rotation angle 75°)Focus control: Manual (rotation angle 270°)Zoom control: Manual (rotation angle 100°)Front Dia.: Ø 80mmLenght: 214.4mmIris Blades: 16Filter Size: M77Gear Pitch: 0.8 ModMaterial: PC+GFWeight: 1532g

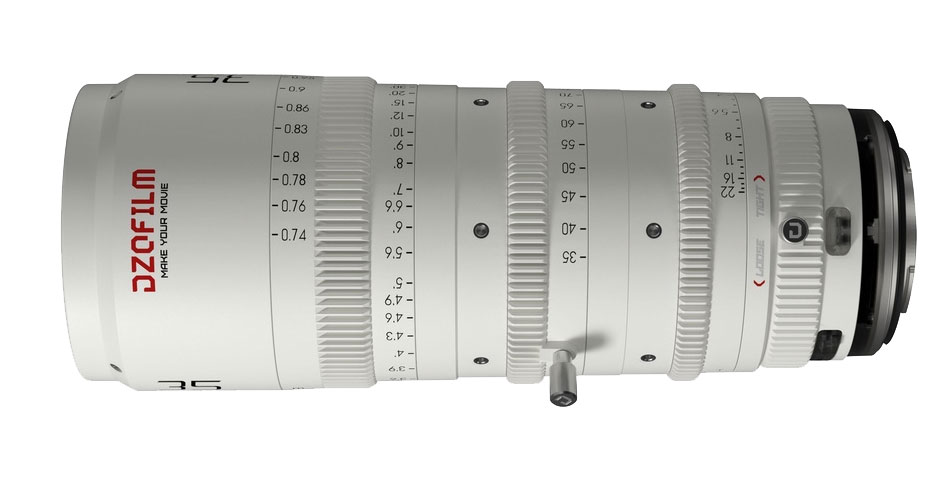

DZOFILM Catta Zoom 35-80 T2.9 White
€2,183.10*
gross: €2,597.89
Colour:
White
DZOFILM Catta Zoom 35-80 T2.9This cine lens is designed to maintain focus as you zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 75cm close focus range. True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, and Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, a support rod, and a filter bracket. FeaturesMaintains focus throughout 35 to 80mm zoom rangeMinimal breathing16-blade iris with a soft bokehT2.9 to T22 aperture; 2.3x magnification ratio240° focus rotation; 100° zoom rotation; 75° iris rotation29.1" minimum focus distance80mm front diameter0.8 MOD gears
Technical dataFOCAL LENGTH: 35-80mmColour: BLACK / WHITEMount: E/RF*/L*/X*/Z* - *optionalT-stop: T2.9-T22Image circle: φ 43.5mm(FULL FRAME)Optical Construction: 20 Elements in 15 GroupsFlange Distance: E=18mm,L/RF=20mm,X=17.7mm,Z=17mmClose Focus: 0.75m
=Zoom Ratio: 2.3XIris control: Manual(rotation angle 75°)Focus control: Manual (rotation angle 270°)Zoom control: Manual (rotation angle 100°)Front Dia.: Ø 80mmLenght: 214.4mmIris Blades: 16Filter Size: M77Gear Pitch: 0.8 ModMaterial: PC+GFWeight: 1532g
Tip

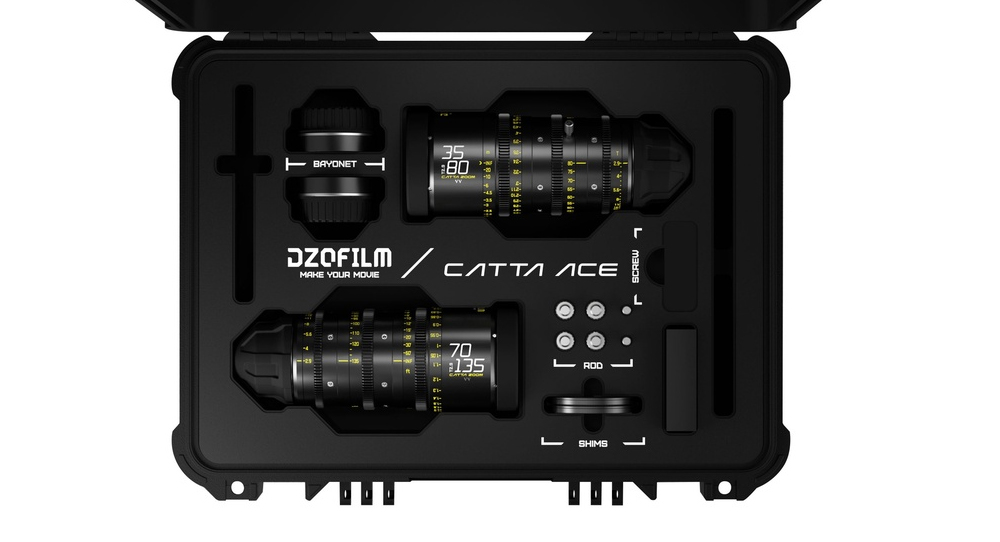

DZOFILM Catta Ace Zoom 2-Lens Kit (35-80/70-135 T2.9)
€5,305.75*
gross: €6,313.84
DZOFILM Catta Ace Zoom 2-Lens Kit (35-80/70-135 T2.9)
SKU: DZO-FFCattaA-BUNDLE
The Catta Ace Full-Frame Zoom lenses with a maximum aperture of T2.9 are powerful cine zoom leness with an image circle of 46.5mm, making it perfect for current professional cinema-cameras. The lenses come mounted with a PL mount. An EF mount is included in the box. The DZOFILM Catta Ace Zoom Bundle comes in a sturdy carrying case. A good company for your documentaries/ TVC/ MV/ commercials/ online films/ variety/ live/ independent films, etc.
In the box
1 x DZOFILM CATTA Ace ZOOM 35-80mm PL (Black)1 x DZOFILM CATTA Ace ZOOM 70-135mm T2.9 PL (Black)
Tip
DZOFILM Catta Ace Zoom 18-35 T2.9
€3,441.85*
gross: €4,095.80
DZOFILM Catta Ace Zoom 18-35
Full Frame Cinema Zoom Lens 18-35mm, T2.9 with PL and EF Mount
The Catta Ace Full-Frame Zoom 18-35mm with a maximum aperture of T2.9 is a powerful cine zoom lens with an image circle of 43.5mm, making it perfect for current professional cinema-cameras. The lens comes mounted with a PL mount. An EF mount is included in the box. The compact zoom lens delivers cinematic image quality and natural skin tones. The parfocal design ensures consistent sharpness when zooming. Focus breathing and image shifting are significantly reduced.
Features
Stunning Breathing ControlPL- and EF-Mount included (LPL optional)Accustomed light weight43.5mm Image Circle16 Iris Blades
Technical data
FOCAL LENGTH: 18-35mmColour: BLACKMount: PL / EF / LPLT-stop: T2.9 - T22Image circle: φ 43.5mm(VV/FF)Optical Construction: 20 Elements in 14 GroupsFlange Distance: PL=52mm, EF/LPL=44mmClose Focus [FROM SENSOR PLANE]: 0.51mZOOM RATIO: 1.9XIris control: Manual (rotation angle 75°)focus control: Manual (rotation angle 270°)zoom control: Manual (rotation angle 100°)Front Dia.: φ 80mmLENGTH: 179.5mm (PL), 187.5mm (EF/LPL）Iris Blades: 16Filter Size: M77GEAR PITCH: 0.8 Modmaterial: Aluminium alloyWeight: ≈1850g
In the box
1 x DZOFILM CATTA Ace ZOOM 18-35mm T2.9 (Black) with PL-Mount1 x EF-Mount1 x Lenscap1 x Rear cap
Tip

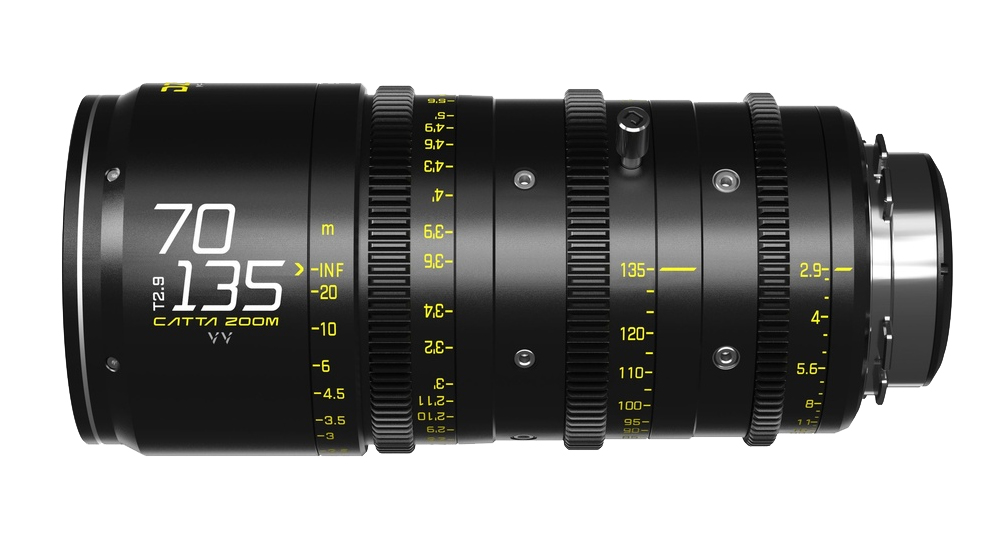

DZOFilm Catta Ace Zoom 70-135 T2.9
€2,855.70*
gross: €3,398.28
DZOFilm Catta Ace Zoom 70-135 T2.9
The Catta Ace Full-Frame Zoom 70-135mm with a maximum aperture of T2.9 is a powerful cine zoom lens with an image circle of 46.5mm, making it perfect for current professional cinema-cameras. The lens comes mounted with a PL mount. An EF mount is included in the box.
The compact zoom lens delivers cinematic image quality and natural skin tones. The parfocal design ensures consistent sharpness when zooming. Focus breathing and image shifting are significantly reduced.
Features
Stunning Breathing ControlPL- and EF-Mount included (LPL optional)Accustomed light weight46.5mm Image Circle 16 Iris Blades
Technical data
FOCAL LENGTH: 70-135mm Colour: BLACKMount: PL / EF / LPLT-stop: T2.9 - T22Image circle: φ 46.5mm(VV/FF)Optical Construction: 17 Elements in 11 Groups Flange Distance: PL=52mm, EF/LPL=44mmClose Focus [FROM SENSOR PLANE]: 0.76mZOOM RATIO: 1.9XIris control: Manual (rotation angle 80°)focus control: Manual (rotation angle 270°)zoom control: Manual (rotation angle 100°)Front Dia.: φ 80mmLENGTH: 179.5mm (PL), 187.5mm (EF/LPL）Iris Blades: 16Filter Size: M77GEAR PITCH: 0.8 Modmaterial: Aluminium alloyWeight: ≈1710g
In the box
1 x DZOFILM CATTA Ace ZOOM 70-135mm T2.9 (Black) with PL-Mount1 x EF-Mount1 x Lenscap1 x Rear cap
Tip
DZOFILM Catta Ace Zoom 35-80 T2.9
€2,855.70*
gross: €3,398.28
DZOFILM Catta Ace Zoom 35-80 T2.9
The Catta Ace Full-Frame Zoom 35-80mm with a maximum aperture of T2.9 is a powerful cine zoom lens with an image circle of 46.5mm, making it perfect for current professional cinema-cameras. The lens comes mounted with a PL mount. An EF mount is included in the box.
The compact zoom lens delivers cinematic image quality and natural skin tones. The parfocal design ensures consistent sharpness when zooming. Focus breathing and image shifting are significantly reduced.
Features
Stunning Breathing ControlPL- and EF-Mount included (LPL optional)Accustomed light weight46.5mm Image Circle 16 Iris Blades
Technical data
FOCAL LENGTH: 35-80mmColour: BLACKMount: PL / EF / LPLT-stop: T2.9 - T22Image circle: φ 46.5mm(VV/FF)Optical Construction: 20 Elements in 15 GroupsFlange Distance: PL=52mm, EF/LPL=44mmClose Focus [FROM SENSOR PLANE]: 0.74mZOOM RATIO: 2.3XIris control: Manual (rotation angle 75°)focus control: Manual (rotation angle 270°)zoom control: Manual (rotation angle 100°)Front Dia.: φ 80mmLENGTH: 179.5mm (PL), 187.5mm (EF/LPL）Iris Blades: 16Filter Size: M77GEAR PITCH: 0.8 Modmaterial: Aluminium alloyWeight: ≈1635g
In the box
1 x DZOFILM CATTA Ace ZOOM 35-80mm T2.9 (Black) with PL-Mount1 x EF-Mount1 x Lenscap1 x Rear cap
extra charge for1 x Carrycase
