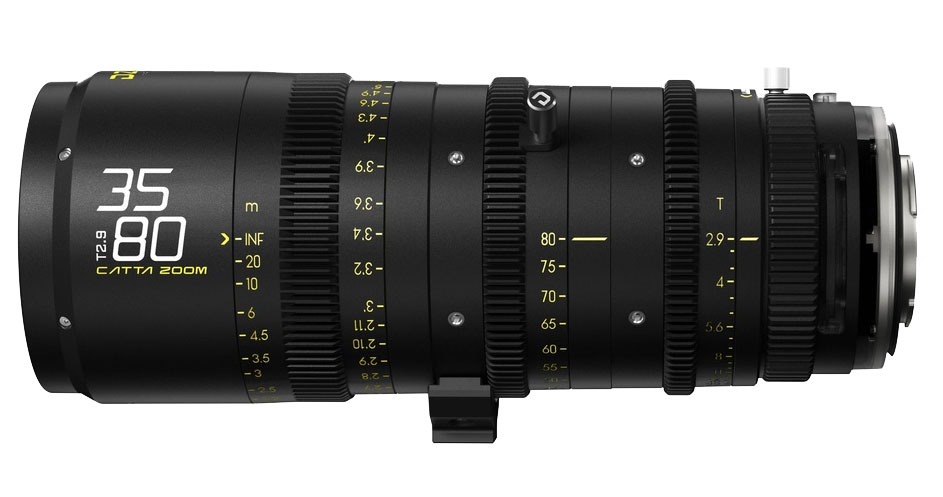

DZOFILM Catta Zoom 35-80 T2.9 Black

DZOFILM Catta Zoom 35-80 T2.9

This cine lens is designed to maintain focus as you zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 75cm close focus range. True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, and Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, a support rod, and a filter bracket.

Features

  • Maintains focus throughout 35 to 80mm zoom range
  • Minimal breathing
  • 16-blade iris with a soft bokeh
  • T2.9 to T22 aperture; 2.3x magnification ratio
  • 240° focus rotation; 100° zoom rotation; 75° iris rotation
  • 29.1" minimum focus distance
  • 80mm front diameter
  • 0.8 MOD gears

Technical data

  • FOCAL LENGTH: 35-80mm
  • Colour: BLACK / WHITE
  • Mount: E/RF*/L*/X*/Z* - *optional
  • T-stop: T2.9-T22
  • Image circle: φ 43.5mm(FULL FRAME)
  • Optical Construction: 20 Elements in 15 Groups
  • Flange Distance: E=18mm,L/RF=20mm,X=17.7mm,Z=17mm
  • Close Focus: 0.75m =Zoom Ratio: 2.3X
  • Iris control: Manual(rotation angle 75°)
  • Focus control: Manual (rotation angle 270°)
  • Zoom control: Manual (rotation angle 100°)
  • Front Dia.: Ø 80mm
  • Lenght: 214.4mm
  • Iris Blades: 16
  • Filter Size: M77
  • Gear Pitch: 0.8 Mod
  • Material: PC+GF
  • Weight: 1532g

Details of the manufacturer

  • DZOFILM/ Shenzhen Dongzheng Optical Technology Co., Ltd.
  • Building One, XInwuxia Industrial Park, No.32, Cuibao Road, Baolong Street, Longgang Street, ShenZhen 518000, China

info@dzofilm.com

Details of the person responsible for putting the product on the European market

  • Riwit GmbH
  • Wolfgang Seidel
  • Im Gewerbepark A70
  • 93059 Regensburg, Germany

office@riwit.eu
