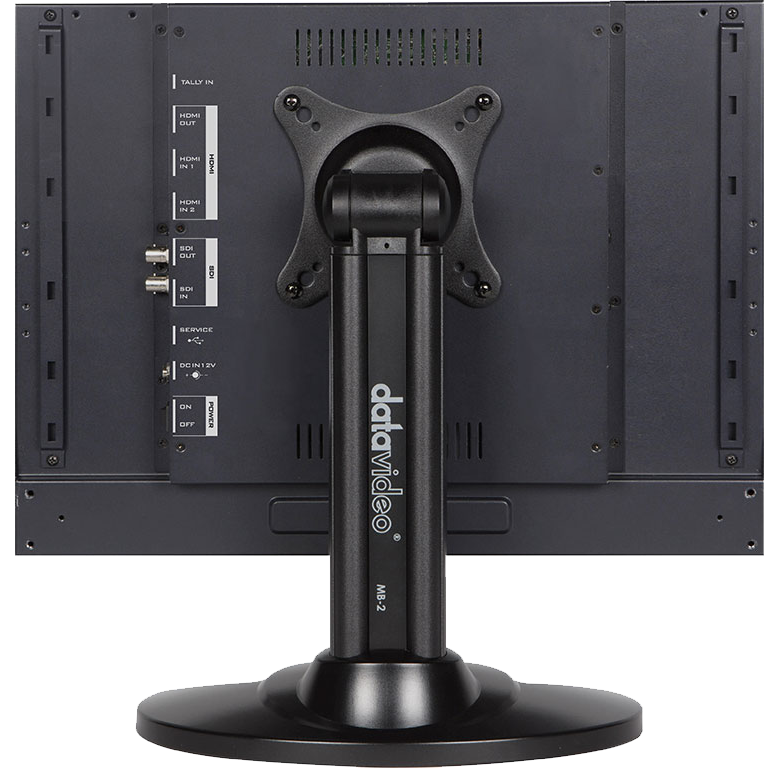

DataVideo TLM-170V 17" ScopeView Production Monitor

DataVideo TLM-170V 17" ScopeView Production Monitor

Features

  • SDI and HDMI cross conversion
  • Support column (YRGB peak)
  • time code, waveform
  • vector scope & audio level meter
  • peaking focus assist
  • zoom, pix to pix
  • underscan, check field

Technical data

  • Aspect Ratio: 16:9, 4:3
  • Aspect Marker: YES
  • Safty Marker: YES
  • Tally LED: Live (Red) / Cued (Green)
  • Audio In/Out: 2x Speaker / 1x Headphone Jack
  • Screen: 17.3" LED Backlit
  • Chassis: Tabletop
  • Resolution: 1920x1080
  • Viewing Angle: (H) +89/-89° / (V) +89/-89°
  • Luminance/Contrast: 300cd/m² / 700:1
  • Video Inputs: 1x 3G/HD/SD-SDI / 2x HDMI
  • Loop Through: 1x 3G/HD/SD-SDI
  • Dimension (WxHxD): 403 x 305 x 37 mm
  • Weight: 4.5 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 12V, 21.9W

Supported Input Resolutions

  • 1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
  • 1080i(50/59.94/60Hz)
  • 720p(50/59.94/60Hz)
  • 576i(PAL), 480i(NTSC)

In the box

  • 1 x TLM-170V product
  • 1 x AD Switch DC 12V
  • 1 x Monitor Stand
  • 2 x Velcro
