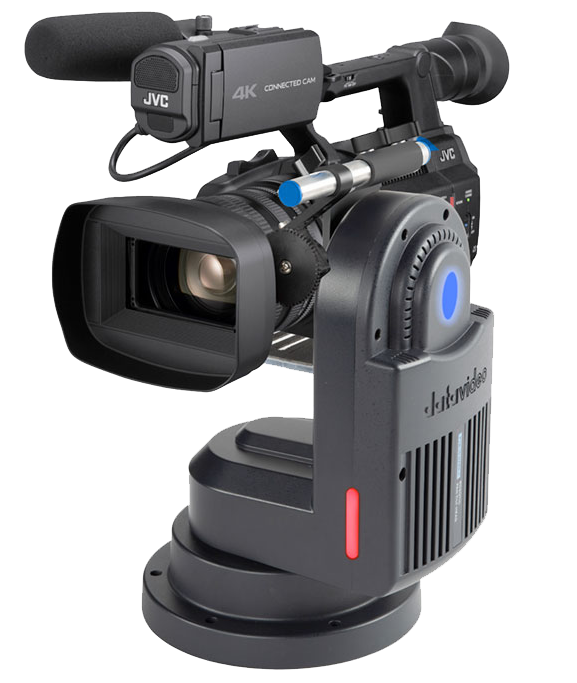

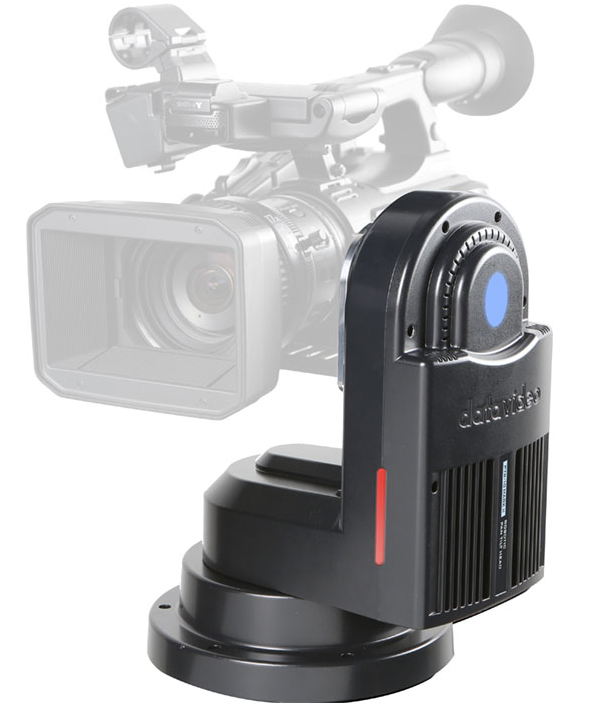

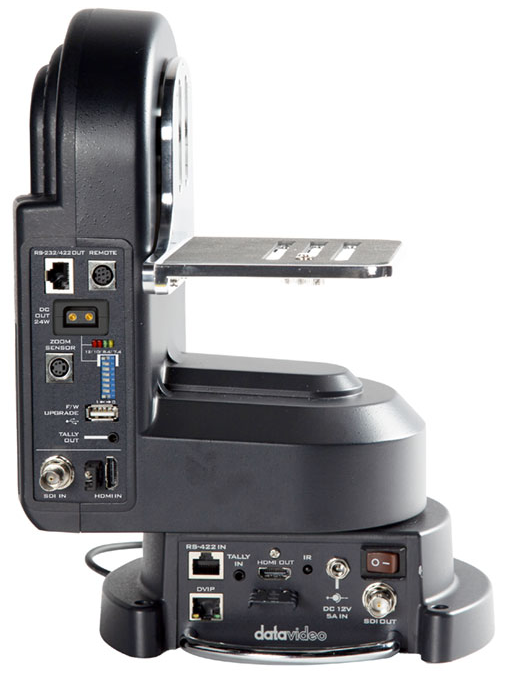

DataVideo PTR-10MKII Robotic Pan Tilt Head

Datavideo PTR-10 MARK II Robotic Pan Tilt Head

Datavideo’s Brand-New PTR-10 MARK II is a Robotic Pan-Tilt Head that is Designed to Turn Any Small Size Video Camera or Block Cameras into a Robotic Camera. A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The Datavideo PTR-10 MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.

Technical data

  • Video Interface: HDMI x 1 / SDI x 1
  • Video Output: 2160p 29.97/25, 1080p 59.94/50, 1080i 59.94/50, 720p 59.94/50
  • Control Unit: RMC-180 / RMC-300A / RMC-300C / ShowCast 100 / VISCA Protocol Controller / IP Control / IR remote
  • Panning / Tilting Range: Pan: 340° / Tilt: ±45°
  • Panning / Tilting Speed: Pan: 0.12~15° /Sec / Tilt: 0.06~10° /Sec
  • Preset: Pan/Tilt position 50
  • Control Distance: 1,200M by RS422 / 100M by DVIP
  • Control Protocal: Sony VISCA / DVIP
  • Control Input: RS-422 / DVIP
  • Maximum Load: 4 KG Max
  • Control Output: RS-232 / RS-422 / BX-Lens / LanC
  • Power Requirement: DC 12V~ 18V, 3A (Without Camera) / DC 12V~ 18V, 5A (With Camera)
  • Power Supply: DC 12/10/8.4/7.4V, 24W Max
  • Operating Temp. Range: 0~40 C°
  • Operating Humidity Range: 10~80%
  • Storage Temp. Range: -10~60C°
  • Storage Humidity Range: 5~80%
  • Weight: 3.4 kg
  • Dimension (LxWxH): 230 x 190 x 300 mm

In the Box

  • 1 x PTR-10 Mark II Main Unit
  • 1 x DC 12V power adaptor
  • 1 x AC cord
  • 1 x IR remote control
  • 1 x DC with lock to D-Tap cable
  • 1 x HDMI cable
  • 1 x SDI cable
  • 1 x Remote cable (2.5mm phone-jack to mini-din 8pin)
  • 2 x 1/4” screw
  • 1 x 1/4” to 3/8” screw adaptor
