DataVideo PTC-325W 4K 30X Tracking PTZ Camera WHITE
Product number:
SW29200.1
Manufacturer:
Datavideo
EAN:
672255010075
Manufacturer product number:
7000-3126
DataVideo PTC-325 4K 30X Tracking PTZ Camera
The Datavideo PTC-325 is equipped with a 1/2.8-inch CMOS sensor and a 30x optical zoom lens, offering 4K 50/60p output via HDMI with YUV 4:2:2 color sampling. This setup delivers sharp, detailed images with accurate color reproduction, even in larger venues. The camera's built-in Auto Tracking feature automatically locks onto and smoothly follows the subject, making it perfect for hands-free operation.
The PTC-325 also supports NDI for low-latency video transmission over networks, making it an excellent choice for live streaming and remote production. It offers dual power options, including DC input and PoE, and features robust encoding capabilities for exceptional performance and versatility.
Designed with the A/V market in mind, the PTC-325 series supports dual streaming output, enabling easy streaming to platforms like Facebook (RTMPS), YouTube, and dvCloud. Its compliance with the ONVIF Profile S standard ensures compatibility and interoperability across diverse network video environments.
Technical data
Video format/Resolution
HDMI
- 2160p60/59.94/50/30/29.97/25
- 1080p60/59.94/50/30/29.97/25
- 1080i60/59.94/50
- 720p60/59.94/50
- *2160p60/59.94/50 YUV 4:2:2
SDI
- 1080p 60/59.94/50/30/29.97/25
- 1080i 60/59.94/50
- 720p 60/59.94/50
- Image Sensor: Sony 1/2.8" CMOS
- Effective Pixels (approx.): 8.46Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 30x Optical, 16x Digital Zoom
- Effective Zoom Ratio: 30x
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC / Gain Control: Yes
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range: Pan: 300° / Tilt: +90° to -15°
- Panning / Tilting Speed: Pan: 0.876°/s~43°/s / Tilt: 0.693°/s ~21.32°/s
- Preset: 255
- Focal Length: 30x, f = 4.5mm ~135mm, F1.8 ~ F4.7
- Field of View (Horizontal, Wide): 62.3°
- Image Compensation: Back light compensation

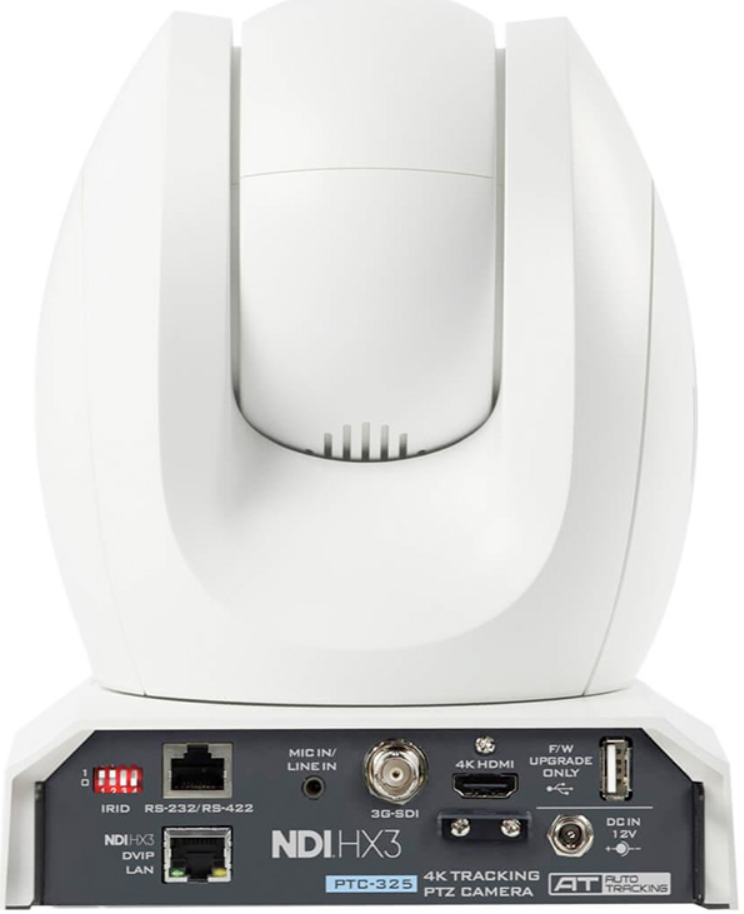

- Video Output: HDMI 2.0 x1, 3G-SDI x1, 10/100/1000M RJ45 (PoE) x1
- Audio Input: 3.5 mm x1 (mic in/line in), switch from Web UI
- Tally LED" Yes
- Lens Filter: N/A
- Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
- Remote Control Interface: IR, Web GUI, RS-422/RS-232, DVIP, NDI
- Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC, G711
- Audio Bitrate: 96Kbps, 128Kbps,256Kbps
- HD IP Interface: ----
- Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
- First Stream Supported Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360,
- Second Stream Supported Resolution: 720x480, 640x360, 480x270, 320x240
- Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
- Video Bitrate Mode: VBR, CBR
- Encoding Frame rate: 50Hz: 1-50fps, 60Hz: 1-60fps
- POE: IEEE 802.3at, PoE+
- F/W Update: Via Web UI or USB 2.0
- IR Control: Yes
- Camera Control Unit: RMC-2P, RMC-180 series/, RMC-300 series/, PTZ View Assist APP
- Tripod Mount: 1/4-20 UNC
- Optional Accessories: WM-1/ WM-10/ WM-11
- Color: Black/White
- Dimension (LxWxH): 173 (W) x 219 (H) x 189.08 (D)
- Weight: 2.6 kg
- Operating Temp. Range: 0~40 °C
- Power: DC 12V 21W
In the Box
- 1 x PTC-325 product
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Safety cable
Details of the manufacturer
- Datavideo Technologies Co. Ltd – Taiwan
- 10F. No. 176, Jian 1st Road Zhonghe Dist. New Taipei City 235, Taiwan
+886-2-8227-2888
Details of the person responsible for putting the product on the European market
- Datavideo Technologies Europe B.V.
- Floridadreef 106
- 3565 AM UTRECHT, The Netherlands
+31 30 261 9656
