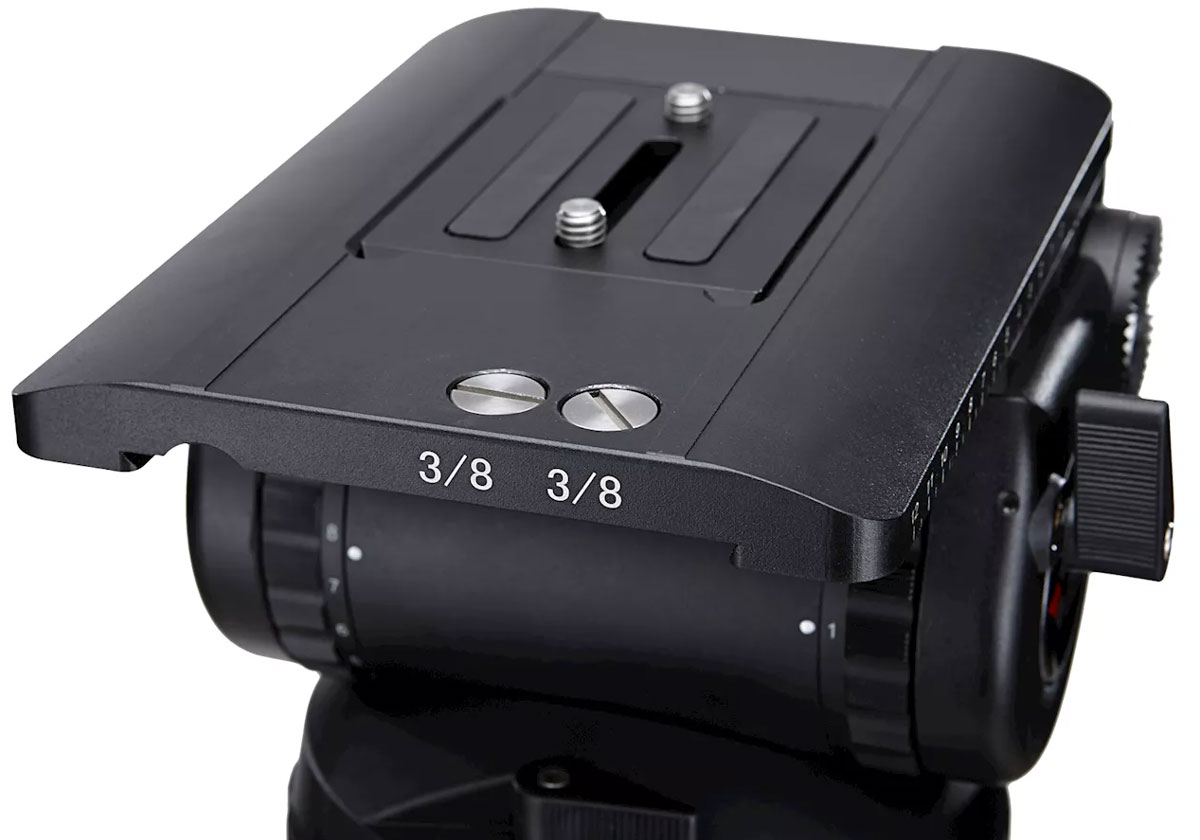

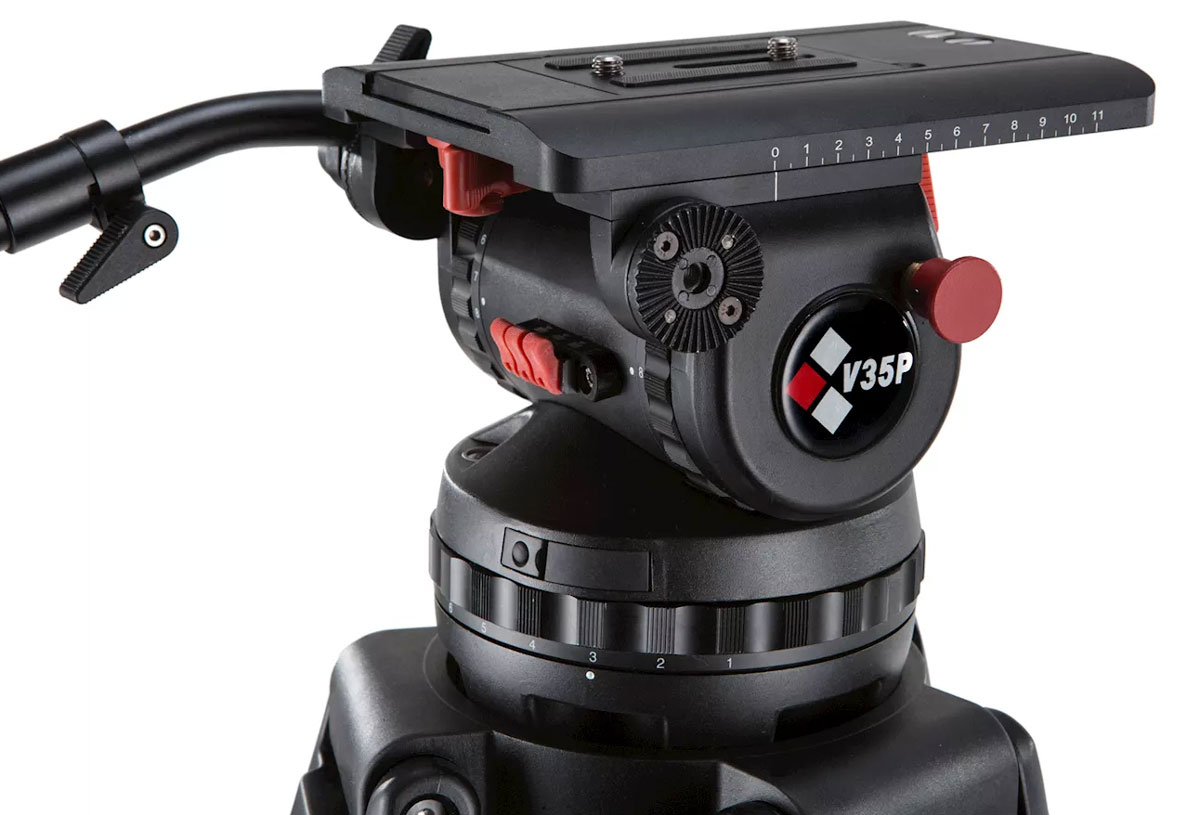

Camgear V35P EFP Fluid Head (150mm Bowl)
Product number:
SW29057.1
Manufacturer:
CamGear
Manufacturer product number:
CMG-V35P-FLHEAD
Delivery time:
7 days
Camgear V35P EFP System
V35P EFP Fluid Head
Features
- Selectable 8 steps pan & tilt drag including zero position offer operators silky smooth movement and precise motion tracking and a shake-free shot
- Selectable 11 position counterbalance, thanks to newly featured 3 added position, it can do much finer adjustment for the cameras to reach the perfect balance
- Equipped with assembly lock mechanism, which ensures safe set-up of equipment
- Perfect solution for EFP and field-based HD production and studio application. It supports most portable broadcast cameras and camcorders in heavy configuration and studio applications with teleprompter or compact studio lens
- Quick-release mini Euro plate enables faster set-up of camera.
Technical data
- Model Number V35P
- Maximum Payload 45 kg
- Counterbalance Range 0-42 kg (at C.O.G 125 mm)
- Camera Platform Type Mini Euro plate (Camgear WP-5)
- Sliding Range 120 mm
- Camera Plate 1/4”, 3/8” screw
- Counterbalance System 11 steps (1-8 & 3 Adjusting levers)
- Pan & Tilt Drag 8 steps (1-8)
- Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
- Temperature Range -40°C to +60°C
- Levelling Bubble Illuminated Levelling Bubble
- Weight 7.03 kg
- Bowl Diameter 150 mm
V35P EFP GS CF
System Configuration
- V35P Fluid Head
- EFP150/CF2 2-Stage Carbon Fiber Heavy-Duty EFP Tripod
- 2 PB-2 Telescopic Pan Bars (Left & Right)
- GS-2 Ground Spreader
- Tripod Bag
Technical data
- Weight: 12.8 kg
- Maximum Height: 1.83 m
- Minimum Height: 0.75 m
- Transport Length: 0.99 m
- Section: 2 Stages
V35P EFP MS CF
System Configuration
- V35P Fluid Head
- EFP150/CF2 2-Stage Carbon Fiber Heavy-Duty EFP Tripod
- 2 PB-2 Telescopic Pan Bars (Left & Right)
- MSP-2 Mid Level Spreader
- RF-1 Rubber Feet (x3)
- Tripod Bag
Technical data
- Weight: 13.24 kg
- Maximum Height: 1.76 m
- Minimum Height: 0.79 m
- Transport Length: 0.99 m
- Section: 2 Stages
