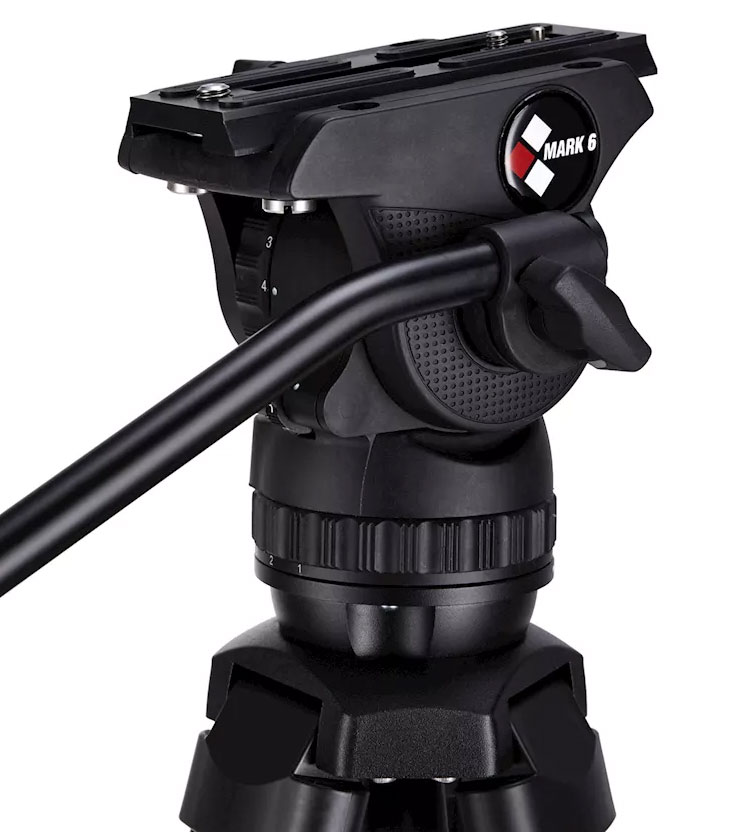

Camgear MARK 6 Fluid Head (75mm Bowl)
Product number:
SW29056.1
Manufacturer:
CamGear
Manufacturer product number:
CMG-M6-FLUID-HEAD
Delivery time:
1-3 days
Camgear MARK 6 System
Mark 6 Fluid Head
Features
- Real professional drag performance, selectable 4 positions pan & tilt drag including zero position, offer operators the silky smooth movement and precise framing
- Selectable 8 position counterbalance system including zero position for payloads between 0-10 kg
- With levelling bubble
- Ideal for DSLR configuration and lightweight camcorders
- Spare camera screws are placed on head
- 75 mm ball levelling, which can be converted to flat base
Technical data
- Model Number: MARK 6
- Maximum Payload:10 kg
- Counterbalance Range: 0-10 kg (at C.O.G 50 mm)
- Camera Platform Type: Sliding camera plate (Camgear SP-MARK)
- Sliding Range: 104 mm
- Camera Plate: 1/4”, 3/8” screw & pin
- Counterbalance System: 8 steps (1-8)
- Pan & Tilt Drag 4 steps: (1-4)
- Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
- Temperature Range: -40°C to +60°C
- Levelling Bubble: Yes
- Weight: 1.42 kg
- Bowl Diameter: 75 mm
MARK 6 GS CF
System Configuration
- MARK 6 Fluid Head
- MARK CF/GS2 2-Stage
- Carbon Fiber Tripod
- PB-MARK Pan Bar
- GS-MARK Ground Spreader
- Tripod Bag
Technical data
- Weight: 4.1 kg
- Height Range: 0.57-1.74 m
- Transport Length: 0.87 m
- Section: 2 Stage
MARK 6 GS AL
System Configuration
- MARK 6 Fluid Head
- MARK AL/GS2 2-Stage
- Aluminum Tripod
- PB-MARK Pan Bar
- GS-MARK Ground Spreader
- Tripod Bag
Technical data
- Weight: 4.7 kg
- Height Range: 0.57-1.74 m
- Transport Length: 0.87 m
- Section: 2 Stages
MARK 6 MS CF
System Configuration
- MARK 6 Fluid Head
- MARK CF/MS2 2-Stage
- Carbon Fiber Tripod
- PB-MARK Pan Bar
- MSP-MARK Mid Level Spreader
- RF-MARK Rubber Feet (x3)
- Tripod Bag
Technical data
- Weight: 3.9 kg
- Height Range: 0.79-1.69 m
- Transport Length: 0.84 m
- Section: 2 Stages
MARK 6 MS AL
System Configuration
- MARK 6 Fluid Head
- MARK AL/MS2 2-Stage
- Aluminum Tripod
- PB-MARK Pan Bar
- MSP-MARK Mid Level Spreader
- RF-MARK Rubber Feet (x3)
- Tripod Bag
Technical data
- Weight: 4.5 kg
- Height Range: 0.79-1.69 m
- Transport Length: 0.84 m
- Section: 2 Stages
