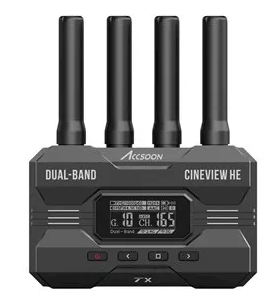

Accsoon CineView HEAccsoon CineView HE is an HDMI Dual-Band long range wireless camera transmitter and receiver kit featuring a new USB-C port on receiver for live streaming directly (UVC). It transmits HD video and HQ audio to up to 4 devices (its receiver, mobile phone, iPad, and even MacBook with the newest M1 chip) through Accsoon’s uniquely patent Dual-Band (2.4GHz + 5GHz) transmission technology. And its brand new USB-C port on the receiver will provides creators, live streamers, and podcasters with much more power to display their work or life through live streaming. Transmitter dataVideo Input: HDMIHDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fpsHDMI Output Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fpsDC Port: 5.5mm x 2.1mm center positiveDC Voltage: 7.4~16.8V =Audio: 44.1KHz/48KHz 16bit/24bit PCMLatency: <0.06s (Camera latency not included)OLED Display: 1.3inchTransmission Power: 17~20dBmTransmission Range: 1200ft (No obstacles, no interference)Power Consumption: 4.5Watt (Typical)Operating Environment Temperature: -10°C~40°CDimensions: 105mm x 66mm x 32mm (Antennas not included)Weight: 200g (Antennas included) Receiver dataVideo Output: HDMIHDMI Output Format: 1080p 24/25/30/50/60fpsDC Port: 5.5mm x 2.1mm center positiveDC Voltage: 7.4~16.8VOLED Display: 1.3inchPower Consumption: 4.2Watt (Typical)Operating Environment Temperature: -10°C~40°CDimensions: 105mm x 66mm x 32mm (Antennas not included)Weight: 200g (Antennas included)

Accsoon CineView NanoAccsoon CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time.The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms. Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/ RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of accessTechnical dataVideo Input: HDMI Video Output: 1080p 23.98/24/25/29.97/30/50/59.94/60fps Audio: 44.1KHz/48KHz 16bit/24bit // PCM via HDMI Latency: ＜0.06s (Camera latency not included) Transmission power: 17~20dBm Transmission range: 500ft (No obstaclesno interference)Power consumption: 2.5 Watt (Without charging other devices) Operating Environment Temperature: -10~40°C Dimension: 76mm × 113mm × 20mm Weight: 72.3gBox includes1x Transmitter1x Phone Clamp1x Cold shoe mount adapter1x RS2/3 Pro Gimbal Adapter1x User manual

Accsoon SeeMo 4KAccsoon SeeMo 4K is a portable HDMI to USB video transmitter that converts and transmits the HDMI video source from a camera to an iPhone or iPad via a USB cable. Featuring H.264 video compression, SeeMo 4K supports up to 4K 30fps video input and output and the bitrate can be adjusted up to visually lossless image quality With Accsoon SEE App, you can easily transform your iPhone or iPad into a professional monitor. With a ton of features like professional monitoring functions, live streaming, audio & video recording, Accsoon SEE App provides an easy way to achieve low-cost monitoring, recording and streaming. Compact. Low power draw. Accsoon SeeMo 4K is the ideal solution for monitoring / recording / streaming / sharing

TERADEK Ace 750 TXSKU: 10-2241Ace 750 TX is a lightweight, compact, HDMI wireless video transmitter with built-in antennas that is designed to be used with mirrorless cameras, camcorders, action cameras, and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. TERADEK Ace 750 TX is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 TX features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate. In the box1 x Ace 750 Transmitter1 x Hot Shoe Adaptor1 x Ultra Thin HDMI Male Type A - HDMI Male Type A - 18in Cable1 x PTap to r/a barrel - 18in Cable

Teradek Bolt 6 Monitor Module 1500 TX The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set. Key features of the Bolt 6 TX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers. With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment. The Bolt 6 TX Monitor Module is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models). In the box 1 x Bolt 6 Monitor Module 1500 TX 1 x Hex L key 3/16" x 2 13/16" length 1 x Hex L key 2mm size 3-3/8" length 1 x Screw Socket Head Black 1/4-20 x 3/8" length 2 x Screw Socket Head Low Profile Black Oxide M 3 x 20mm2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA 1 x Lightstand Adapter 1/4-20in 1 x HDMI Adapter Bolt 4K TX Monitor Module

Teradek Bolt 6 Monitor Module 750 TX The Bolt 6 TX Monitor Module is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Send color-accurate, 4K HDR videos in under 0.001 seconds.The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set. In the box 1 x Bolt 6 Monitor Module 750 TX 1 x Hex L key 3/16" x 2 13/16" length 1 x Hex L key 2mm size 3-3/8" length 1 x Screw Socket Head Black 1/4-20 x 3/8" length 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA 1 x Lightstand Adapter 1/4-20in 1 x HDMI Adapter Bolt 4K TX Monitor Module
