C7Adapters Arri LPL - Fuji GFX lens mount adapter LPL-G-B
Product number:
SW28694.1
Manufacturer:
C7Adapters
Manufacturer product number:
LPL-G-B
Delivery time:
1-3 days

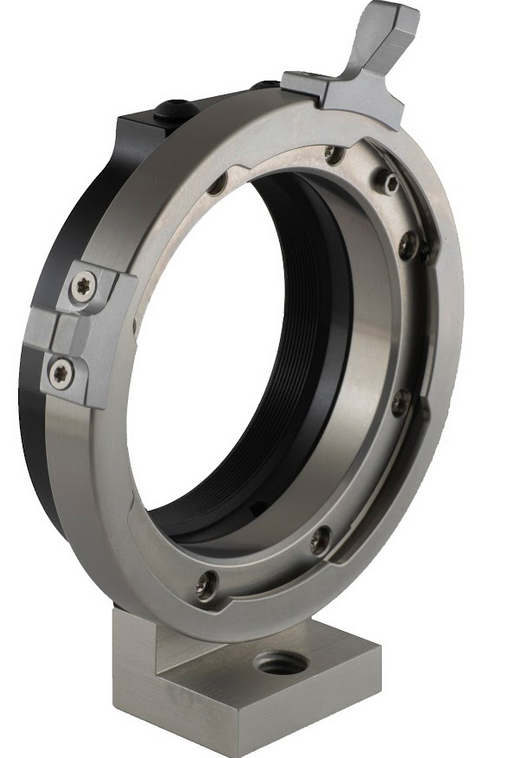

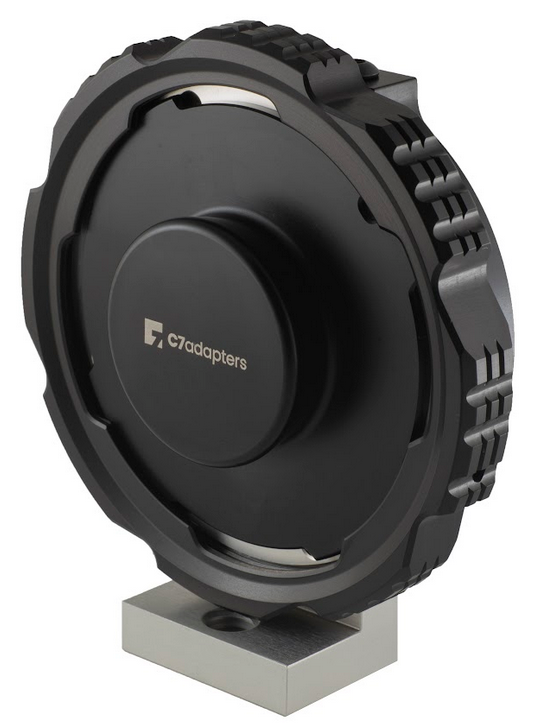

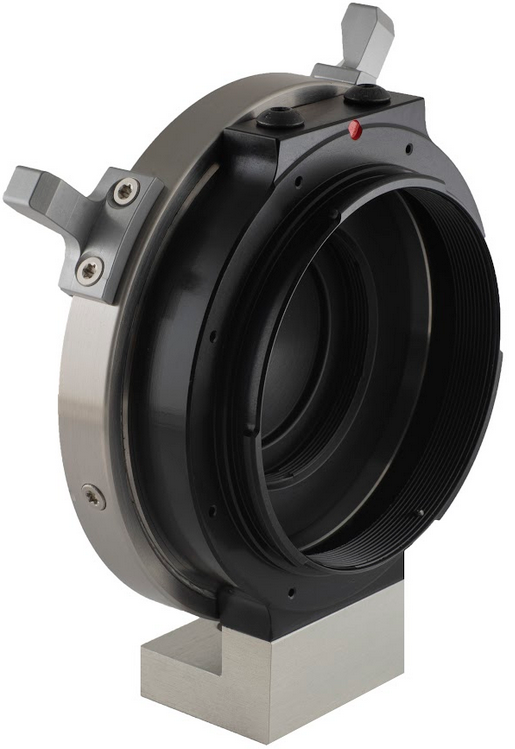

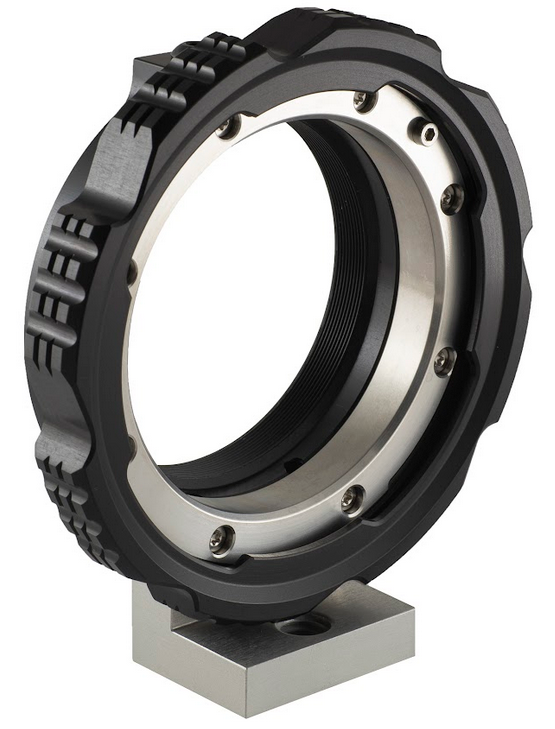

C7Adapters Arri LPL - Fuji GFX
This adapter allows to use LPL mount lenses on Fuji G-mount cameras.
Main features
- Adjustable flange focal distance
- Stainless steel LPL mount flange
- Support foot with 1/4" and 3/8" mounting points
- 0,005mm accuracy
- Infinity focusing
- Made of aircraft grade alloy and stainless steel
- Black anodized
- Made in UE
- Weight (without LPL cap) - 376 g
Comaptible with
- GFX 100, GFX100 II
- GFX 50S, GFX 50R
- GFX 100S
Details of the manufacturer
- Foto-Akcesoria Ryszard Jankowski
- Ryszard Jankowski
- ul. Cisowa 9
- 20-703 Lublin, Poland, EU
+48 695 748 890
