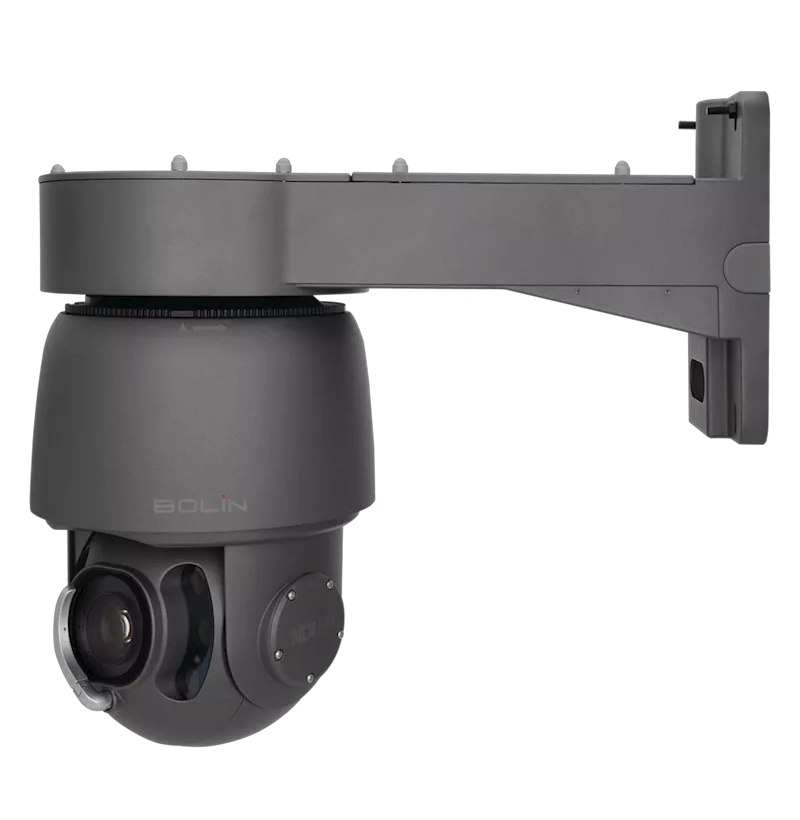

Bolin SD5 NDI Outdoor PTZ Camera Full HD 30x GREY

BirdDog O4 Outdoor CameraThe BirdDog O4 is the outdoor PTZ built for real-world deployments. Its die-cast, IP66-rated body runs from –40 °C to +60 °C and includes a heater and hydrophobic lens coatings to keep optics clear in rain, dust, or snow. Capture sharp, color-accurate 4K60 on a 1/1.8" sensor and frame the action from afar with 30× optical zoom (60× in HD).When light disappears, a precision 500 m IR laser and B/W night mode maintain visibility. Installation is fast and tidy: all I/O sits inside a sealed undercarriage with strain relief and three weatherproof flanges; power with PoE++ or external DC. O4 streams Full NDI® and NDI® HX3 simultaneously, and can output NDI plus SRT/RTMP/RTSP at the same time. With 12G-SDI, HDMI, and SFP+ fiber, plus adjustable AI tracking profiles, O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.FeaturesIP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heaterHydrophobic, smudge-resistant front glass for clear optics without wipers30× optical zoom (60× in HD) for long-range framing500 m infrared laser night vision with automatic B/W mode and IR cut filters1/1.8" CMOS sensor capturing 4K60 with wide dynamic rangeSimultaneous Full NDI® and NDI® HX3 streamingDual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installsSealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC powerAdjustable AI autotracking (fast for sports, smooth for events) via BirdUITechnical dataIMAGINGImaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HDLens: f=6.9mm~215mmOptical Zoom: Optical 30x (4k) – 60x (HD), 8x DigitalHorizontal angle of view: 60°~2°Vertical angle of view: 34°~1.1°Diagonal angle of view: 67°~2.3°Aperture: f1.35~f4.6Focus: Auto (Global/Centre/Upper/Lower/Left/Right), ManualExposure: Auto, Manual Shutter Priority, Iris Priority, Brightness PriorityExposure Metering: Average, Centre, Top, Bottom, Left, RightBacklight Compensation: YesExposure Compensation: YesFlicker Reduction: Outdoor / 50Hz / 60HzWhite Balance: Auto / One Push / Indoor / Outdoor / Manual / Color TemperatureDigital Noise Reduction: 2D/3D Noise ReductionSNR: >50dBEffective Pixels: 8.4MPHDR: Supported, REC.2020 Colour SpaceVideo Format2160p @ 60/59.94/50/30/29.97/25fps1080p @ 60/59.94/50/30/29.97/25fps1080i @ 60,59.94,50fps720p @ 30/29.97/25fpsMECHANICALPan/Tilt rotation: ±170°, -30° ~ +90°Pan Control Speed: 0.05-90°/secTilt Control Speed: 0.05-90°/secPreset Number: 255 PresetsIR Laser: Included, 500m illumination distanceFreeD Support: Included, UDP and Embedded in NDI StreamIntegrated Heater: IncludedGlass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coatingAI FUNCTIONSAI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone TrackingAI Gesture Control: SupportedI/O INTERFACEVideo Output Interfaces: 12G-SDI, RJ-45Video Compression Formats: h.264, h.265, NDI High BandwidthAudio I/O: Stereo Unbalanced 1/4” TRS Input/OutputNetwork Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++Encoder Network Protocols: NDI®|HX2, NDI®|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked via Dante Activator)Control Interfaces: Ethernet, SerialControl Protocols: NDI, VISCA-IPAPI Control: BirdDog RESTful API 2.0GENERALInput Voltage: DC 24V, PoE++Input Current: 1.2APower Consumption: 40W Max.Operating Temperature: -40°C ~ +60°CIP Rating: IP66Dimensions (W*H*D): 200 x 330 x 226 mmWeight: 7.6 kg

BirdDog O4 Outdoor CameraThe BirdDog O4 is the outdoor PTZ built for real-world deployments. Its die-cast, IP66-rated body runs from –40 °C to +60 °C and includes a heater and hydrophobic lens coatings to keep optics clear in rain, dust, or snow. Capture sharp, color-accurate 4K60 on a 1/1.8" sensor and frame the action from afar with 30× optical zoom (60× in HD).When light disappears, a precision 500 m IR laser and B/W night mode maintain visibility. Installation is fast and tidy: all I/O sits inside a sealed undercarriage with strain relief and three weatherproof flanges; power with PoE++ or external DC. O4 streams Full NDI® and NDI® HX3 simultaneously, and can output NDI plus SRT/RTMP/RTSP at the same time. With 12G-SDI, HDMI, and SFP+ fiber, plus adjustable AI tracking profiles, O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.FeaturesIP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heaterHydrophobic, smudge-resistant front glass for clear optics without wipers30× optical zoom (60× in HD) for long-range framing500 m infrared laser night vision with automatic B/W mode and IR cut filters1/1.8" CMOS sensor capturing 4K60 with wide dynamic rangeSimultaneous Full NDI® and NDI® HX3 streamingDual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installsSealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC powerAdjustable AI autotracking (fast for sports, smooth for events) via BirdUITechnical dataIMAGINGImaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HDLens: f=6.9mm~215mmOptical Zoom: Optical 30x (4k) – 60x (HD), 8x DigitalHorizontal angle of view: 60°~2°Vertical angle of view: 34°~1.1°Diagonal angle of view: 67°~2.3°Aperture: f1.35~f4.6Focus: Auto (Global/Centre/Upper/Lower/Left/Right), ManualExposure: Auto, Manual Shutter Priority, Iris Priority, Brightness PriorityExposure Metering: Average, Centre, Top, Bottom, Left, RightBacklight Compensation: YesExposure Compensation: YesFlicker Reduction: Outdoor / 50Hz / 60HzWhite Balance: Auto / One Push / Indoor / Outdoor / Manual / Color TemperatureDigital Noise Reduction: 2D/3D Noise ReductionSNR: >50dBEffective Pixels: 8.4MPHDR: Supported, REC.2020 Colour SpaceVideo Format2160p @ 60/59.94/50/30/29.97/25fps1080p @ 60/59.94/50/30/29.97/25fps1080i @ 60,59.94,50fps720p @ 30/29.97/25fpsMECHANICALPan/Tilt rotation: ±170°, -30° ~ +90°Pan Control Speed: 0.05-90°/secTilt Control Speed: 0.05-90°/secPreset Number: 255 PresetsIR Laser: Included, 500m illumination distanceFreeD Support: Included, UDP and Embedded in NDI StreamIntegrated Heater: IncludedGlass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coatingAI FUNCTIONSAI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone TrackingAI Gesture Control: SupportedI/O INTERFACEVideo Output Interfaces: 12G-SDI, RJ-45Video Compression Formats: h.264, h.265, NDI High BandwidthAudio I/O: Stereo Unbalanced 1/4” TRS Input/OutputNetwork Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++Encoder Network Protocols: NDI®|HX2, NDI®|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked via Dante Activator)Control Interfaces: Ethernet, SerialControl Protocols: NDI, VISCA-IPAPI Control: BirdDog RESTful API 2.0GENERALInput Voltage: DC 24V, PoE++Input Current: 1.2APower Consumption: 40W Max.Operating Temperature: -40°C ~ +60°CIP Rating: IP66Dimensions (W*H*D): 200 x 330 x 226 mmWeight: 7.6 kg

Bolin 30x Zoom Outdoor (IP67) Full HD NDI HX3 PTZ CameraReliable Full HD Performance for Harsh Outdoor Environments.Equipped with a Sony 1/2.8" STARVIS II sensor and advanced image processing, this camera excels in challenging lighting conditions while maintaining true-to-life colors and smooth, precise camera movement. Its rugged IP67-rated housing is nitrogen-filled to prevent lens fogging and features a built-in rain wiper and heater, ensuring uninterrupted performance in rain, snow, and extreme temperatures. The camera’s upright mounting capability offers 360-degree upper skyview, making it ideal for versatile outdoor setups.Key FeaturesFull HD 1080p Video – Crisp, broadcast-quality imagery with enhanced low-light sensitivity30x High-Resolution Optical Zoom – Capture distant details with remarkable claritySony STARVIS II Sensor – Exceptional color fidelity and low noise at minimal illumination (0.009 lx)IP67 Weatherproof Housing – Dust-tight, waterproof, and temperature-resistant for all-weather reliabilityNitrogen-Filled Enclosure & Rain Wiper – Prevents lens fogging and keeps glass clearSuper Image Stabilization Plus – Minimizes vibration and motion blur in windy, unstable conditionsMechanical Roll-Axis Adjustment – Up to 15° tilt for flexible mounting and framing optionsCertified NDI HX3, 3G-SDI & IP Streaming – Multiple outputs for seamless broadcast and AV-over-IP workflowsNDI Embedded Bridge (NDI 6) – Enables low-latency video transmission for remote and multi-venue productionsFreeD Protocol Support – Real-time AR/VR tracking integration for immersive virtual productionsAdvanced AF/AE/AWB – Intelligent autofocus, auto exposure, and auto white balance for consistent image qualityBuilt to perform in the toughest outdoor conditions, the Bolin-EX10 combines rugged durability, advanced imaging technology, and versatile connectivity, making it the ideal solution for broadcast professionals demanding clear, stable video in any environment.

Bolin 30x Zoom Outdoor (IP67) Full HD NDI HX3 PTZ CameraReliable Full HD Performance for Harsh Outdoor Environments.Equipped with a Sony 1/2.8" STARVIS II sensor and advanced image processing, this camera excels in challenging lighting conditions while maintaining true-to-life colors and smooth, precise camera movement. Its rugged IP67-rated housing is nitrogen-filled to prevent lens fogging and features a built-in rain wiper and heater, ensuring uninterrupted performance in rain, snow, and extreme temperatures. The camera’s upright mounting capability offers 360-degree upper skyview, making it ideal for versatile outdoor setups.Key FeaturesFull HD 1080p Video – Crisp, broadcast-quality imagery with enhanced low-light sensitivity30x High-Resolution Optical Zoom – Capture distant details with remarkable claritySony STARVIS II Sensor – Exceptional color fidelity and low noise at minimal illumination (0.009 lx)IP67 Weatherproof Housing – Dust-tight, waterproof, and temperature-resistant for all-weather reliabilityNitrogen-Filled Enclosure & Rain Wiper – Prevents lens fogging and keeps glass clearSuper Image Stabilization Plus – Minimizes vibration and motion blur in windy, unstable conditionsMechanical Roll-Axis Adjustment – Up to 15° tilt for flexible mounting and framing optionsCertified NDI HX3, 3G-SDI & IP Streaming – Multiple outputs for seamless broadcast and AV-over-IP workflowsNDI Embedded Bridge (NDI 6) – Enables low-latency video transmission for remote and multi-venue productionsFreeD Protocol Support – Real-time AR/VR tracking integration for immersive virtual productionsAdvanced AF/AE/AWB – Intelligent autofocus, auto exposure, and auto white balance for consistent image qualityBuilt to perform in the toughest outdoor conditions, the Bolin-EX10 combines rugged durability, advanced imaging technology, and versatile connectivity, making it the ideal solution for broadcast professionals demanding clear, stable video in any environment.
