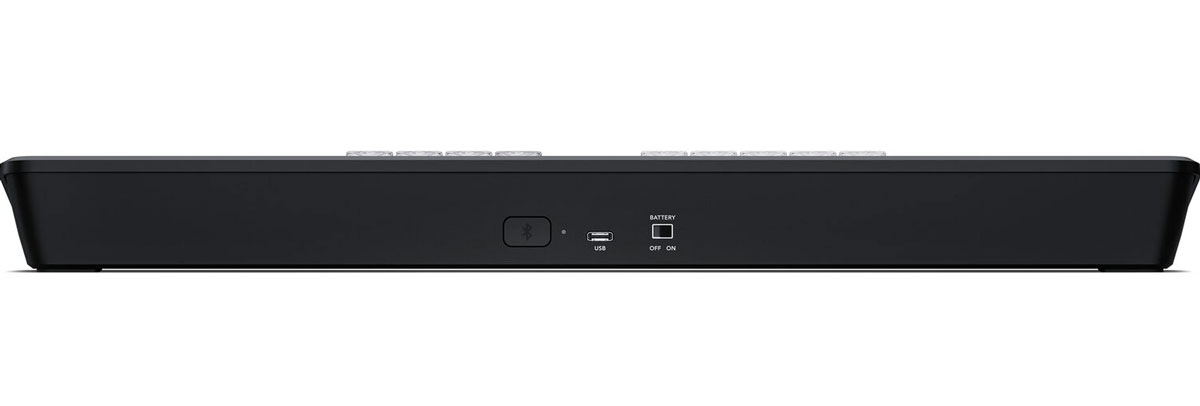

Blackmagic ATEM Micro Panel
Blackmagic ATEM Micro Panel
The ATEM Micro Panel is a low cost solution for adding panel control to ATEM Software control. Featuring the same high end buttons as ATEM Advanced Panels you get a true broadcast quality feel. It also has a familiar layout with buttons for program and preview. You can use the shift buttons to access up to 20 sources. There are 4 upstream and 2 downstream key buttons, plus a macro button. It even has 4 M/E buttons so you can control a massive 4 M/E switcher! There’s a fader for smooth manual transition control, which also means it’s low profile and very portable. With connection via USB-C or Bluetooth and a large internal battery, Blackmagic ATEM Micro Panel is perfect when you need a portable panel!
- Number of Mix Effects Rows: 1
- Direct Cross Points: 10
- Shifted Cross Points: 20
- Crosspoint Button Type: Tri-Color LED
- Preview Transition: 1
- Switching Type Buttons: CUT and AUTO
- Transition Type Buttons: DIP, DVE, STINGER, MIX, WIPE
- M/E Select Buttons: 4
- Upstream Key Buttons: 4 with ON/OFF
- Downstream Key Buttons: 2 with ON/OFF
- Transition Slider: 1
- Power Supply: Internal battery with power switch / USB-C port for external power supply and battery charging
- Power Usage: 3 W max
