Blackmagic 2110 IP Mini BiDirect 12G
Product number:
SW28078
Manufacturer:
Blackmagic Design
EAN:
9338716009033
Manufacturer product number:
ONVNVIPF/IP/12G
Delivery time:
1-3 days

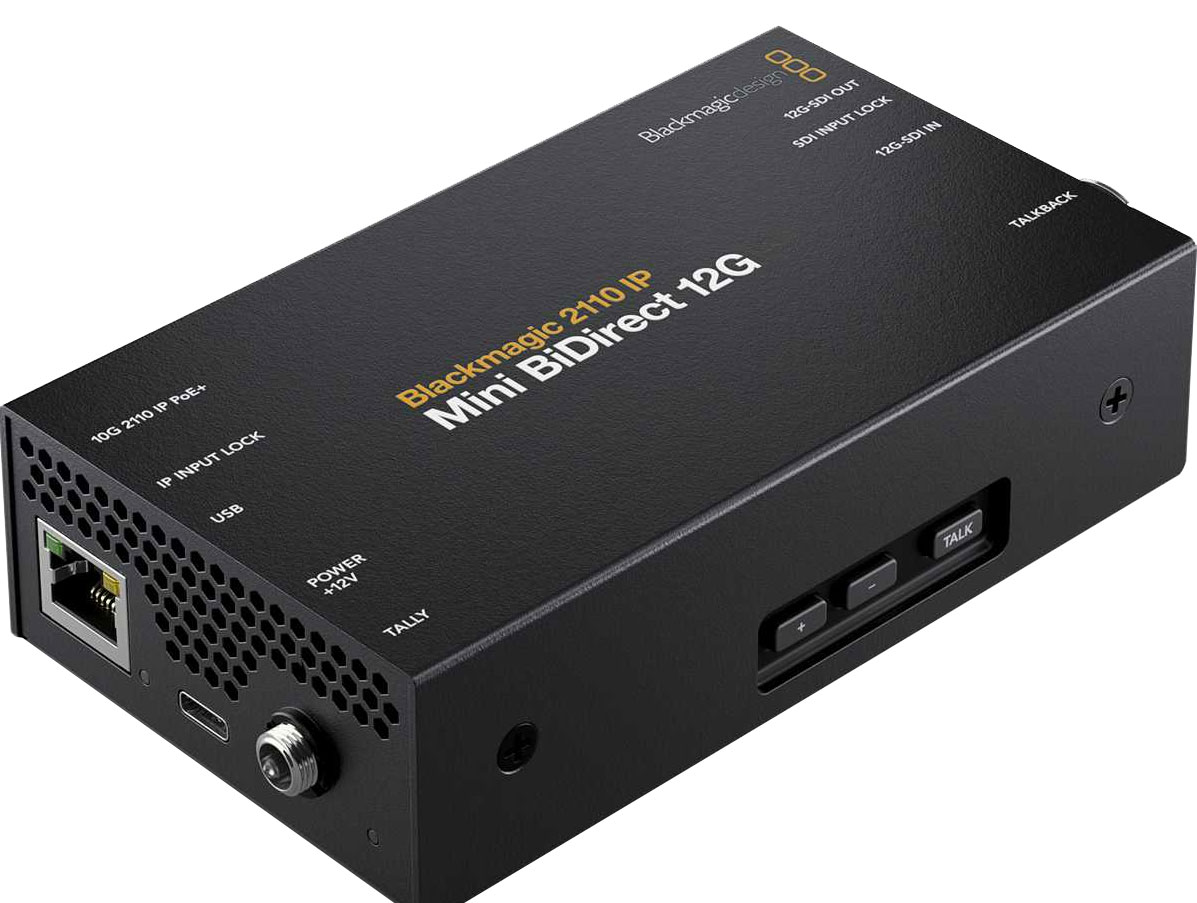

Blackmagic 2110 IP Mini BiDirect 12G
SKU: ONVNVIPF/IP/12G
Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. It connects and powers from 10G Ethernet or the included DC power supply.
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
- SMPTE ST-2110 IP Video Inputs/Outputs: 1 x 10G Ethernet
- Analog Audio Inputs: 1 x 5 pin XLR Talkback
- Analog Audio Outputs: 1 x 5 pin XLR Talkback
- SDI Audio Inputs: 16 Ch embedded audio on SDI input
- SDI Audio Outputs: 16 Ch embedded audio on SDI loop output
- SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
- SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
- Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K
- Reclocking: Yes
- Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates
- Computer Interface: 2 x USB-C 3.1 Gen 1 (up to 5 Gb/s) for configuration and firmware updates
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
- SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output
- SMPTE 2110-20 (Uncompressed Video): IGMP v2
- SMPTE 2110-21 (Traffic Shaping): Sender: Narrow / Receiver: Narrow, Wide Synchronous, vocas.nl Asynchronous
- SMPTE 2110-30 (PCM): Audio Conformance level: Level C
- SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
- Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video
- Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
- NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS‑SD
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
- LED Indicators: 1 x IP Input Lock LED indicator light, 1 x SDI Input Lock LED indicator light, 1 x Tally LED indicator light
- Control: Talkback button controls for Volume Up, Volume Down and Push to Talk
- Talkback: 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video
- Live Tally Indicator: Tally LED indicator light
- Operating Systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11
- Power Supply: 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries / 1 x RJ45 Ethernet connector for power from PoE++ power supplies
- Operational Voltage Range: 12 - 16 V
- Power Usage: 18W
- Operating Temperature: 5° to 40° C
- Storage Temperature: -20° to 45° C
- Relative Humidity: 0% to 90% non‑condensing
Details of the manufacturer
- Blackmagic Design Pty Ltd
- Grant Petty
- 180 Bank Street
- South Melbourne, 3205, Victoria, Australia
+613 96824770
info-europe@blackmagicdesign.com
Details of the person responsible for putting the product on the European market
- Blackmagic Design PTY
- Rijnlanderweg 766D
- 2132NM Amsterdam, The Netherlands
