BirdDog O4 Outdoor Camera WHITE

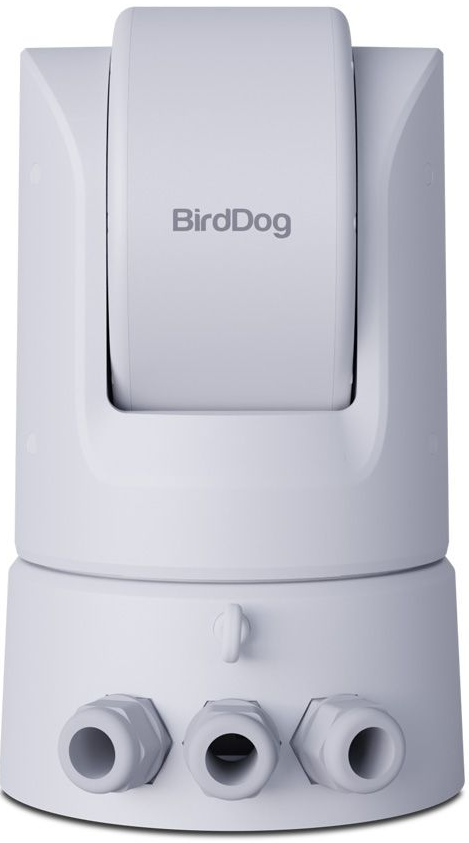

BirdDog O4 Outdoor Camera

The BirdDog O4 is the outdoor PTZ built for real-world deployments. Its die-cast, IP66-rated body runs from –40 °C to +60 °C and includes a heater and hydrophobic lens coatings to keep optics clear in rain, dust, or snow. Capture sharp, color-accurate 4K60 on a 1/1.8" sensor and frame the action from afar with 30× optical zoom (60× in HD).

When light disappears, a precision 500 m IR laser and B/W night mode maintain visibility. Installation is fast and tidy: all I/O sits inside a sealed undercarriage with strain relief and three weatherproof flanges; power with PoE++ or external DC. O4 streams Full NDI® and NDI® HX3 simultaneously, and can output NDI plus SRT/RTMP/RTSP at the same time. With 12G-SDI, HDMI, and SFP+ fiber, plus adjustable AI tracking profiles, O4 integrates into IP, hybrid, and baseband workflows with broadcast confidence.

Features

• IP66 weatherproof housing with –40 °C to +60 °C operating range and built-in heater
• Hydrophobic, smudge-resistant front glass for clear optics without wipers
• 30× optical zoom (60× in HD) for long-range framing
• 500 m infrared laser night vision with automatic B/W mode and IR cut filters
• 1/1.8" CMOS sensor capturing 4K60 with wide dynamic range
• Simultaneous Full NDI® and NDI® HX3 streaming
• Dual streaming options: deliver NDI plus SRT/RTMP/RTSP concurrently
• 12G-SDI, HDMI, and SFP+ (fiber) for IP, hybrid, and baseband installs
• Sealed undercarriage cabling with three weatherproof flanges and strain relief; PoE++ or DC power
• Adjustable AI autotracking (fast for sports, smooth for events) via BirdUI

Technical data

IMAGING

• Imaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
• Lens: f=6.9mm~215mm
• Optical Zoom: Optical 30x (4k) – 60x (HD), 8x Digital
• Horizontal angle of view: 60°~2°
• Vertical angle of view: 34°~1.1°
• Diagonal angle of view: 67°~2.3°
• Aperture: f1.35~f4.6
• Focus: Auto (Global/Centre/Upper/Lower/Left/Right), Manual
• Exposure: Auto, Manual Shutter Priority, Iris Priority, Brightness Priority
• Exposure Metering: Average, Centre, Top, Bottom, Left, Right
• Backlight Compensation: Yes
• Exposure Compensation: Yes
• Flicker Reduction: Outdoor / 50Hz / 60Hz
• White Balance: Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
• Digital Noise Reduction: 2D/3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 8.4MP
• HDR: Supported, REC.2020 Colour Space

Video Format

• 2160p @ 60/59.94/50/30/29.97/25fps
• 1080p @ 60/59.94/50/30/29.97/25fps
• 1080i @ 60,59.94,50fps
• 720p @ 30/29.97/25fps

MECHANICAL

• Pan/Tilt rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 0.05-90°/sec
• Tilt Control Speed: 0.05-90°/sec
• Preset Number: 255 Presets
• IR Laser: Included, 500m illumination distance
• FreeD Support: Included, UDP and Embedded in NDI Stream
• Integrated Heater: Included
• Glass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating

AI FUNCTIONS

• AI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage Tracking, Zone Tracking
• AI Gesture Control: Supported

I/O INTERFACE

• Video Output Interfaces: 12G-SDI, RJ-45
• Video Compression Formats: h.264, h.265, NDI High Bandwidth
• Audio I/O: Stereo Unbalanced 1/4” TRS Input/Output
• Network Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++
• Encoder Network Protocols: NDI®|HX2, NDI®|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H (unlocked via Dante Activator)
• Control Interfaces: Ethernet, Serial
• Control Protocols: NDI, VISCA-IP
• API Control: BirdDog RESTful API 2.0

GENERAL

• Input Voltage: DC 24V, PoE++
• Input Current: 1.2A
• Power Consumption: 40W Max.
• Operating Temperature: -40°C ~ +60°C
• IP Rating: IP66
• Dimensions (W*H*D): 200 x 330 x 226 mm
• Weight: 7.6 kg
