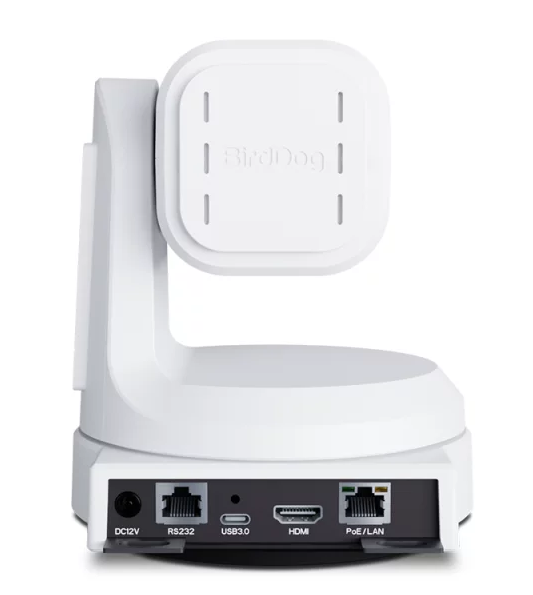

BirdDog Max WHITE BDMAX-W

BirdDog Max

BirdDog MAX, the PTZ camera that turns every meeting into a professional-grade production. Whether you're using it as a webcam for Zoom and Teams or integrating it into an NDI workflow, MAX brings broadcast-quality video to your business. Designed to impress, it offers smooth, cinematic movement and sharp, vibrant images, making your meetings look like they’re straight out of a TV studio. With its best-in-class wide-angle lens, MAX is perfect for rooms of any size.

Highlights

• Widest Angle of View: 90º diagonal! It doesn’t matter the room size, MAX will capture everything
• Closing the gap between webcams and PTZs: Versatility as its best. MAX effortlessly transitions between roles, functioning as both a high-quality webcam and a powerful production camera. Thanks to its HDMI and NDI outputs, you can integrate MAX into any workflow
• Sustainably: Designed with the planet in mind. MAX is built using ocean-bound plastics (OBP) and operates with remarkably low power consumption. By choosing MAX, you're also making an eco-conscious choice that helps protect our planet
• Elegant Design That Fits Any Space: MAX isn’t just a powerhouse of performance, it’s also a work of art. MAX enhances the aesthetic of any space, blending in perfectly with your room’s architecture without drawing unnecessary attention. It’s a camera that looks as good as it performs
• Affordable Excellence: One of MAX’s most impressive qualities is its price-to-performance ratio. MAX makes premium video production accessible to all. You don’t have to choose between a basic webcam or a costly production camera. MAX gives you both!
• MAX working with Pod: Simplifying multi-source conferencing. Pod lets you easily select MAX cameras or other NDI-connected devices with a simple click, then outputs via USB-C to seamlessly switch sources directly into Teams, Zoom, and more.

Technical data

IMAGING

• Image Sensor: Sony 1/2.8'' CMOS - ULTRA HD
• Lens: f=3.42-40.02mm
• Optical Zoom: 12x
• Horizontal angle of view: 80.56(W)-7.89°(T)
• Vertical angle of view: 49.61°(W)-4.46°(T)
• Diagonal angle of view: 89.51°(W)-9.04°(T)
• Aperture: F1.88-3.77
• Focus: Auto, Manual
• Exposure: Auto, Shutter Priority, Iris Priority, Manual
• Backlight Compensation: Yes
• Digital Noise Reduction: 2D and 3D Noise Reduction
• SNR: ≥50dB
• Effective Pixels: 8.29 MP

Video Format

• HDMI: 2160p30、1080p60/59.94/50/30/29.97/25、720p60/50/59.94/30
• NDI: 2160p30/29.97/25、1080p30/29.97/25/23.98

MECHANICAL

• Pan/Tilt Rotation: ±175°, -90° ~ +90°
• Pan Control Speed: 0.1 -80°/sec
• Tilt Control Speed: 0.1 -60°/sec
• Preset Number: 255 presets

I/O INTERFACE

• Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
• Video Compression Formats: H.264, H.265
• Network Interfaces: 100M adaptive Ethernet port; POE IEEE 802.3af
• Encoder Network Protocols: NDI|HX2, NDI|HX3, RTSP, RTMP
• Control Interfaces: 10M/100M Ethernet, RS232 (input & output), RS485, TYPE-C(UVC1.1)
• Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI

GENERAL

• Input Voltage: DC 12V, POE IEEE 802.3af
• Input Current: 2.0A (Max)
• Power Consumption: 13W (Max)
• Working Temperature: 0ºC ~ +40ºC
• Working Humidity: 20% ~ 80%
• Dimension (W*H*D): 171.6*192.6*171.6 mm / 260*217*197 mm (before/after packing)
• Net and Gross Weight: 1.43 kg/2.096 kg (Net/Gross weight)

What's in the box

•  1x BirdDog MAX
• 1x PTZ Camera Remote Controller
• 1x DC 12V PSU
• 1x Silicon number for camera rear
• 1x USB cable
