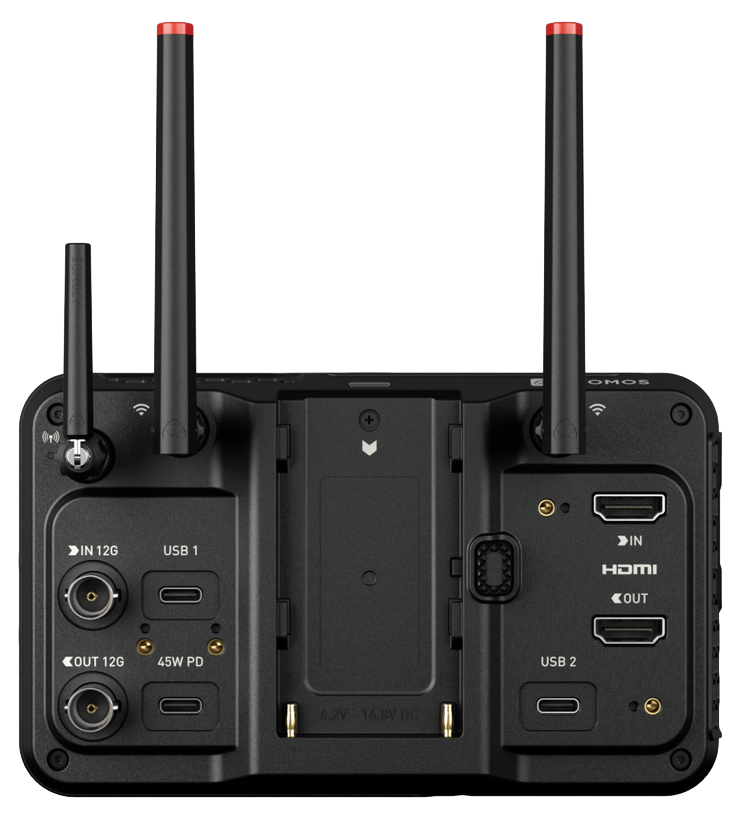

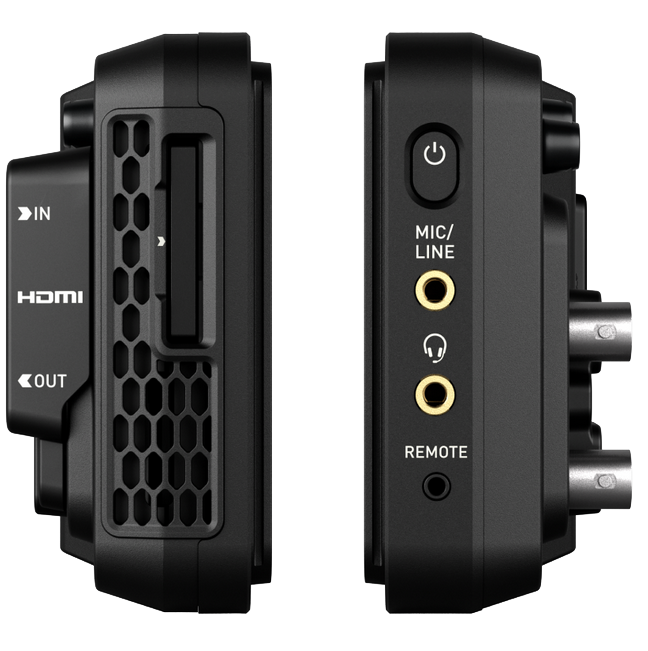

ATOMOS Ninja TX SDI/HDMI HDR monitor-recorder

ATOMOS Ninja TX

SKU: ATOMNJTX01

The Atomos Ninja TX sets a new standard in monitor-recorders, combining the trusted Ninja design with advanced features built for the future of production. With 12G-SDI and HDMI 2.0 inputs and outputs, support for up to 8K ProRes RAW, and integrated cloud workflows, Ninja TX is designed to meet the demands of professional filmmakers, broadcasters, and content creators.

Features

• Record in Apple ProRes/RAW up to 8Kp30
• HDMI 2.0 and 12G-SDI I/O with loop-through support
• Capture to CFexpress Type B or external USB-C storage
• Integrated NDI 6 HX3 TX/RX for broadcast workflows
• Built-in Wi-Fi 6E for cloud upload and timecode sync
• Improved cooling with significantly less fan noise and better overall performance
• AirGlu timecode over RF and Bluetooth
• 1500nit daylight-viewable HDR display
• Powered via USB-C PD, NP-F battery, or AC adaptor
• Includes locking HDMI and USB-C cable adaptors

Technical data

• Dimensions (W x H x D mm): 151mm x 92mm x 36mm
• Weight: 400gms
• Mount points: 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom

Environmental

• Ambient operating temperature: Up to 40 degrees Celsius

Construction

• Body: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink

Power

• Input voltage: 6.2V to 16.8V DC
• Operating power: Up to 30W
• Multi-function button: Power / lock screen
• Continuous power: Via NP-F battery or USB-C PD Power
• DC in connector: Via Battery Eliminator (optional)
• DTAP: Up to 13W
• USB PD IN: 45W capable, power supply required
• USB PD OUT: Up to 13W

Display

• Size: 5.2-inch
• Resolution: 1920 x 1080
• Backlight Type: Edge lit
• Brightness (cdm2 / Nits): 1500
• Aspect ratio: 16:9
• Color Gamut: Rec.709
• Calibration support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable

Color Pipeline

• Gamma Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
• Gamut BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube format
• 3D LUT Down Stream: Loop out
• 3DLUT 50/50: Yes
• Monitoring Modes: Native / HLG / PQ / 3D LUT
• HDR Output Conversion: Log / HDR to HLG / PQ

Video Input

• HDMI: 1 x HDMI (2.0) up to 4K60P + RAW
• Locking port: Optional
• SDI: 12G
• Wi-Fi: Wi-Fi 6E
• USB: 2 x USB-C 2.0/3.0
• Bit Depth: 8/10-bit video
• Video Chroma Subsampling: 4:2:2

Video Output

• HDMI: 1 x HDMI (2.0) up to 4K60P
• Locking port: Optional
• SDI: 12G
• Wi-Fi: Wi-Fi 6E
• USB: 2 x USB-C 2.0/3.0
• Bit Depth: 8/10-bit video
• Video Chroma Subsampling: 4:2:2

Metadata

• HDMI: RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut

Network

• Wi-Fi: Wi-Fi 6E
• USB: 2 x USB-C 3.0

Connectivity

• Bluetooth: Yes
• LANC: Yes

Video Signal Conversion

• HDMI to SDI: Yes
• SDI to HDMI: Yes

Audio In/Out

• HDMI: 8-channel, 24-bit
• SDI: 12-channel, 24-bit
• Analogue Audio Line In: 3.5mm headphone jack, 2-channel input
• Headphone Out: 3.5mm headphone jack, 2-channel

Timecode

• Embedded: HDMI & SDI
• Time of day: Yes
• Reference / Genlock input: No
• LTC: No
• Wireless AirGlu RF Server and Client: Yes
• Wireless AirGlu BT Server: Yes

Resolution & Frame Rates (Record, Monitor & Playback)

• RAW: Up to 6Kp60/8Kp30
• 4K DCI: 23.98/24/25/29.9/30/50/59.94/60p
• 4K UHD: 23.98/24/25/29.9/30/50/59.94/60p
• 2K DCI 2048 x 1080: Yes
• 1080p: 23.98/24/25/29.9/30/50/59.94/60/100/120p
• 1080: PsF Converted to P and looped out PsF
• 1080i: 50/59.94/60i
• 720p: 50/59.94/60p

Supported Media

• CF Express: Atomos certified CF Express type B media
• USB: Atomos certified USB 3.0 media
• File System: ExFAT

Codecs

• Apple ProRes RAW: ProRes RAW, ProRes RAW HQ
• Apple ProRes: LT, 422, 422 HQ
• Avid DNxHD: DNxHD 220x, 220, 145, 36
• Avid DNxHR: LB, SQ, HQ, HQX
• H.265: LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0

Playback

• Playlist: Yes - create customer playlists from full or sub-clips
• Loop: Yes, with user-customizable in/out markers
• Apple ProRes RAW: Yes - recorded clips
• Apple ProRes: Yes, with linear PCM audio
• Avid DNx: Yes, with linear PCM audio
• H.265: Yes

Recording

• Pre-roll: ProRes, DNxHD only
• Timelapse: Yes
• Simultaneous Proxy Record: Yes

On-screen Monitoring Tools

• Waveform: 3 sizes – adjustable opacity & brightness
• RGB parade: 3 sizes – adjustable opacity & brightness
• Vectorscope: 2 sizes – adjustable opacity & brightness
• 1 x Zoom: Yes. 1:1 pixel mapping for 4K
• 2 x Zoom: Yes
• Focus peaking: Colour selected / threshold setting / colour / mono / edges only
• Atomos False Color: Yes, with scale
• ARRI False Color: Yes
• EL ZONE: Yes
• Zebra: Yes, adjustable
• Isolate color channel: Blue Only
• Cine Frame Guides: Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
• Social Frame guides: Presets for 9:16, 1:1, 191:1, 4:5
• Onion Skin: Yes
• Safe areas: Action and graphic
• Grid markers: 9 grid
• Anamorphic desqueeze: 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
• Display Flip: Vertical only

Onboard Signal Processing

• Pulldown removal: 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
• 4K UHD downscale for HD: Loop out - 4K UHD to FHD
• DCI Crop: Loop out - 17:9 to 16:9 crop

Remote Control

• HDMI: Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
• SDI: SDI trigger camera selectable
• Serial 2.5mm Jack: Calibration via optional USB to serial cable
• AirGlu BT: Yes
• AirGlu RF: Yes

Camera to Cloud

• ATOMOSphere Direct progressive upload supported (20GB free storage)
• Adobe Frame.io Direct progressive upload supported (separate purchase)
• Dropbox Direct progressive upload supported (separate purchase)

What’s in the Box

• Ninja TX monitor-recorder
• USB-C locking cable adaptor
• HDMI locking cable adaptor
• Wi-Fi antenna
• 5x antenna tips (black, white, yellow, green, red)
• AirGlu antenna
• antenna caps
• USB-C locking cable (45cm)
• Quick Start Guide
