ATOMOS Ninja Phone

ATOMOS Ninja Phone

SKU: ATOMNJPB01

Ninja Phone is a 10-bit video coprocessor for iPhone 15 Pro/Max that records from professional HDMI cameras to Apple ProRes and H.265.

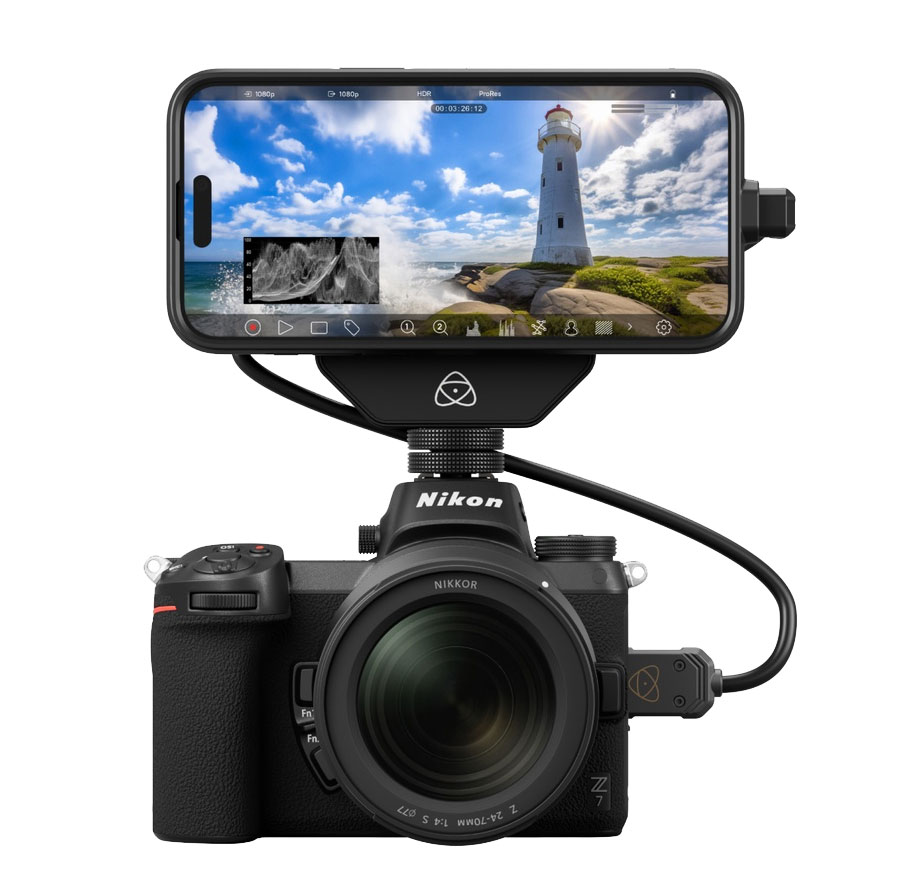

The iPhone is a technological masterpiece, with its amazing Retina monitor and cutting-edge, Wi-Fi 6E and 5G connectivity. But how do you connect your pro camera? With a Ninja Phone! Attach the Ninja Phone to your iPhone 15 Pro or Pro Max, plug in an HDMI-equipped camera, and you’ve got the best display on the planet with fast, low-latency connectivity.

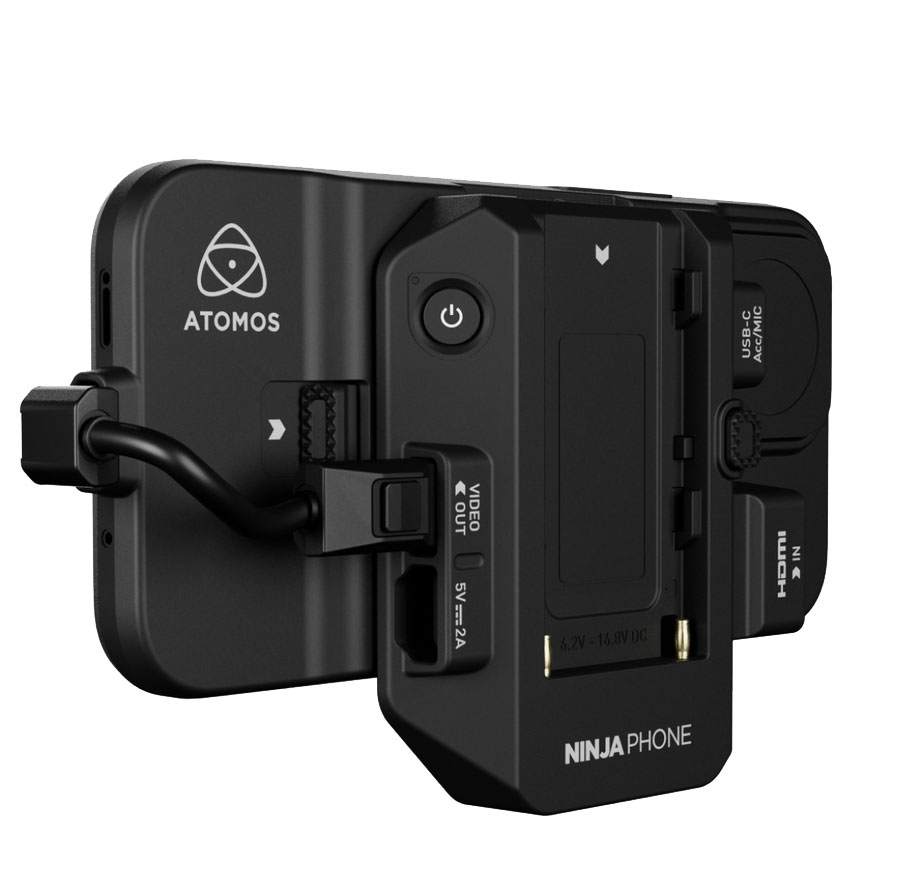

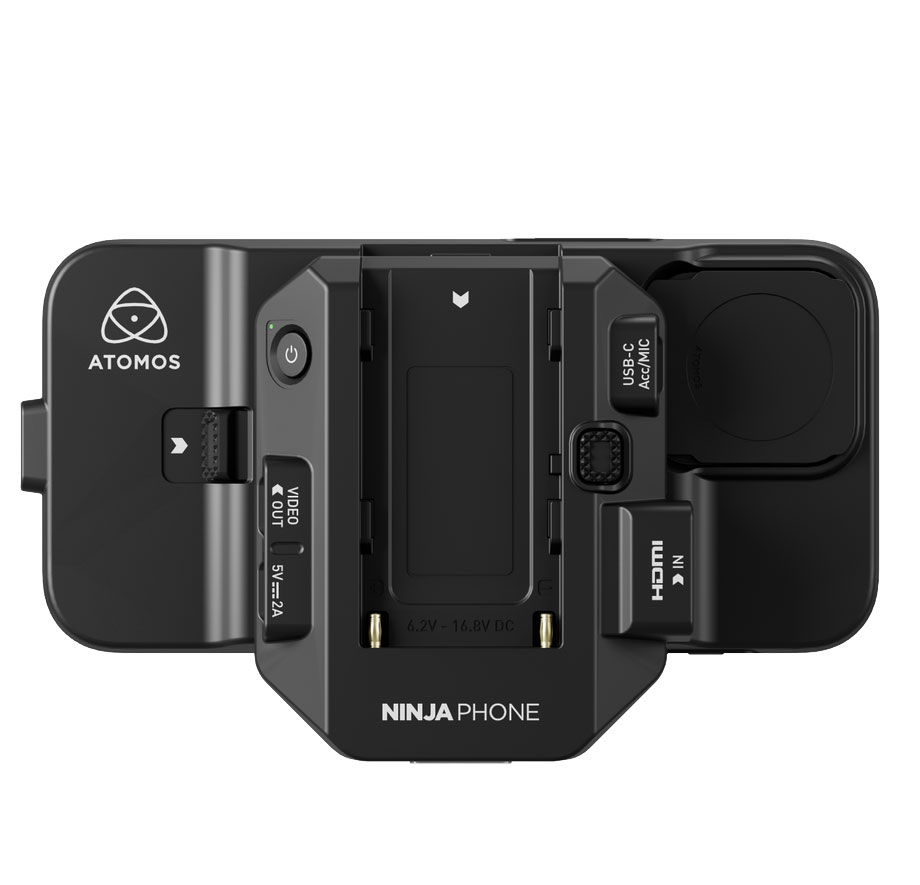

ATOMOS Ninja Phone is cleverly designed in two parts: the Ninja Phone video co-processor and the Atomos iPhone Case. The case provides a secure mount to attach the Ninja Phone to your iPhone 15 Pro or Pro Max, and enables the locking USB-C connector. Having a separate case also means that if future iPhones change in physical specification, you can just change the case and keep using the Ninja Phone.

• The ultimate iPhone accessory
• Record ProRes from any HDMI camera
• Stream via 5G or Wi-Fi 6E to social platforms
• Dual record 10-bit H.265 with Camera to Cloud
• Landscape Mode - For Video Professionals
• PORTRAIT MODE - For Content Creators

Technical data

Video Input Format

• 1080p 60/59.94/50/30/29.97/25/24/23.98fps; 720p 60/59.94/50fps

Video CODEC

• ProRes HQ/ProRes 422/ProRes LT/ProRes Proxy/H.265 Main 10/H.265 8b/H.264 8b

Video Input Port

• HDMI-A

Video Output Port

• USB 3.1 Gen1
• ProRes HQ/ProRes 422/ProRes LT/ProRes Proxy/H.265 Main 10/H.265 8b/H.264 8b
• 1080p 60/59.94/50/30/29.97/25/24/23.98fps
• 720p 60/59.94/50fps

Audio

• HDMI 2 Channel 48KHz PCM
• USB-C Mic Matches Microphone Sample Rate, Locks Audio to Video

Power

• USB Power In: USB-C 5V 3A - Ninja Phone charges phone and accessories when attached
• Accessory Port: USB-C 5V/1A + USB 3.0 Data
• Battery Compatibility: NP-F550/F750/F970 - Ninja Phone charges phone and accessories when attached
• Power Consumption: 2.4W (without charging iPhone); 4W （with iPhone 15 Pro; 10W (with iPad Air Gen5)
• Operating Environment Temperature: 0℃~40℃

Dimensions

• Height 98.2mm
• Width 85.4mm
• Depth 17.4mm

Weight

• Ninja Phone: 94g
• iPhone 15 Pro: 187g
• iPhone 15 Pro Max: 221g
• Atomos Phone Case: 18g
• With case and iPhone 15 Pro Max 334g

Chip

• AtomIC 5
• Mounting Points 1/4"/20 with guide pins

iPhone Video recording w/Ninja Phone

• Video formats recorded: HEVC, H.264, and ProRes
• 1080p HD video recording at 25 fps, 30 fps, or 60 fps
• 720p HD video recording at 30 fps
• Cinematic mode
• HDR video recording with Dolby Vision
• ProRes video recording up to HDp60 Internal
• Log video recording
• Academy Color Encoding System
• Cinematic video stabilization (4K, 1080p, and 720p)

Connectivity

• 5G (sub‑6 GHz and mmWave) with 4x4 MIMO8
• Gigabit LTE with 4x4 MIMO and LAA8
• Wi‑Fi 6E (802.11ax) with 2x2 MIMO9
• Bluetooth 5.3
• Second-generation Ultra Wideband chip10
• Thread networking technology
• NFC with reader mode
• Express Cards with power reserve

Location

• Precision dual-frequency GPS
• Digital compass
• Wi-Fi =Cellular
• iBeacon microlocation
