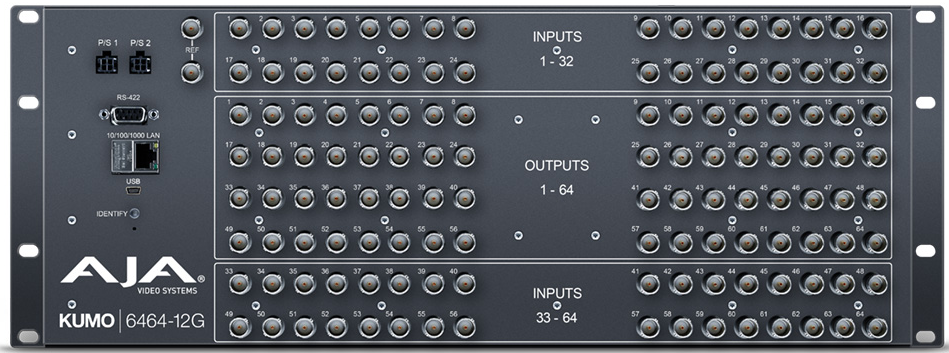

AJA KUMO 64x64 Compact 12G-SDI Router

AJA KUMO 6464 12G

The all-new AJA KUMO 6464-12G offers increased capacity for larger configurations while maintaining a compact 4RU profile with support for SD up to 4K and even 8K from 64x 12G-SDI inputs and 64x 12G-SDI outputs. KUMO supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.

KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats while reducing cable counts when transporting 4K/UltraHD over a single SDI link. The routers offer network-based and physical control using KUMO CP and CP2 and mirror the physical form of AJA’s production-proven KUMO 6464 routers, with a USB port for configuring IP addresses via AJA’s free eMini-Setup software. Built to the same quality standards as all AJA products, KUMO 6464-12G is the ideal choice for any situation where a balance of size, performance, reliability, and capacity are critical, such as virtual production, post facilities, and mobile trucks.

Features

  • 64x 12G-SDI inputs and 64x 12G-SDI outputs
  • Compact form factor
  • Single cable support for 4K/UltraHD
  • Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
  • Redundant power supply (option)
  • Eight salvos per router
  • Twenty Presets support
  • Embedded web server for remote control
  • Configure IP Address via USB port and supplied AJA eMini-Setup software for Windows/macOS
  • Supports external control by up to 32 AJA Control Panels
  • Five year warranty

Technical data

Video Formats

  • 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
  • 270 Mbps DVB-ASI

Video Input Digital

  • 12G-SDI Inputs
  • 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Video Output Digital

  • 12G-SDI Outputs
  • 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Noninverting

Ancillary Data

  • Passes all SDI embedded ancillary data including audio

Salvo

  • Up to 8 Salvos can be configured and saved in each KUMO router

Cable Equalization (Belden 1694A)

  • 12 Gbps, up to 50m
  • 6 Gbps, up to 90m
  • 3 Gbps, up to 140m
  • 1.5 Gbps, up to 200m
  • 270 Mbps, up to 390m
  • Automatic operation

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select

Switching Modes

  • Single/Normal, Dual, and Quad Link modes
  • Switches in vertical blanking per SMPTE RP-168

Control Panel Compatibility

  • AJA KUMO CP (First 32 I/O in Single/Normal, all I/O in Dual or Quad mode) – 1RU X-Y Ethernet control panel
  • AJA KUMO CP2 (Single/Normal, Dual or Quad mode) – 2RU X-Y Ethernet control panel

Reference Input

  • External, 2x BNC
  • Looping, nonterminating
  • Blackburst or tri-level sync

Network Interface

  • 1x RJ-45, 10/100/1000 Ethernet
  • Supports AJA KUMO Ethernet control panels, direct connect or networked
  • Basic support for Grass Valley Native Protocol
  • Embedded web server for remote control

USB Interface

  • 1x Mini-USB for IP configuration using AJA eMini-Setup

Serial Interface

  • 1x DB-9 Female, RS-422
  • Basic support for Grass Valley Native Protocol
  • 9-pin D-connector pinout

  • Size (w x d x h): 4RU - 441.96 x 39.37 x 177.8 mm
  • Weight: 4.2 kg

Power

External power supply required
  • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 50W typical, 72W max.
  • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 84W
  • Optional redundant AC adapter sold separately, KUMO-84W-PWR

Environment

  • Safe Operating Temperature: 0 to 40 C
  • Safe Storage Temperature (Power OFF): -40 to 60 C
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Details of the manufacturer

  • AJA Video Systems, Inc.
  • 180 Litton Drive
  • Grass Valley, CA 95945, United States

+1-530-274-2048

support@aja.com

Details of the person responsible for putting the product on the European market

  • ComLine GmbH Value Added Distribution
  • Richard Gäbel
  • Lise-Meitner-Straße 16
  • 24941 Flensburg, Germany

+49 461 77303-300

info@comline-shop.de

Warnings and safety information

AJA SAFETY AND COMPLIANCE
