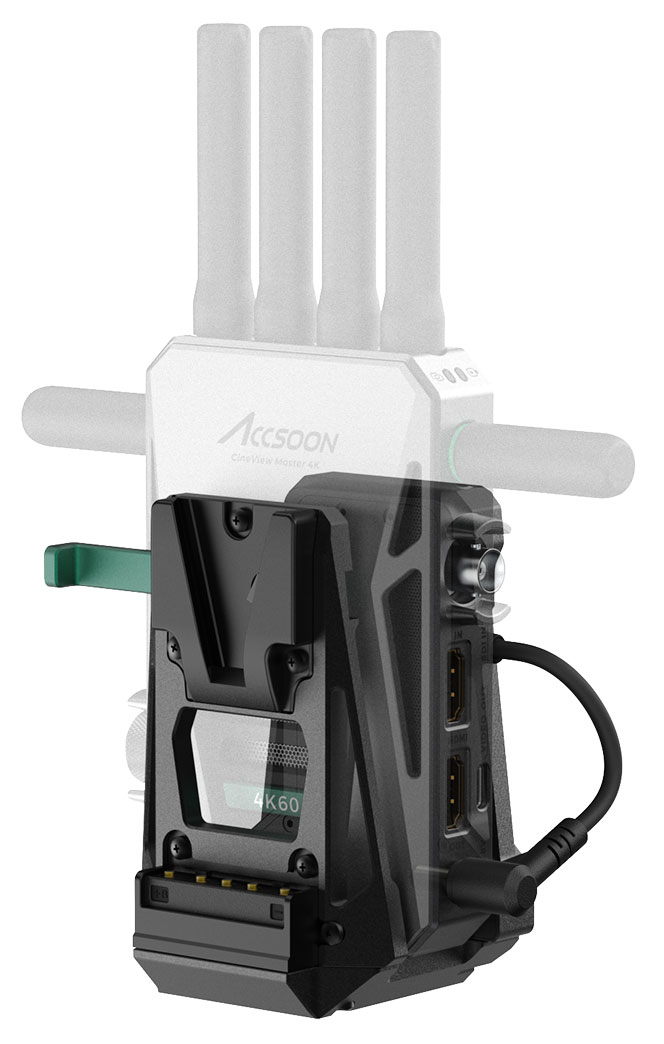

Accsoon V-Lock Adapter

Accsoon CineView Master 4KThe CineView Master 4K - the world's first Tri-Band 4K60 wireless video transmission system for enhanced stability, with 25ms best in class low latency. It redefines wireless video with a fully end-to-end true 4K60 video quality and an extended 2.5km transmission range. With 8K processor and its powerful capabilities, the CineView Master 4K can simultaneously transmit via different streams to meet diverse applications. In addition to SDI/HDMI monitoring, the Accsoon SEE App supports wireless connections on both Android and iOS mo- bile devices, offering professional monitoring features and the capability to upload camera footage to cloud platforms. The newly added MFi-certified wired connection on the transmitter transforms a connected iPad or iPhone into a fully-fledged professional camera-top monitor, significantly enhancing on-site monitoring versatility. One set of wireless transmission that meets diverse needs. FeaturesEnd to End True 4K60 TransmissionTri-band (2.4GHz+5GHz+6GHz) + DFS Wireless Transmission25ms Best in Class Latency2.5km Extended Long Transmission RangeMultiple Video Streams for Diverse ApplicationsTX: SDI Input, HDMI Input, HDMI Loop-outTX: MFi-Certified USB Video Out to iPhone/iPadConvert SDI Input Signal on TX to HDMI Output Signal on RXConvert HDMI Input Signal on TX to SDI Output Signal on RXRX: SDI and HDMI Output SimultaneouslyMonitoring on Up to 5 DevicesMonitoring on Accsoon SEE App8K High Performance A/V ProcessorPowered by DC Input and NP-F BatteryCompatible with Accsoon V-Mount Battery AdapterIntelligent, Quiet Heat DissipationAerospace Grade Aluminum Alloy1.05-inch Full-color LCD Display

Accsoon CineView Master 4K - Transmitter onlySKU: WIT07-TX The CineView Master 4K transmitter wirelessly transmits video and audio signals to the CineView Master 4K receiver, as well as to Android and iOS mobile devices via Wi-Fi. The CineView Master 4K's transmitter includes a USB-C Video Out port that can transmit both video and audio signals to iOS devices while simultaneously powering the connected device (5V/3A) via cable connection. Technical dataA/V Processor: 8K High Performance A/V ProcessorProtocol Accsoon Proprietary RTMS 4.0 ProtocolVideo Input: HDMI, 3G SDIVideo Output: HDMI Loop-OutHDMI Loop-out Format: Identical to the HDMI video inputDC Port: 5.5mmx2.1mm, center positiveDC Voltage: 7.4~16.8V Battery: Compatible with NP-F550, NP-F750, NP-F970Audio: 48KHz 16/20/24bitLatency: 1080p < 25ms / 4K < 35ms (Camera latency not included)Transmission Range: ≥ 2.5 km (No obstacles, no interference)OperatingEnvironment Temperature: -10~40°CPower Consumption: 6.5W average *Without powering other devicesDimensions: (Antennas Not Included) 130mm x 95mm x 32 mmWeight: (Antennas Not Included) 322gSDI Input Format1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B1080i: 50/59.94/60i720p: 50/59.94/60pHDMI Input Format4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p1080p: 23.98/24/25/29.97/30/50/59.94/60p1080i: 50/59.94/60i720p: 50/59.94/60p

Accsoon CineView Master 4K - Receiver onlyExperience high quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming and any other video productions.With the powerful capabilities of the 8K A/V processor, the Accsoon CineView Master 4K can encode and transmit three different video streams at the same time to meet the diverse needs of different applications. Technical dataA/V Processor: 8K High Performance A/V ProcessorProtocol: Accsoon Proprietary RTMS 4.0 ProtocolVideo Output: HDMI, 3G SDIHDMI Loop-out Format: Identical to the HDMI video inputDC Port: 5.5mmx2.1mm, center positiveDC Voltage: 7.4~16.8VBattery: Compatible with NP-F550, NP-F750, NP-F970Audio: 48KHz 16/20/24bitLatency: 1080p < 25ms / 4K < 35ms (Camera latency not included)Transmission Range: ≥ 2.5 km (No obstacles, no interference)OperatingEnvironment Temperature: -10~40°CPower Consumption: 5.0W average Without powering other devicesDimensions: (Antennas Not Included) 130mm x 95mm x 32 mmWeight: (Antennas Not Included) 320gSDI Output Format1080p: 24/25/30/50/60p Level A1080i: 50/60i720p: 50/60pHDMI Output Format4K (3840*2160): 24/25/30/50/60p1080p: 24/25/30/50/60p1080i: 50/60i720p: 50/60p

Accsoon CineView 2 SDI set The Accsoon CineView 2 SDI is a next-generation 1080P wireless video transmission system featuring a massive 1500ft/450m range (line-of-sight). It offers even greater stability than its predecessors and an impressive latency of less than 50ms. The CineView 2 SDI uses the Accsoon Dual-Band transmission technology which takes the same video frame and sends it on both 2.4GHz and 5GHz frequencies at the same time for an inherently more stable wireless connectivity on set FeaturesHigh Reliability 2.4GHz+5GHz Dual-Band Transmission TechnologyExtreme Low Latency of Less Than 50msLong-Range Transmission Range Up to 1500ft/450mSDI & HDMI Input/Output, HDMI Loop-Out, UVC OutSDI to HDMI Pass-throughMonitoring on Up to 4 Devices, Mix and MatchSilent Fanless DesignPower with NP-F battery, DC or 5V 2A USB-C powerMonitoring Made Simple with Accsoon SEE AppAutomatic Channel Selection
