Accsoon CineView Nano
Product number:
SW28682
Manufacturer:
Accsoon
EAN:
0664918772208
Manufacturer product number:
ACC-WIT04-M
Delivery time:
1-3 days
Accsoon CineView Nano

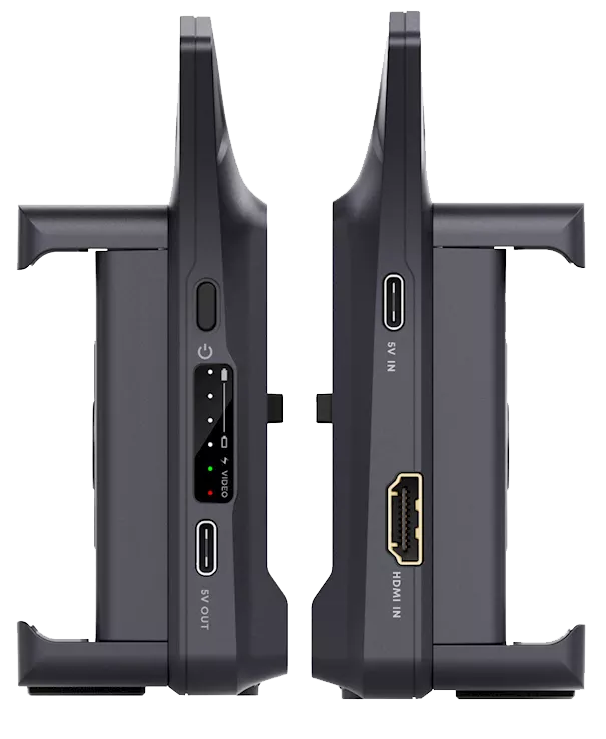

Accsoon CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time.

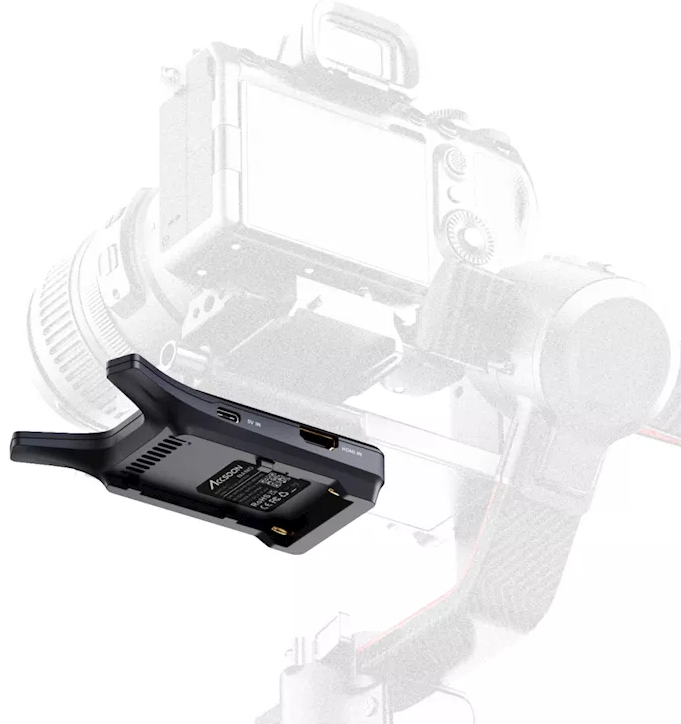

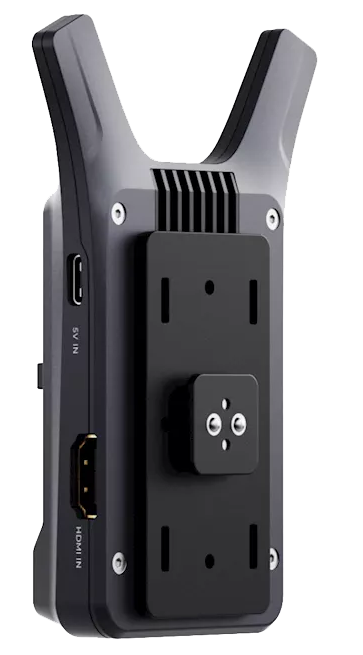

The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms. Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/ RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of access
Technical data
- Video Input: HDMIÂ
- Video Output: 1080p 23.98/24/25/29.97/30/50/59.94/60fpsÂ
- Audio: 44.1KHz/48KHz 16bit/24bit // PCM via HDMIÂ
- Latency: ＜0.06s (Camera latency not included)Â
- Transmission power: 17~20dBmÂ
- Transmission range: 500ft (No obstaclesno interference)
- Power consumption: 2.5 Watt (Without charging other devices)Â
- Operating Environment Temperature: -10~40°CÂ
- Dimension: 76mm × 113mm × 20mmÂ
- Weight: 72.3g
Box includes
- 1x Transmitter
- 1x Phone Clamp
- 1x Cold shoe mount adapter
- 1x RS2/3 Pro Gimbal Adapter
- 1x User manual
Details of the manufacturer
- Accsoon Technology
- Room 305, Anyuanju Building, Baozhi Gongye Road, Guanhu Street, Longhua District, Shenzhen 518000, China
+8618081074151
Details of the person responsible for putting the product on the European market
- Apex CE Specialists GmbH
- Grafenberger Allee 227
- 40237 Düsseldorf, Germany
