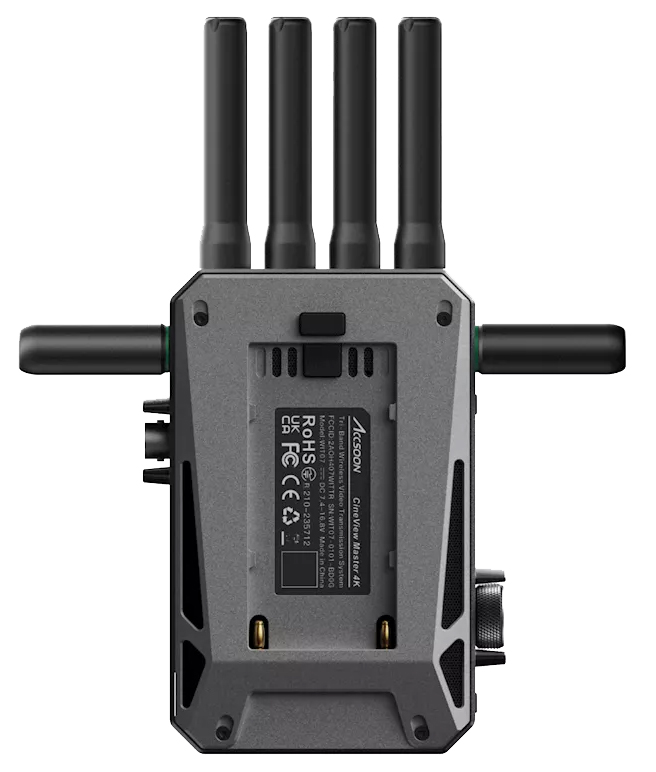

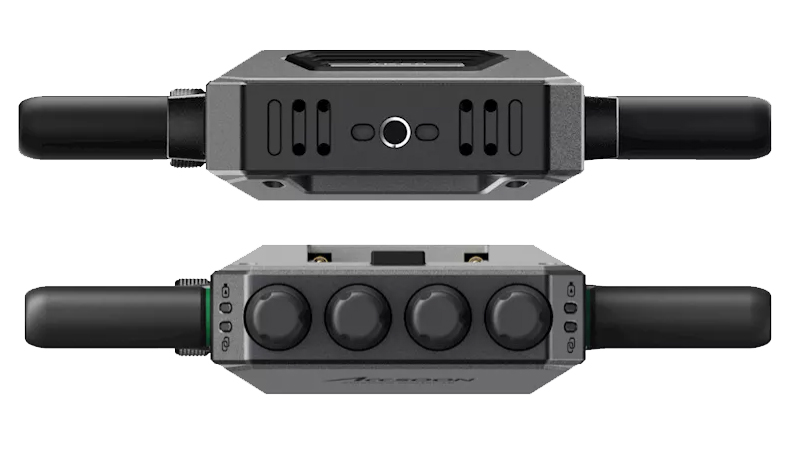

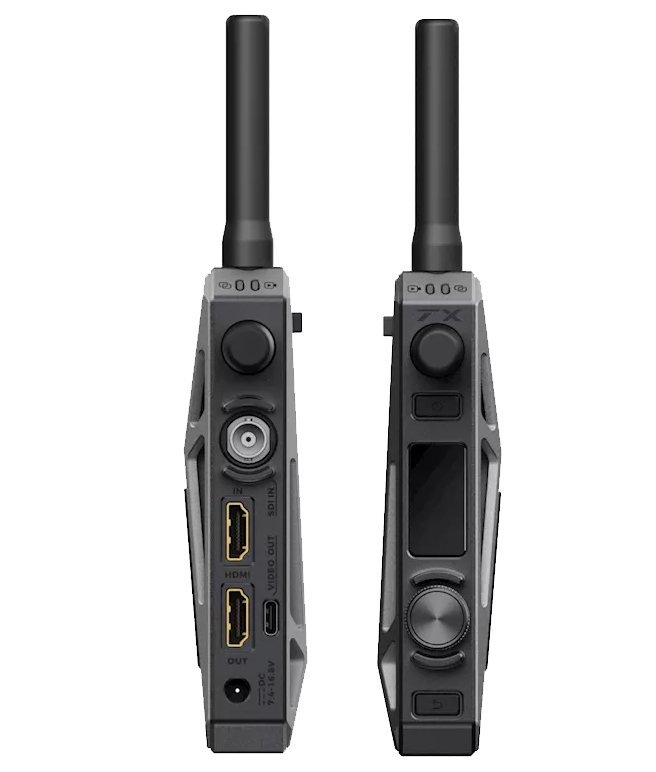

Accsoon CineView Master 4K - Transmitter only

Accsoon CineView Master 4K - Transmitter only

SKU: WIT07-TX

The CineView Master 4K transmitter wirelessly transmits video and audio signals to the CineView Master 4K receiver, as well as to Android and iOS mobile devices via Wi-Fi. The CineView Master 4K's transmitter includes a USB-C Video Out port that can transmit both video and audio signals to iOS devices while simultaneously powering the connected device (5V/3A) via cable connection.

Technical data

  • A/V Processor: 8K High Performance A/V Processor
  • Protocol Accsoon Proprietary RTMS 4.0 Protocol
  • Video Input: HDMI, 3G SDI
  • Video Output: HDMI Loop-Out
  • HDMI Loop-out Format: Identical to the HDMI video input
  • DC Port: 5.5mmx2.1mm, center positive
  • DC Voltage: 7.4~16.8V Battery: Compatible with NP-F550, NP-F750, NP-F970
  • Audio: 48KHz 16/20/24bit
  • Latency: 1080p < 25ms / 4K < 35ms (Camera latency not included)
  • Transmission Range: ≥ 2.5 km (No obstacles, no interference)

Operating

  • Environment Temperature: -10~40°C
  • Power Consumption: 6.5W average *Without powering other devices
  • Dimensions: (Antennas Not Included) 130mm x 95mm x 32 mm
  • Weight: (Antennas Not Included) 322g

SDI Input Format

  • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
  • 1080i: 50/59.94/60i
  • 720p: 50/59.94/60p

HDMI Input Format

  • 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60p
  • 1080i: 50/59.94/60i
  • 720p: 50/59.94/60p

Details of the manufacturer

  • Accsoon Technology
  • Room 305, Anyuanju Building, Baozhi Gongye Road, Guanhu Street, Longhua District, Shenzhen 518000, China

+8618081074151

sales@accsoon.com

Details of the person responsible for putting the product on the European market

  • Apex CE Specialists GmbH
  • Grafenberger Allee 227
  • 40237 Düsseldorf, Germany

Info@apex-ce.com
