Accsoon CineView HE set (RX+TX)

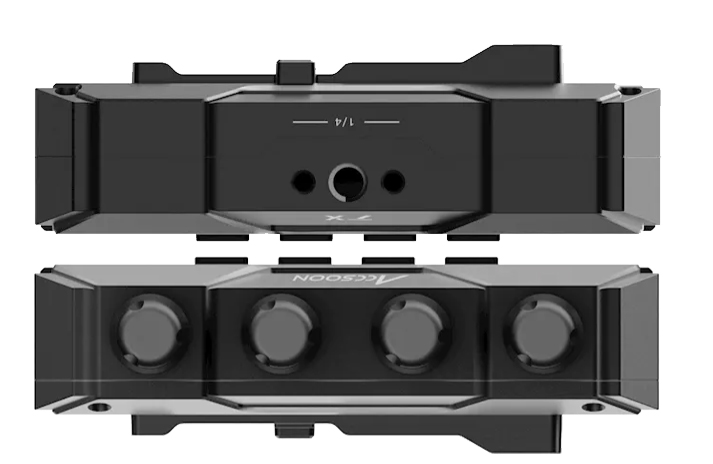

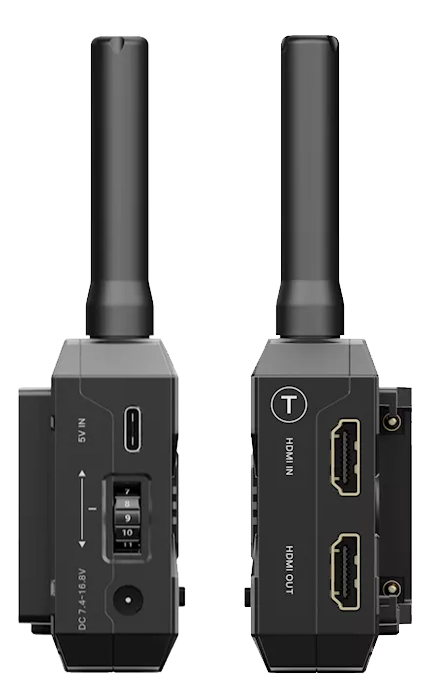

Accsoon CineView HE

Accsoon CineView HE is an HDMI Dual-Band long range wireless camera transmitter and receiver kit featuring a new USB-C port on receiver for live streaming directly (UVC). It transmits HD video and HQ audio to up to 4 devices (its receiver, mobile phone, iPad, and even MacBook with the newest M1 chip) through Accsoon’s uniquely patent Dual-Band (2.4GHz + 5GHz) transmission technology. And its brand new USB-C port on the receiver will provides creators, live streamers, and podcasters with much more power to display their work or life through live streaming.

Transmitter data

  • Video Input: HDMI
  • HDMI Input Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • HDMI Output Format: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
  • DC Port: 5.5mm x 2.1mm center positive
  • DC Voltage: 7.4~16.8V =Audio: 44.1KHz/48KHz 16bit/24bit PCM
  • Latency: <0.06s (Camera latency not included)
  • OLED Display: 1.3inch
  • Transmission Power: 17~20dBm
  • Transmission Range: 1200ft (No obstacles, no interference)
  • Power Consumption: 4.5Watt (Typical)
  • Operating Environment Temperature: -10°C~40°C
  • Dimensions: 105mm x 66mm x 32mm (Antennas not included)
  • Weight: 200g (Antennas included)

Receiver data

  • Video Output: HDMI
  • HDMI Output Format: 1080p 24/25/30/50/60fps
  • DC Port: 5.5mm x 2.1mm center positive
  • DC Voltage: 7.4~16.8V
  • OLED Display: 1.3inch
  • Power Consumption: 4.2Watt (Typical)
  • Operating Environment Temperature: -10°C~40°C
  • Dimensions: 105mm x 66mm x 32mm (Antennas not included)
  • Weight: 200g (Antennas included)

Details of the manufacturer

  • Accsoon Technology
  • Room 305, Anyuanju Building, Baozhi Gongye Road, Guanhu Street, Longhua District, Shenzhen 518000, China

+8618081074151

sales@accsoon.com

Details of the person responsible for putting the product on the European market

  • Apex CE Specialists GmbH
  • Grafenberger Allee 227
  • 40237 Düsseldorf, Germany

Info@apex-ce.com
