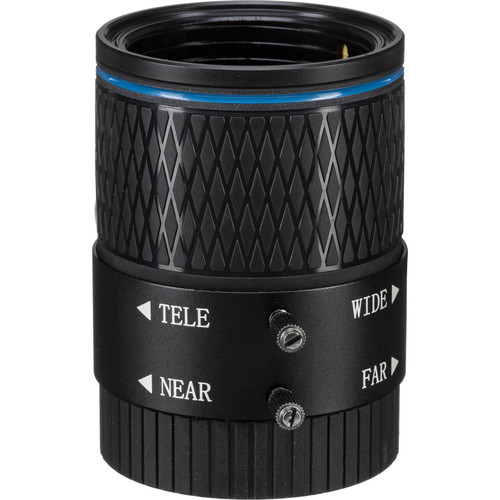

Marshall CS-3816-8MP 3.8-16mm Varifocal CS-Mount Lens
€699.00*
gross: €831.81
Marshall CS-3816-8MP
Marshall CS-3816-8MP 8MP 3.8-16mm 4K Varifocal CS Lens with DC Auto iris is a CS-Mount 3.8-16mm Varifocal Lens with Long Cable designed for 8MP cameras with 1/1.7" sensor. The Marshall CS-3816-8MP lens is IR corrected and features a 3.8-16mm focal length with a 148 to 35.8° diagonal field of view. It has a DC auto iris and manual focus and zoom operation with lock screws.Technical data:
Lens Mount: CSSensor Compatibility: 1/1.7", 1/1.8", 1/1.9" (8 MP)Focal Length: 3.8 to 16mmBack Focal Length: 7.9mmAperture: f/1.41/1.7" Sensor Angle of View: Diagonal: 148 to 35.8° / Horizontal: 112.3 to 29.2° / Vertical: 56.8 to 15.5°1/1.8" Sensor Angle of View: Diagonal: 140.7 to 34.7° / Horizontal: 106 to 27.8° / Vertical: 76.4 to 20.9°1/1.9" Sensor Angle of View: Diagonal: 131.6 to 33° / Horizontal: 107.8 to 28.2° / Vertical: 64.4 to 17.8°Focus Type: Manual FocusIris Type: DC AutoIR Corrected: YesOperating Temperature: -20 to 60°CFlange Back Length: 12.78 mmCertifications: CE, RoHS, as per ManufacturerDimensions (ø x L): 56 x 90.5 mmWeight: 256 g
Free shipping

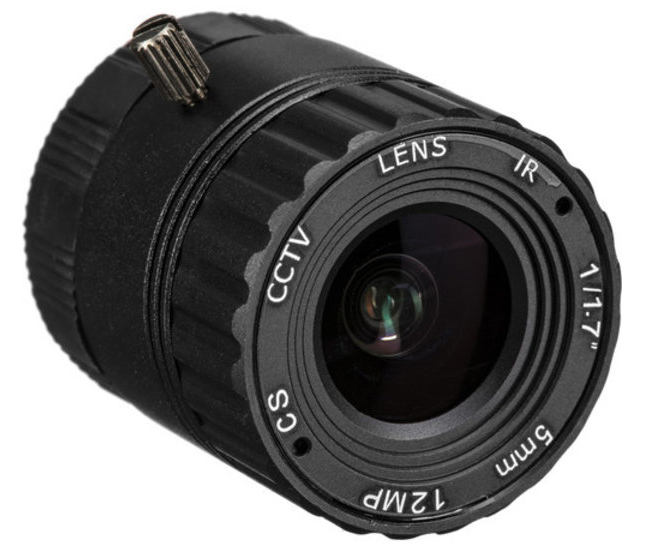

Marshall CS-5.0-12MP - 5.0-12MP CS-Mount 5mm Fixed Lens
€94.00*
gross: €111.86
Marshall CS-5.0-12MP
Marshall CS-5.0-12MP 12MP 5.0mm 4K Fixed CS Lens is a CS-Mount 5mm Fixed Lens designed for use with 12MP cameras that have a 1/1.7" sensor. This lens has a 5mm focal length that delivers an 87° horizontal field of view. It is IR corrected and features fixed iris operation. Technical data
Lens Mount: CSSensor Compatibility: 1/1.7", 1/2.5", 1/3"Focal Length: 5mmBack Focal Length: 6.39mmAperture: f/2Angle of View - 1/1.7" Sensor Diagonal: 114.4° / Horizontal: 87° / Vertical: 61.8°Angle of View - 1/2.5" Sensor: Diagonal: 87° / Horizontal: 68.6° / Vertical: 49.7°Angle of View - 1/3" Sensor: Diagonal: 70.9°/ Horizontal: 55.5° / Vertical: 41.2°Minimum Object Distance: 0.98' / 0.3 mFocus Type: Fixed FocusIris Type: FixedDistortion: -43.7%IR Corrected: YesOperating Temperature: -20 to 60°CFlange Back Length: 12.5 mmDimensions (ø x L): 28 x 31.3 mmWeight: 40.9 g
