LYNX Technik 4K UPXD converter12G-SDI UPXD with Frame Sync and Audio Processor The greenMachine UPXD package is a broadcast-quality video processing unit that has a single channel up/down/cross converter with a frame synchronizer supporting a single formats up to 4K UHD (3840 x 2160) or four independent signals up to 3G-SDI.It includes full audio processing capabilities, scalars for the spatial conversion of the video signals including versatile region of interest (ROI) selection, and high-performance deinterlacer. It also supports 4x3G (2SI Quad link) or 12G-SDI (single link) inputs and outputs for 4K UHD signals.With 2SI quad-link <> single link conversion, signals can be interchanged in between the single link and 2SI quad links. The greenMachine UPXD package comes with a fully-featured local control interface with LCD which displays image previews and audio level meters of the processed video paths in addition to the graphical user interface called LynxCentraal. It is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software. FeaturesUp/Down/Cross up to UHD 3840x2169 60Hz2SI Quad-Link to/from Single-Link ConversionVersatile Region of Interest (ROI) scaler2-Channel Deinterlacing4x 3G-SDI or 12G-SDI inputs and outputs1x MADI input and output4x External AES/Analog inputs/outputsTwo Dolby E decoders, Dolby E synchronization, full audio processingMultiple adjustable user delays for audio and videoMultiple video processing features e.g. gain, hue etc. Color correctionAdjust saturation, gain, offset, lift, gamma, hue, blanking interval deletion and aperture correctionApply horizontal flip and YCbCr headroom clippingAudioMulti-format audio embedder and de-embedder on all channels present on the video sourceGain adjustment, 1kHz test tone, mute, inversion, mono mix-down, silence and overload monitoring2x Dolby E® decoder for all 8 channels in a streamDolby® metadata can be mapped to VANC acc. to SMPTE 2020-3 and SMPTE 2020-2Full MADI support when equipped with optional MADI fiber SFP Funcions4K/3G Scaler / 4x 3G ScalerSpatial converter with powerful region of interest (ROI) selection and scaling. The conversion modes supported are: Pillar box/Letterbox, Center cut, 14:9 conversion, Stretch to fill, and Custom ROIDeinterlacerDeinterlacers on channel 1 and 2 for SD and HDMotion adaptive filteringAllows deinterlacer to create a sequence of output frames at the same rate as the sequence of input fields eliminating feathering or flickering artefacts3G-SDI level A/BAutomatic detection of 3G level A/BDual link conversion 3G level A <> 3G level B(3G level A acc. to SMPTE ST425-1/4:2:2, 10Bit) Frame SynchronizerDynamic synchronization of SDI sources. Embedded audio matched to the video processing delayMetadata ManagementManages embedded metadata: SMPTE 2020, AFD, WSS, SMPTE 2031Time code, Closed captions, and TeletextVideo AdjustmentAdjust saturation, gain black and hue, blanking interval deletion and aperture correctionApply horizontal flip and YCrCb headroom clippingColor correctionAdjust gain, offset, lift, and gamma for Red, Green, and Blue (RGB)Adjust gain and offset adjustments for Cyan, Magenta, Yellow, and White (CMYW)Embedder/ De-embedderMulti-format audio embedder and de-embedder provide access to all the channels in the input SDI and allow shuffling and embedding them to the output(s)Audio ProcessingGain adjustment, 1kHz test tone, mute, inversion, stereo to mono- mix on each mono audio channel silence and overload monitorin Dolby E ® decoder2x Dolby E® decoder for all 8 channels in a streamDolby® metadata can be mapped to VANC acc. to SMPTE 2020-3 and SMPTE 2020-2MADI in/outFull MADI support, if equipped with optional MADI SFPBasic Audio & Video Test GeneratorBasic audio & video test signal generator with static video test patterns. Can be configured to output a test pattern on TRS errors with Frame SynchronizerTimingIndividual video and audio (AES and MADI) delayMaximum video delay per channel is 30 framesMaximum audio delay is 1.3 sec per AES audio channeLynxCentraalNew control software for automation, remote control and status monitoringRemote ControlFull SNMP v2 and LYNX IP remote control protocol functionalityEnables CustomControl features

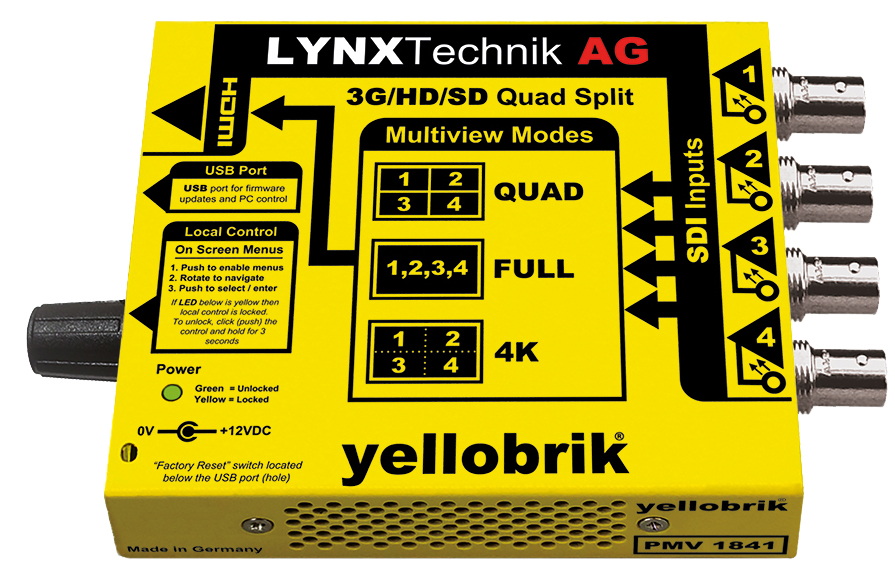

LYNX Technik PMV 1841 The LYNX Technik PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output. The module has three basic modes of operation: Quad Split - All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured.Full Screen - One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.4K Monitoring - The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required). Note: There are no on screen monitoring tools available in 4K mode. The module is simple to setup and configure using the integrated local control and on screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and also PC/MAC control using the yelloGUI application. Features 4 x SDI inputs and 1 x HDMI outputSupport for 3G/HD/SD -SDI formats (auto-detect)Full Screen, Quad Split and 4K (12G) monitoring modesIntegrated local control and on screen menusMultiple on screen monitoring tools for each input: Waveform MonitorVectorscopeAudio Level Meters (upto 16 Channels)IMD (text ID)Safe Area /4:3 Extraction / Center Cross markersVideo StandardTime CodeAudio and Video Alarms Input present LEDs for each SDI input4K (12G) monitoring mode (down converted HD HDMI output)yelloGUI compatible for PC/MAC
