OConnor Ultimate 1040 flowtech100-System

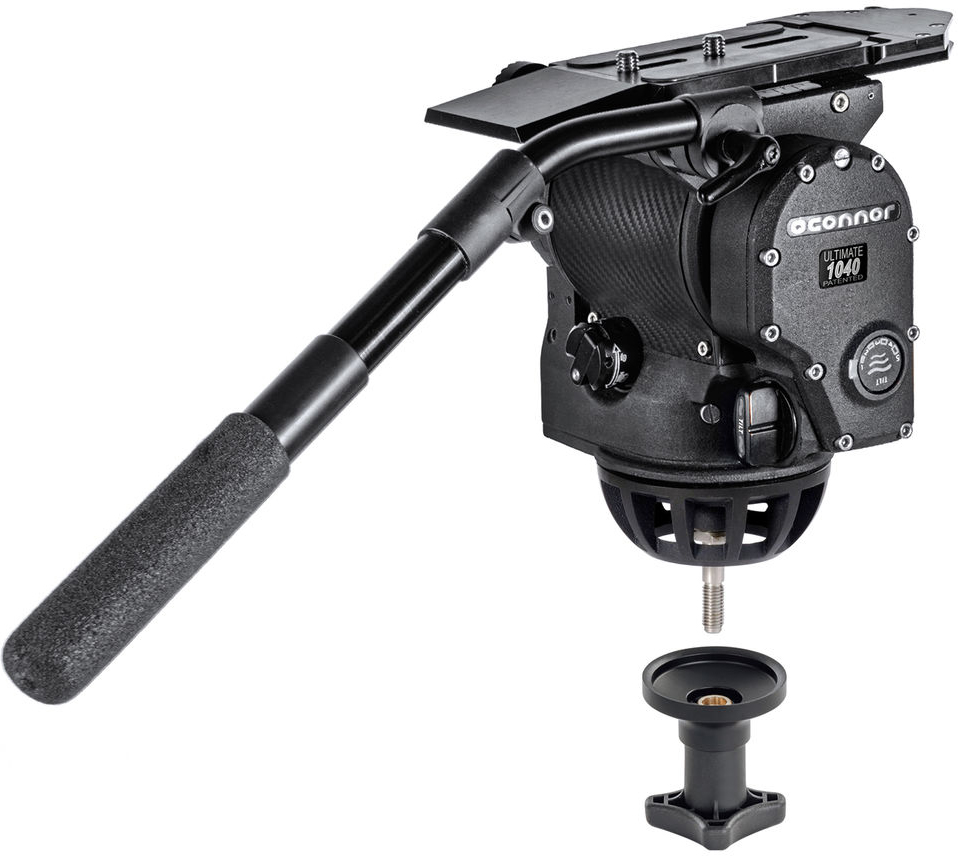

OConnor Ultimate 1040 Fluid-Head SKU: C1265-0001 The Ultimate 1040 fluid head brings the same quality build and precision movement found the larger OConnor 2575 and 2560 heads to enable cinematographers easily move from heavier to lighter payload camera setups without compromise. Features of the lightweight yet sturdy fluid head include a stepless, ultra-smooth pan and tilt fluid drag custom designed to provide ultimate control and stability, as well as the OConnor Sinusoidal Counterbalance system that provides true, accurate balance at any point in the tilt range. Providing perfect balance even for lighter-weight cameras with counterbalancing down to zero, the Ultimate 1040 head is made with high-performance magnesium, and aluminium alloys with stainless steel and genuine carbon fibre finishing, to deliver consistent results on the most demanding sets. For camera operators, making the change to smaller, lighter cameras while retaining quality has never been easier. And most importantly, the famous OConnor feel, remains the same regardless of payload. The versatile OConnor Ultimate 1040 supports payloads from 0 to 20 kg at a 15cm centre of gravity and a +/-90° tilt range. Technical data Capacity @ 4 in. (102 mm) GoG: 23.5 kgCapacity @ 5 in. (127 mm) GoG: 20.4 kgCapacity @ 6 in. (152 mm) GoG: 18.1 kgCapacity @ 8 in. (203 mm) GoG: 14.5 kgPlatform: Large Europlate Quick ReleaseHandle(s): 30°Bases: 100mm (Mitchell, 150mm, Quickfix and Ped mounts optional)Tilt: +90° / -90°Height: 15.8cmWidth: 19.3 cmDepth: 11.7 cm excluding quick releaseWeight: 4.8 kg includes quick release & plate and tiedown but excluding Pan Bar In the box Large Euro Quick Release with Camera Plate 1030-268Pan handle for 1030 range 1030-246Pan handle extension 2575-135100mm Ball Base 08365100mm FT Tiedown S2052-1100
