Versandkostenfrei
Wooden Camera D-Box (2pin LEMO Kit, V-Mount)
506,00 €*
Brutto: 602,14 €

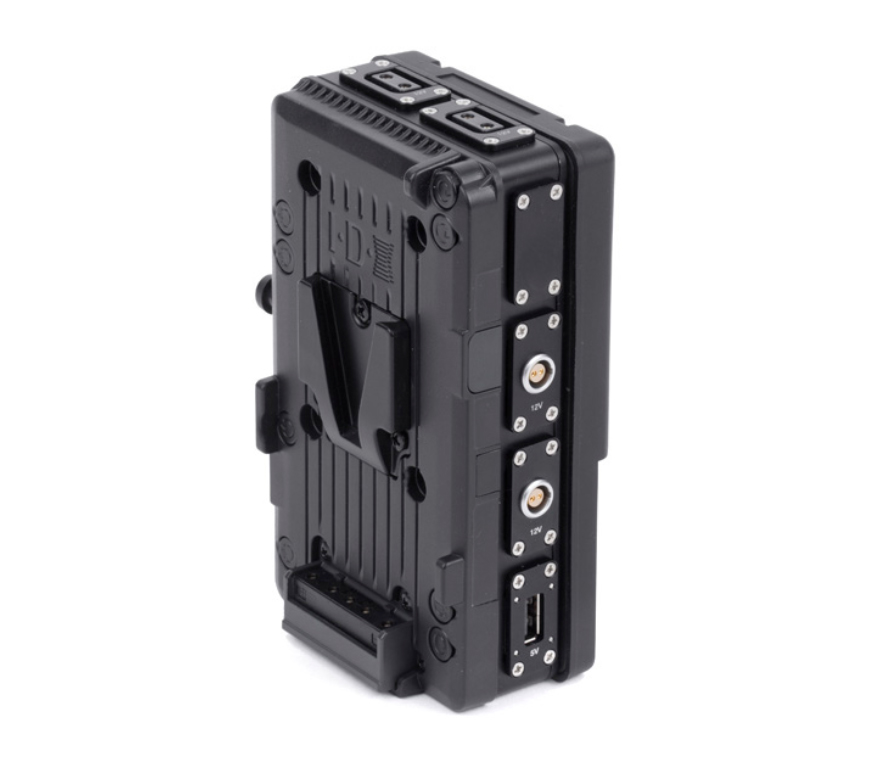

Wooden Camera D-Box (2pin LEMO Kit, V-Mount)
SKU: 200100
D-Box (2 Pin LEMO Kit, V-Mount) is one of the most popular combinations of connectors including (2) 2 Pin LEMO, (2) D-Tap, (1) USB, and a male V-Mount on one side and female V-Mount on the other. Fits between any V-Mount battery plate and V-Mount battery.
Comes with
2 x 2 Pin LEMO2 x D-Tap1 x USB1 x Blank
Versandkostenfrei
Wooden Camera D-Box (Alexa Mini, Gold Mount)
1.050,00 €*
Brutto: 1.249,50 €
Wooden Camera D-Box (Alexa Mini, Gold Mount)
SKU: 209100
D-Box (Alexa Mini, Gold Mount) is a custom version of popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the ARRI Alexa Mini. Two 16 inch (40cm) cables exit the power plate with one going to the 8pin LEMO power plug and the other going to the 7pin EXT port.
The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide paired with the same Rod Clamps listed above. Wooden Camera D-Box will attach to the ARRI BAP-1 and instructions on how to do this are included in the box.
Authentic Anton Bauer plate provides 1x D-Tap (unregulated) and is hard wired to the D-Box.
D-Box Slots Included
7 pin LEMO - EXT PortReplica of connector on rear of cameraMaintains functionality of external communication, R/S, and powerNote this slot is not swappable2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable4 pin Mini XLR - 12V InputHot swappable power input with included 7 inch pigtail cable for standard 4 pin XLR (12V nominal)Capable of providing power to accessories and camera with out brick battery attachedNote this slot is not swappable
Specifications
Weight 534 gDimensions 90 mm x 146 mm x 43mm
Versandkostenfrei
Wooden Camera D-Box (Alexa Mini, V-Mount)
1.050,00 €*
Brutto: 1.249,50 €
Wooden Camera D-Box (Alexa Mini, V-Mount)
SKU: 209200
D-Box (Alexa Mini, V-Mount) is a custom version of the popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the ARRI Alexa Mini. Two 16 inch (40cm) cables exit the power plate with one going to the 8pin LEMO power plug and the other going to the 7pin EXT port. The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to our Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide paired with the same Rod Clamps listed above.
This product Wooden Camera D-Box will attach to the ARRI BAP-1 and instructions on how to do this are included in the box.
Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) and is hard wired to the D-Box. Inside the D-Box is a 10A fuse.
D-Box Slots Included
7 pin LEMO - EXT PortReplica of connector on rear of cameraMaintains functionality of external communication, R/S, and powerNote this slot is not swappable2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)2 pin LEMO - 12V UnregulatedARRI standard wiringThis slot can be swapped for Hirose, 4pin LEMO, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable3 pin Fischer - 24V RegulatedRegulator built in to convert battery voltage to 24VMaximum 3A shared between slot 4/5Note this slot is not swappable4 pin Mini XLR - 12V InputHot swappable power input with included 7 inch pigtail cable for standard 4 pin XLR (12V nominal)Capable of providing power to accessories and camera with out brick battery attachedNote this slot is not swappable
Specifications
Weight 534 gDimensions 90 mm x 146 mm x 43mm
Versandkostenfrei
Wooden Camera D-Box (RED DSMC2, Gold Mount)
1.150,00 €*
Brutto: 1.368,50 €
Wooden Camera D-Box (RED DSMC2, Gold Mount)
SKU: 234000
Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods.
Connectors on the D-Box (Weapon/Epic-W/Scarlet-W/Raven, Gold Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the Wooden Camera D-Box defaults to the DC input, leaving the battery fully charged.
Overview
Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included.
Specifications
Weight: 610g Dimensions: 228.6 mm x 177.8 mm x 127 mm
D-Box Connections
1. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated- ARRI standard wiring4. 2 pin LEMO - 12V Unregulated- ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated- Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected
Versandkostenfrei
Wooden Camera D-Box (RED DSMC2, Power Distribution Portion Only)
640,00 €*
Brutto: 761,60 €

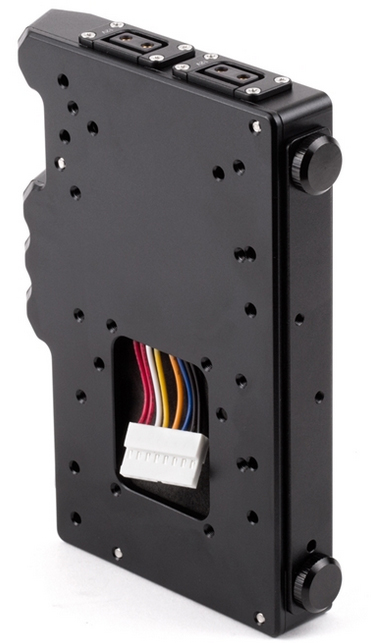

Wooden Camera D-Box (RED DSMC2, Power Distribution Portion Only)
SKU: 235000
Wooden Camera D-Box (Weapon, Power Distribution Portion Only) is for owners of Cable-less V-Mount, Blueshape, of Gold Mount that want to add power distribution, standardized remote start/stop, and hot swap abilities to their RED DSMC2 camera. The completed Wooden Camera D-Box assembly is tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods.
Connectors on the D-Box are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged.
Overview
When combined with V-Mount or Gold Mount plate, one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included.
Specifications
Weight: 362.8 gDimensions: 228.6 x 177.8 x 127 mm
D-Box Connections
1. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated- ARRI standard wiring4. 2 pin LEMO - 12V Unregulated- ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated- Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected
Versandkostenfrei
Wooden Camera D-Box (RED DSMC2, V-Mount)
1.150,00 €*
Brutto: 1.368,50 €
Wooden Camera D-Box (RED DSMC2, V-Mount)
SKU: 233900
Wooden Camera D-Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the RED DSMC2 cameras. The D-Box is completely tool-less for installation and utilizes our Cable-less interface which attaches directly to the back of the camera body, Base Expander Module, REDVolt Expander Module, and the OffHollywood O-Mods.
Connectors on the -Box (Weapon/Epic-W/Scarlet-W/Raven, V-Mount) are contoured to match the Expander Modules' which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is the same as the camera's LEMO allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged.
Overview
Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap is obscured by the right side power outputs. Inside the D-Box is a 10A fuse and replacement fuses are included.
Specifications
Weight: 610gDimensions: 228.6 mm x 177.8 mm x 127 mm
D-Box Connections
1. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO2. D-Tap - 12V Unregulated- This slot can be swapped for Hirose, 2pin LEMO, or 4pin LEMO3. 2 pin LEMO - 12V Unregulated- ARRI standard wiring4. 2 pin LEMO - 12V Unregulated- ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 3A shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. USB - 5v Regulated- Provides 2A for iPhone/iPad charging8. DC Input - 12-16V- DC input on the D-Box is the same as the camera's LEMO- Priority is given to DC Input to preserve battery charge when both sources connected
Versandkostenfrei
Wooden Camera D-Box (Sony BURANO) A00543
859,00 €*
Brutto: 1.022,21 €
Mount option:
V-Mount
Wooden Camera D-Box (Sony BURANO)
Erweitern Sie Ihr Kamerasystem um zusätzliche Stromversorgungsoptionen für die Sony BURANO, indem Sie die D-Box an Ihr Kamerasystem anschließen. Die D-Box bietet zusätzliche 2-polige 12-V-Anschlüsse, einen D-Tap-Anschluss und 3-polige 24-V-Stromversorgungsoptionen. Die D-Box bietet Hot-Swap-Fähigkeiten, wenn der Strom an den DC-Eingang und einen On-Board-Akku angeschlossen ist. Wählen Sie zwischen einer Gold-Mount- oder V-Mount-Option.D-Box V-Mount (Sony BURANO): Gewicht: 400,5 g | Abmessungen: 96 x 47 x 135 mmD-Box Gold Mount (Sony BURANO): Gewicht: 394,6 g | Abmessungen: 100 x 38 x 136 mm
Versandkostenfrei
Wooden Camera D-Box (Sony Rialto 2)
519,00 €*
Brutto: 617,61 €
Y Cable:
110 inch/279 cm
Wooden Camera D-Box (Sony Rialto 2)
D-Box for Sony Rialto Power Strip provides 2x two-pin LEMOs at 12V, two three-pin Fischers at 24V with R/S, and one D-Tap at 12V. Five self-securing closure cable ties attach the included Y cable to the Rialto Head cable, and a new offset bracket allows you to seamlessly mount this indispensable distro module on the Rialto 2’s new extruded form factor.
A00326 | D-Box Sony Rialto 2 Power Strip with Y Cable (110 inch/279 cm) Weight: 278 gDimensions: 46.5 mm x 170 mm x 180 mm
A00324 | D-Box Sony Rialto 2 Power Strip with Y Cable (220 inch/559 cm) Weight: 378 gDimensions: 200 mm x 200 mm x 30 mm
Included Items
D-Box Sony Rialto Power StripD-Box Extension Bracket (Sony Rialto 2)D-Box Power Strip Replacement Y Cable (110 inch/279 cm) / (220 inch/559 cm)
Versandkostenfrei
Wooden Camera D-Box (Sony Venice, Venice 2, V-Mount)
1.850,00 €*
Brutto: 2.201,50 €
Wooden Camera D-Box (Sony Venice, Venice 2, V-Mount)
D-Box (Sony Venice, Venice 2, V-Mount) is a custom version of our popular D-Box™ that adds power distribution, standardized remote start/stop, and hot swap abilities for the Sony Venice, Sony Venice 2 camera. The D-Box™ main unit attaches to the back of the AXS-R7 or to the V-Mount plate on the camera rear and the Power Strip portion attaches to the top right side of the camera via a 3pin Fischer and the tape hook threaded hole.
Connectors on the D-Box™ Power Strip are contoured to match the camera profile and connector angle which allows for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port including the ARRI UMC-4 / WCU-4. The DC input on the D-Box™ is the same as the camera's 4pin XLR connector allowing for an AC power supply, external power plate, or VCLX block battery to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box™ defaults to the DC input, leaving the onboard battery fully charged.
Physical fuses have been replaced by a processor controlled amp limit which is settable to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.
The "DC IN" and "BATT" LEDs are dual LEDs. This means the LED If battery voltage is above 12.5V the LED will be green. If the battery voltage is below 12V the LED will be red. If the battery voltage is between those values the LED will be orange (red + green). Flashing may occur during phase transition.
Highest quality Anton Bauer components are used in the V-Mount assembly and the unibody power plate design is both extremely durable and lightweight.
Interfaces
1x V-Mount Power Plate2x 3pin Fischer at 24V with Run Stop- Regulator built in to convert battery voltage to 24V- Maximum 3A surge, 2.5A sustained shared between connectors2x 2pin at 12V unregulated- ARRI standard wiring- Maximum 7A current rating, shared between connectors2x D-Tap at 12V unregulated- Maximum 9A current rating, shared between connectors1x 5V USB - Maximum 2.5A1x 4pin XLR DC Input- For use with 14.4V block batteries- DC Input takes priority when voltage is between 12.9–18V- Accessories are powered when utilizing DC Input
Specifications
Weight: 484gDimensions: 31.8 mm x 114.3 mm x 133.35 mm
Versandkostenfrei
Wooden Camera D-Box (URSA Mini, URSA Mini Pro, Gold Mount)
900,00 €*
Brutto: 1.071,00 €
Wooden Camera D-Box (URSA Mini, URSA Mini Pro, Gold Mount)
SKU: 239600
Wooden Camera D-Box (URSA Mini, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap capability to the Blackmagic URSA Mini Pro EF Mount, PL Mount, and B4 Mount cameras. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop. Connectors on the D-Box are contoured inline with the URSA Mini body, streamlining port connections and cable management. The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device. The D-Box (URSA Mini, Gold Mount) is equipped with a Mini 4pin XLR DC Input and includes a Mini 4pin XLR to Full 4pin XLR pigtail cable allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. Authentic Anton Bauer Gold Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3-4A in standard configuration. Although the remaining power is available from the D-Taps, LEMOs, Fischers, etc., it is best to limit the power draw to 5A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power.
D-Box Connections
1. D-Tap - 12V Unregulated2. USB - 5V Regulated3. 2 pin LEMO - 12V Unregulated- ARRI standard wiring4. 2 pin LEMO - 12V Unregulated- ARRI standard wiring5. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 2A continuous (3A surge) shared between the two 3pin Fischers- ARRI standard start/stop capabilities6. 3 pin Fischer - 24V Regulated- Regulator built in to convert battery voltage to 24V- Maximum 2A continuous (3A surge) shared between the two 3pin Fischers- ARRI standard start/stop capabilities7. DC Input - 12-16V- DC input on the D-Box is a Mini 4pin XLR but a pigtail cable is included to full-size 4pin XLR- Priority is given to DC Input to preserve battery charge when both sources connected
Camera Compatibility
Blackmagic URSA Mini 4KBlackmagic URSA Mini 4.6KBlackmagic URSA Mini Pro
Versandkostenfrei
Wooden Camera D-Box (URSA Mini, URSA Mini Pro, V-Mount)
900,00 €*
Brutto: 1.071,00 €
Wooden Camera D-Box (URSA Mini, URSA Mini Pro, V-Mount)
SKU: 239500
Wooden Camera D-Box (URSA Mini, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the Blackmagic URSA Mini Pro, EF, PL, B4, etc cameras. The D-Box (URSA Mini, V-Mount) attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop. Connectors on the D-Box are contoured to match the URSA Mini's which allow for all cables to be installed with no collisions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3pin Fischer port. The DC input on the D-Box is a Mini 4pin XLR and the kit also includes a pigtail cable which converts to full size 4 pin XLR (same as the camera's) allowing for an AC power supply or external power plate to be connected to power accessories and camera during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3-4A in standard configuration. Although the remaining power is available from the D-Taps, LEMOs, Fischers, etc., it is best to limit the power draw to 5A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power.
D-Box Connections
1. D-Tap - 12V Unregulated 2. USB - 5V Regulated 3. 2 pin LEMO - 12V Unregulated - ARRI standard wiring 4. 2 pin LEMO - 12V Unregulated - ARRI standard wiring 5. 3 pin Fischer - 24V Regulated - Regulator built in to convert battery voltage to 24V - Maximum 2A continuous (3A surge) shared between the two 3pin Fischers - ARRI standard start/stop capabilities 6. 3 pin Fischer - 24V Regulated - Regulator built in to convert battery voltage to 24V- Maximum 2A continuous (3A surge) shared between the two 3pin Fischers - ARRI standard start/stop capabilities 7. DC Input - 12-16V - DC input on the D-Box is a Mini 4pin XLR but a pigtail cable is included to full-size 4pin XLR - Priority is given to DC Input to preserve battery charge when both sources connected
Camera Compatibility
Blackmagic URSA Mini 4KBlackmagic URSA Mini 4.6KBlackmagic URSA Mini Pro
Versandkostenfrei
Wooden Camera D-Box Plus (ARRI Alexa Mini, V-Mount)
1.800,00 €*
Brutto: 2.142,00 €

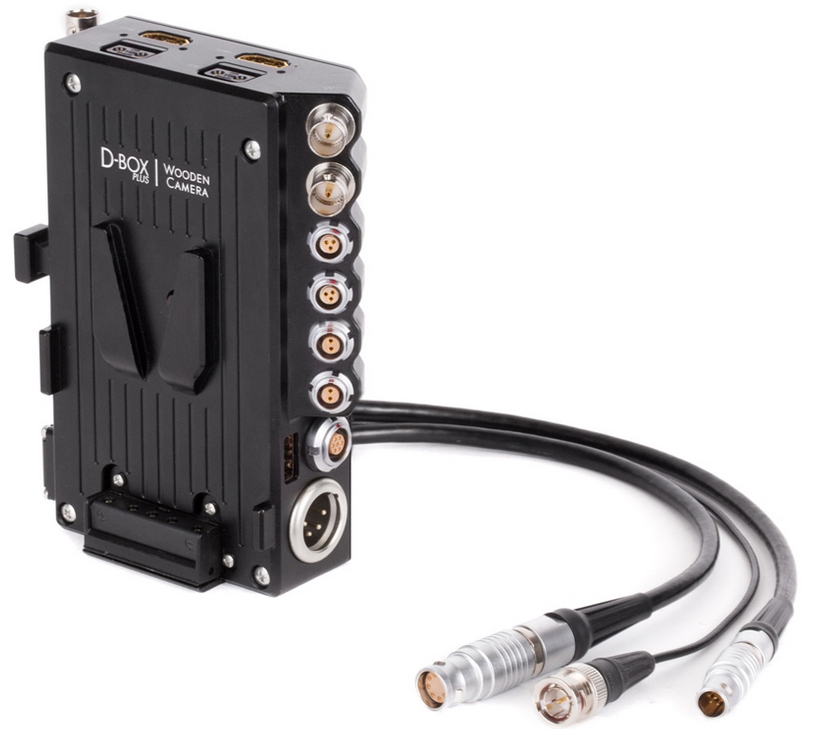

Wooden Camera D-Box Plus (ARRI Alexa Mini, V-Mount)
SKU: 253700
Die Wooden Camera D-Box Plus (ARRI Alexa Mini, V-Mount) ist eine Weiterentwicklung der sehr beliebten D-Box Alexa Mini. Die D-Box Plus (ARRI Alexa Mini, V-Mount) ist mit den Power-, EXT- und SDI-Anschlüssen der Kamera verbunden. Der DC-Eingang ist jetzt ein 4-poliger XLR-Anschluss in voller Größe und wird priorisiert, damit er zuerst verwendet werden kann und damit der eingebaute Akku vollständig geladen bleibt. Physikalische Sicherungen wurden durch einen prozessorgesteuerten Verstärkergrenzwert ersetzt, der mit dem Schiebeschalter auf der Bedienerseite auf 3,8, 5,8 oder 9 Ampere eingestellt werden kann. Sollte der Benutzer den eingestellten Strom für Zubehör überschreiten, werden nur die Zubehörausgänge deaktiviert, so dass die Kamera normal weiter läuft. Sobald die aktuelle Stromlast durch Entfernen von Zubehör oder Neukonfiguration reduziert wurde, kann die Reset-Taste gedrückt werden, um die Stromversorgung des Zubehörs wieder zu aktivieren. Die LEDs "DC IN" und "BATT" sind zwei LEDs. Dies bedeutet wenn die Batteriespannung über 12,5 V liegt, leuchtet die LED grün. Wenn die Batteriespannung unter 12 V liegt, leuchtet die LED rot. Wenn die Batteriespannung zwischen diesen Werten liegt, leuchtet die LED orange (rot + grün). Blinken kann während des Phasenübergangs auftreten. Anton Bauer Komponenten von höchster Qualität wurden in der V-Mount Montage verwendet und das Unibody Power Plate Design ist extrem haltbar und leicht.
Anschlüsse
1 x V-Mount-Netzteilplatte 3 x HD-SDI-Ausgänge 2 x HDMI-Ausgänge 2 x 3pin Fischer bei 24V mit Run / Stop - Regler eingebaut, um die Batteriespannung auf 24 V umzuwandeln - Maximaler 3A-Anstieg, 2,5 A, der zwischen den Anschlüssen geteilt wird 2 x 2pin LEMO bei 12V ungeregelt - ARRI Standardbelegung der Kabel 2 x D-Tap bei 12V ungeregelt 1 x 5V USB 1 x EXT-Anschluss - Kopie der Anschlüsse der Rückseite der Kamera - Behält die Funktionalität der externen Kommunikation für Starlite-Monitor, R / S und Stromversorgung bei 1 x 4pin XLR DC Eingang - Hot-Swapping mit integriertem Akku - Stromversorgung von Zubehör und Kamera ohne angeflanschten V-Mount Akku möglich
Kabel zur Kamera
1x 8pin LEMO-kompatibles Kabel (16 Zoll) 1x 7pin LEMO-kompatibles Kabel (16 Zoll) 1x HD-SDI-Kabel (16 Zoll) Der Boden der D-Box hat (2) 1 / 4-20 Gewinde, die direkt an den Wooden Camera Battery Swing Bracket Only (für D-Box Plus), Rod Clamp (15mm LW), Rod Clamp (15mm Studio) und Stangenklemme (19mm) passen.
Verwenden Sie für ein verstellbares Befestigungssystem den Akkuhalter. Dieses Produkt kann an den ARRI BAP-1 angeschlossen werden (siehe hierzu die Anweisungen dazu, die in der Verpackung enthalten sind). Die in dieser Baugruppe verwendeten Steckverbinder werden nicht von LEMO hergestellt, sondern entsprechen den gleichen Spezifikationen und sind LEMO-kompatibel.
Spezifikationen
Gewicht: 640 Gramm Abmessungen: 114,4 x 146 x 43 mm
Wooden Camera D-Box Power Strip (Sony Rialto, Rialto 2)
350,00 €*
Brutto: 416,50 €
Wooden Camera D-Box Power Strip (Sony Rialto, Rialto 2)
SKU: A00329
D-Box für Sony Rialto Power Strip bietet 2x zweipolige LEMOs bei 12V, zwei dreipolige Fischers bei 24V mit R/S, und einen D-Tap bei 12V.Gewicht: 77 gAbmessungen: 23,6 x 88 x 40,4 mm
