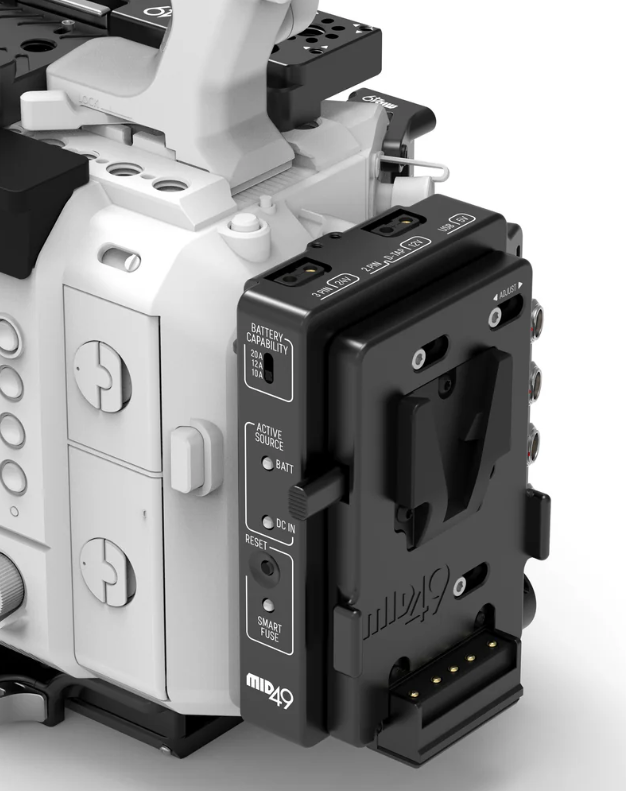

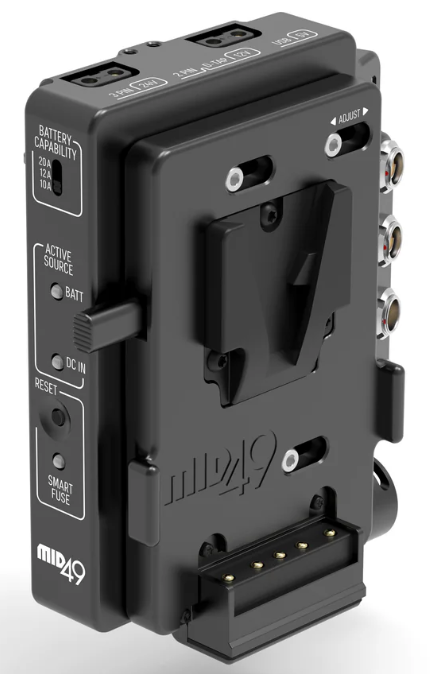

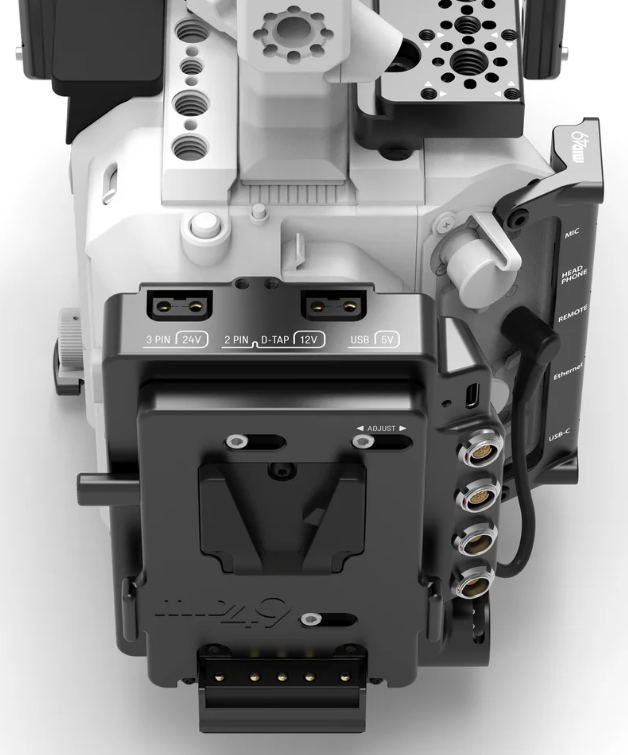

MID49 Power Distribution Box DB-13 (FUJIFILM GFX ETERNA 55, V-Mount)

MID49 Power Distribution Box DB-8 (Sony Burano, V-Mount) Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices. Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.INPUTSBATT V-Mount plate with SMBus communicationDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-9 (Blackmagic PYXIS, V-Mount)Power Distribution Box DB-9 (Blackmagic PYXIS, V-Mount) attaches directly to the camera body using the rear two 1/4-20 threaded holes and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable REMOTE USB-C cable enables remote start/stop capability using 3pin Fischer devices.Also available in a hinged 15mm LW Rod Mount version for attaching further away from the camera.Hot-swap between on-board battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-4 will switch to an onboard battery.The mount design allows a Sony BP-U35 battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-9 up and release the battery.The DB-9 can also be separated from its camera mount, revealing a 15mm rod clamp with an internal friction sleeve.With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the C80 uses approximately 1.8A at 14V so when using a 10A capable battery, the remaining 8.2A is allocated for accessory use. If an accessory configuration exceeds the 8.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 8.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.User changeable Gold Mount Plates are available as wellINPUTS BATT V-Mount plateDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-4 (Canon C80, V-Mount)Power Distribution Box DB-4 (Canon C80, V-Mount) attaches directly to the shoe mount of the C80 using locking pins and pressure and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable REMOTE LANC cable enables remote start/stop capability using 3pin Fischer devices.Also available in a hinged 15mm LW Rod Mount version for attaching further away from the camera.Hot-swap between on-board battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-4 will switch to an onboard battery. The shoe mount design allows Canon's BP-A30N battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-4 up and release the battery. Note that the DB-4 provides 19.5V to the camera so that the camera will default to the DC input.The DB-4 can also be separated from its shoe mount, revealing a 15mm rod clamp with an internal friction sleeve. With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the C80 uses approximately 1.0A at 14V so when using a 10A capable battery, the remaining 9.0A is allocated for accessory use. If an accessory configuration exceeds the 9.0A limit, accessory power is cut off, leaving the camera powered.The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 9.0A, the RESET button can be pressed, and power will be re-enabled to accessory outputs. In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.The DB-4 is also compatible with Canon C70 but that camera's shoe is in a different location so the Rod Mounted version is suggested. User changeable Gold Mount Plates are available as well.INPUTSBATT V-Mount plateDC IN 4pin XLR (11-17V)OUTPUTS2x D-Tap (battery voltage)2x 3pin (24V at 2.5A with run/stop)2x 2pin (battery voltage)1x USB-C PD (5V at 3A with thread lock)

MID49 Power Distribution Box DB-12 (Blackmagic URSA Cine, V-Mount High Voltage)Power Distribution Box DB-12 (Blackmagic URSA Cine, V-Mount High Voltage) attaches directly to the camera body using five M3 screws and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors.The included USB-C cable can be installed inside DB-12 and connected to the top-rear port on the camera body to enable remote start/stop capability using 3-pin Fischer devices. =Hot-swap between on-board battery and 8pin LEMO compatible connector without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 22.8V at which point, the DB-12 will switch to an onboard battery.With the SMART FUSE design, camera power is monitored, and the remaining power budget is allocated to accessories. For example, the URSA Cine uses approximately 4.8A at 28V, so when using a 10A capable battery, the remaining 5.2A is allocated for accessory use. If an accessory configuration exceeds the 5.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 5.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.INPUTSBATT V-Mount High Voltage PlateDC IN 8pin (21-34V)OUTPUTS2x D-Tap (15V regulated)2x 3pin (battery voltage with run/stop)2x 2pin (15V regulated)1x USB-C PD (5V at 3A with thread lock)Also available in a Gold Mount and B-Mount versions.COMPATIBLE CAMERA MODELSURSA Cine 12K LFURSA Cine 17K 65URSA Cine ImmersiveCOMPATIBLE BATTERIESThis product is only compatible with newer Core HIGH VOLTAGE V-Mount batteries, which are listed below and have a current rating of 10A at 28V.HLX-9MXS Core SWX Helix Max 98WhHLX-150MXS Core SWX Helix Max 147WhHLX-275MXV Core SWX Helix Max 275HLX-360MXV Core SWX Helix Max 360HLX-99UMXV Core SWX Helix Max Ultra 99WhHLX-160UMXV Core SWX Helix Max Ultra 156WhHLX-300UMXV Core SWX Helix Max Ultra 297WhHLX-400UMXV Core SWX Helix Max Ultra 395WhAPX-360HV Core SWX APEX 360 High Voltage
