ATOMOS Shogun AV-19The Shogun AV-19 is a powerful 19-inch 4K HDR monitor-recorder-switcher built for professional live production, broadcast, and video village environments. Its rugged rack-mountable design and crisp DCI-P3 display make it an ideal central hub for multi-camera monitoring and -recording, featuring built-in live switching with four ISO feeds plus a fifth program channel for smooth real-time operation. Features19-inch, 4K HDR DCI-P3 7RU rack-mountable monitorRecord in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storageRecord up to four isolated camera feeds (ISOs) plus a fifth program outputLive multi-camera monitoring2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audioComprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & moreSend and receive NDI® HX3 over EthernetUser-definable function buttonsLog to LUT viewing, supporting 3D & .cube Technical dataProduct SpecificationsDimensions (W x H x D mm): 482mm x 310mm x 60mmWeight: 5.22 KgMount points: 19-inch rack earsRack height: 7 RUVESA mount: NoEnvironmentalAmbient operating temperature: Up to 40 degrees CelsiusStorage temperature: -20 to 60 degrees CelsiusRelative humidity: 0-90% (non-condensing)PowerInput voltage: 12-24VAC adapter DC: 4-pin XLR, 12V 10A, 2.1mm barrelBattery input: 2x DC 4-pin XLROperating power: 75WCompatible batteries: Connect to either/both DC 4-pin XLR inputBattery voltage: 14.4V nominalBattery power: Single battery input via dedicated 4-pin XLRBattery hot-swap: Yes, with dual inputScreenDisplay size: 19"Resolution: 1920 x 1080Pixel density: 116 ppiBacklight: LED =Viewing angle: 178 degreesAspect ratio: 16:9Brightness: 1000 nitsContrast ratio: 1000:1ColorSize: 19 inch panelColor depth: 10-bit (8+2 FRC)Color gamut: DCI-P3 100%Color calibration: Factory calibrated, supports LUT importVideo InputSDI: 2 x 12G-SDI input (BNC)HDMI: 1 x HDMI 2.0 inputVideo OutputSDI: 2 x 12G-SDI output (BNC)HDMI: 1 x HDMI 2.0 outputAudioAnalog audio in: 3.5mm stereo inputAnalog audio out: 3.5mm stereo outputSpeakers: Built-in stereoMonitoring ToolsWaveform: Luma / RGB / ParadeVectorscope: YesHistogram: YesFalse color: YesZebra: YesFocus peaking: YesRemote ControlHDMI: Auto HDMI trigger, supported protocols - Canon, Sony, AtomosSDI: SDI trigger camera selectableSerial 2.5mm jack: Calibration via optional USB to serial cable In the boxShogun AV-19 monitor-recorder-switcher4-pin XLR power supply5x international IEC power cablesRack nuts and bolts (x10)Screen clothQuick-Start-Guide

Blackmagic SmartScope Duo 4K HDL-SMTWSCOPEDUO4K2 SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view! The Blackmagic SmartScope Duo 4K model includes built in waveform monitoring when you need to analyze image quality more accurately than simply looking at the picture! You get seven of the most popular scopes most widely used in broadcast and post production facilities. Scope displays include waveform, vectorscope, RGB parade, YUV parade, histogram, audio phase and level scopes, and of course you can simply select to view the video itself! Now you don’t have to guess what your video and audio levels are, you can monitor them with precision using SmartScope Duo 4K! What's Included 1 x SmartScope Duo 4K1 x Power Supply1 x Software-CD

Blackmagic SmartView 4K G3Blackmagic Design SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs! Third generation of Blackmagic's popular 4K rack-mounted monitor allows users to connect directly to IP-based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It also includes 3D LUTs and monitoring controls such as focus peaking, framing guides, safe area and more. SmartView 4K G3 features built in optical and copper SMPTE-2110 IP video connections so customers can connect directly to IP based broadcast systems. Customers also get two 12G-SDI inputs for connecting to a wide range of professional video equipment. Plus both the 12G-SDI and 2110 video inputs can output to a 12G-SDI loop output connection.SmartView 4K features an incredibly strong machined aluminum metal design with crisp clean lines. Plus SmartView 4K is only a few inches deep. Because monitors are often installed at the top of equipment racks, this thin design allows a large area behind the monitor to better ventilate the whole rack and keep all the equipment cool. Along the bottom of the SmartView 4K is a range of button controls that are tilted slightly so they're easier to press. On the rear of the monitor are all the video connections, plus there's even a VESA mounting point. SmartView 4K G3 FeaturesRack mount monitor with SMPTE-2110 IP and 12G-SDI video connectionsSlim design for better rack ventilationHigh resolution, Ultra HD displayMonitoring controls including brightness, H/V and zoomIncludes frame guides and focus peakingIncludes 3D LUT for monitoringSupports all video standards up to 2160p60Conforms to SMPTE-2110 standard for IP videoIncludes NMOS protocol for virtual routingIncludes free SDK for integration into broadcast automation systems

Blackmagic SmartView Duo 2 HDL-SMTVDUO Dual 8 inch 3 RU SDI/HD-SDI/3G-SDI monitoring with central software control Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. Blackmagic SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need! What's included SmartView DuoPower SuppySoftware-CD

DataVideo TLM-170FR The DataVideo TLM-170FR is a rack mount 17-inch 4K UHD LCD monitor which includes a Full HD 1920 x 1080px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 700:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output. The Datavideo TLM-170F series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170F series are ideal for broadcast and live production applications. Features 17-inch ScopeView Production MonitorSupports DCI P3 colour space 4K/60p and UHD 4K/60p video input and outputSupports Multiple Input and Output ConfigurationsSupports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and moreTally light included. Best use for live production

DataVideo TLM-170KR The TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output. The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications. The Datavideo TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HDpanel.

FeelWorld T51 T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800x480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly. 5-inch 800x480 LCD TFT Panel with LED backlight The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140° / Vertical: 120°. Easy to operate, time-saving Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, Multiple Inputs and Outputs SDI / HDMI / CVBS / AudioInput: 3G-SDI X 1 HDMI X 1 CVBS X 1 Auido (L/R) X 2 Output: 3G-SDI X 1 HDMI X 1 Video X 1 Audio: Stereo Headphone 3-color Tally Light DB-15 input signal There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.Stablity and Reliability As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.

Lilliput RM-1730S The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It provides a brightness rating of 300 cd/m2, a contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope. Technical data Display Size: 17.3”Resolution: 1920×1080Brightness: 330cd/m²Aspect ratio: 16:9Contrast: 700:1Viewing Angle: 178°/178°(H/V)Video InputSDI: 1×3GHDMI: 1xHDMI 1.4DVI: 1LAN: 1 Video Loop Output （SDI / HDMI cross conversion） SDI: 1x3GHDMI: 1xHDMI 1.4 Supported In / Out Formats SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 Audio In/Out (48kHz PCM Audio) SDI: 12ch 48kHz 24-bitHDMI: 2ch 24-bitEar Jack: 3.5mmBuilt-in Speakers: 2 Power Operating power: ≤32WDC In: DC 10-18V Environment Operating Temperature: -20℃~60℃Storage Temperature: -30℃~70℃ Other Dimension(LWD): 482.5 mm x 44 mm x 507.5mmWeight: 8.6kg (with case)

Lilliput RM-1731Introducing Lilliput RM-1731, a powerful 17.3-inch IPS display designed for optimal viewing experiences. With a Full HD resolution of 1920x1080 and an aspect ratio of 16:9, it delivers crisp, clear visuals perfect for various applications. Housed in a sleek metal casing, it exudes durability and style. With a brightness of 300 cd/m^2, your content shines even in well-lit environments. Equipped with HDMI and LAN inputs, it offers versatile connectivity options for seamless integration into your setup. Whether for work or entertainment, this monitor ensures immersive viewing experiences with impeccable clarity and reliability. Screen Size: 17.3 inchesResolution: 1920x1080Screen: IPSAspect Ratio: 16:9Housing Material: MetalBrightness: 300 cd/m^2Inputs: HDMI, LAN Technical dataSize: 17.3”Resolution: 1920×1080Brightness: 300cd/m²Aspect ratio: 16:9Contrast: 800:1Viewing Angle: 170°/170°(H/V)Video Loop InputHDMI: 1×HDMI 2.0LAN: 1Video Loop OutputHDMI: 1×HDMI 2.0Supported In / Out FormatsSDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60…HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60Audio In/OutSDI: 12ch 48kHz 24-bitHDMI: 8ch 24-bitEar Jack: 3.5mm – 2ch 48kHz 24-bitBuilt-in Speakers: 2OtherOperating power: ≤14W(12V)DC In: DC 10-24VOperating Temperature: 0℃~50℃Storage Temperature: -20℃~60℃Dimension(LWD): 482.5×44×507.5mmWeight: 8.9kg (with case)

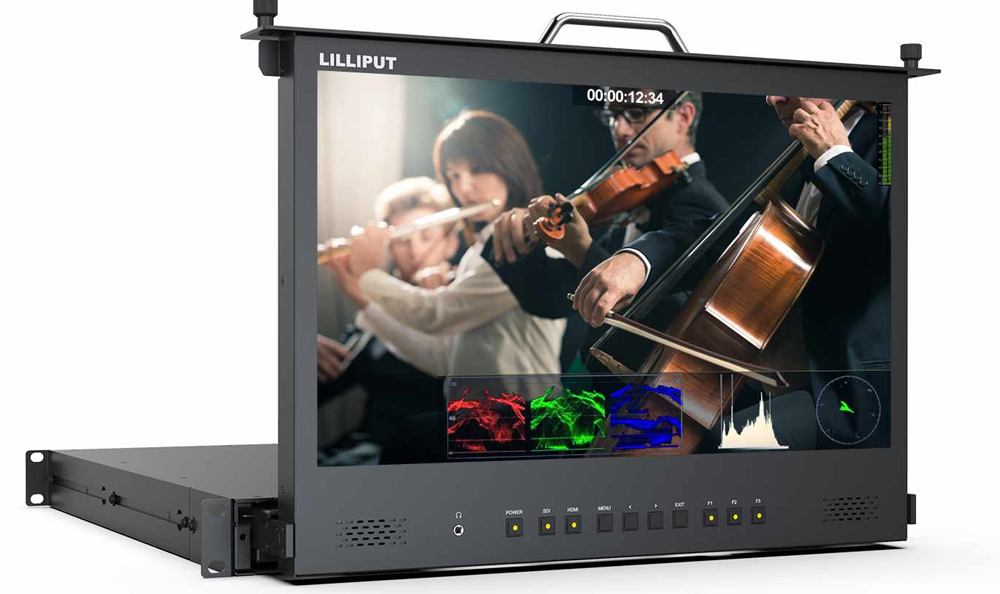

Lilliput RM-1731S 17.3" 1RU rack rackmount monitor with SDIThe LILLIPUT 1RU RACK MOUNT MONITOR is specially designed for broadcast and live streaming applications in cabinets and broadcast trucks. With its 17.3"IPS display and compact 1RU rack design, it offers a space-saving monitoring solution for professional production environments. Technical dataSize: 17.3"Resolution: 1920×1080Brightness: 300cd/m²Aspect ratio: 16:9Contrast: 800:1Viewing angle: 170°/170°(H/V)SDI: 1×3GHDMI: 1×HDMI 2.0LAN: 1SDI: 1×3GHDMI: 1×HDMI 2.0SDI: 720p 50/60, 1080i 50/60, 1080PSF 24/25/30, 1080p 24/25/30/50/60HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60SDI: 12ch 48kHz 24-bitHDMI: 8ch 24-bitStuds: 3.5 mm - 2 channels 48 kHz 24 BitBuilt-in Speakers: 2Operating power: ≤14W(12V)DC: In DC 10-24VOperating temperature: 0°C~50°CStorage temperature: -20°C~60°CDimension (LWD): 482.5×44×507.5mmWeight: 8.9 kg

Marshall ML-454-V2 The Marshall ML-454 Quad 4.5" Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs. Features High resolution 1280 x 800 bright, colorful display with no-compromise input selections for each screenDigital inputs: HDMI, 3GSDIMulti-screens in 2RU(3.5") HeightSlim Compact Panel - only 1.4" deepBright screens with great off-axis performanceCompare to space wasting, complex multi-view systemsExcellent Power EfficiencySDI and AVBS inputs have active loop through outputsOn-screen 3-color Tallies

SEETEC P173-9HSD-RM The 17.3" 4K Rackmount Broadcast Monitor from SEETEC features a 1920 x 1080 display and supports up to UHD 4K30 signals. It offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. These connections are provided on the rear panel along with an integrated V-mount battery plate and 4-pin XLR and barrel power inputs. A headphone jack, built-in speakers, 3-color LED tally light, and control and function buttons are provided on the front. This rackmount version comes with rack ears with built-in handles on the front. The monitor's image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across the four front-panel function buttons. Key Features 1920 x 1080 resolution displaySupports up to UHD 4K30 signalsHDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputsHDMI, 3G-SDI, component BNC, composite BNC outputs178 / 178° viewing angleColor depth: 16.7 million colorsTally portBuilt-in red/green/yellow LED tally indicators3.5mm stereo headphone jackBuilt-in speakersIntegrated V-mount plate300 cd/m² brightness4-pin XLR and DC barrel power ports Image Analysis Functions Peaking focus assistCheck fieldCamera modePixel-to-pixelCenter markerSafe marker (80, 85, 90, 93, 96, 2.35:1)Image flip (horizontal, vertical, and horizontal and vertical)Image freezeZoom allU/D and L/R zoom

seetec SC173-HD-56 17.3" 1RU Pull-out Rack Mount Monitor. Broadcast monitoring for live production, broadcast and post production. The perfect rack mount monitoring solution for broadcasters. The metal housing SC173-HD-56 boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the SC173-HD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more! Features Full HD 1920x1080 Resolution1RU pull-out rackmount DesignRack-Mountable or Stand AloneSpace Saving & Portable with Handle2 Adjustable Function ButtonsMetal Housing ProtectionAdvanced Monitoring Tools Technical data Display: 17,3 Touch Screen: No Input: YPbPr, VGA, HDMI, DV-I, Audio  Resolution: HD

seetec SC173-HD-56 SDI SKU: SC173-HD-56 SDI seetec SC173-HD-56 SDI is 17.3" 1RU Pull-out Rack Mount Monitor offering broadcast monitoring for live production, broadcast and post production. The perfect rack mount monitoring solution for broadcasters. The metal housing SC173-HD-56 SDI boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including 3G-SDI BNC, HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the SC173-HD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more! Product Features Full HD 1920x1080 Resolution1RU pull-out rackmount DesignRack-Mountable or Stand AloneSpace Saving & Portable with Handle2 Adjustable Function ButtonsMetal Housing ProtectionAdvanced Monitoring Tools Technical data Display: 17,3 Touch Screen: No Input: YPbPr, VGA, HDMI, DV-I, Audio, 3G-SDI  Resolution: HD
