Wooden Camera Unified DSLR 15mm Baseplate
Free shipping
Product number:
SW23281
Wooden Camera Unified DSLR 15mm Baseplate
SKU: 243800

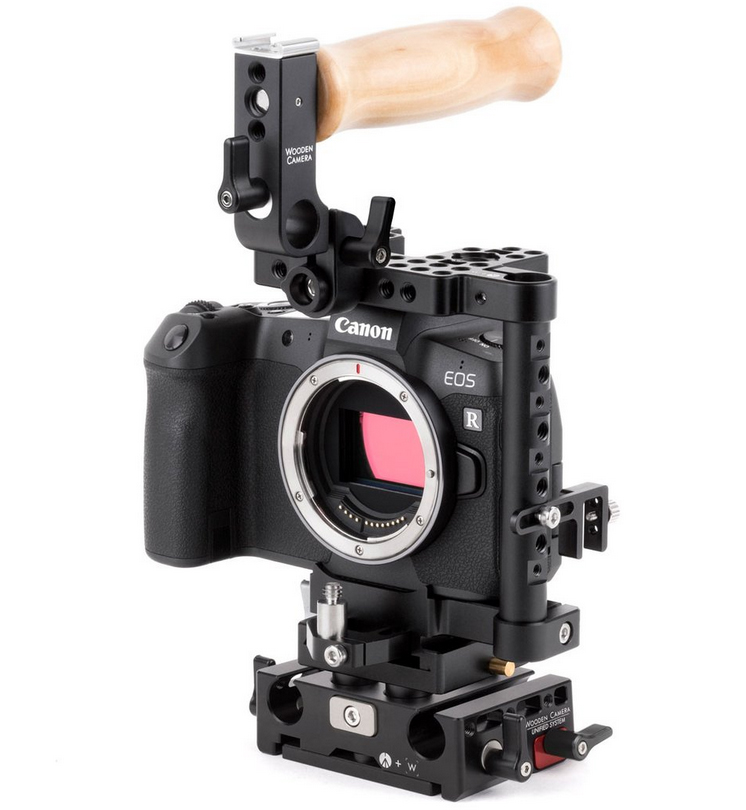

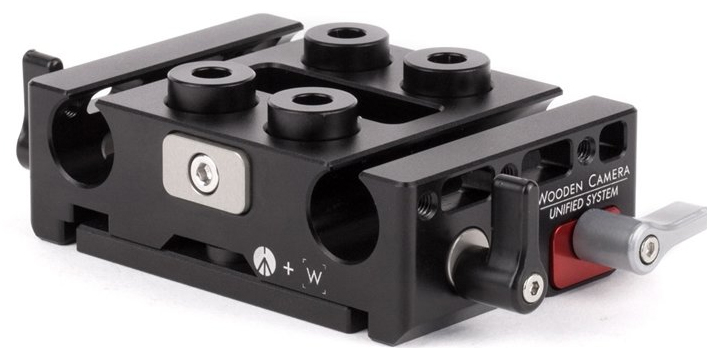

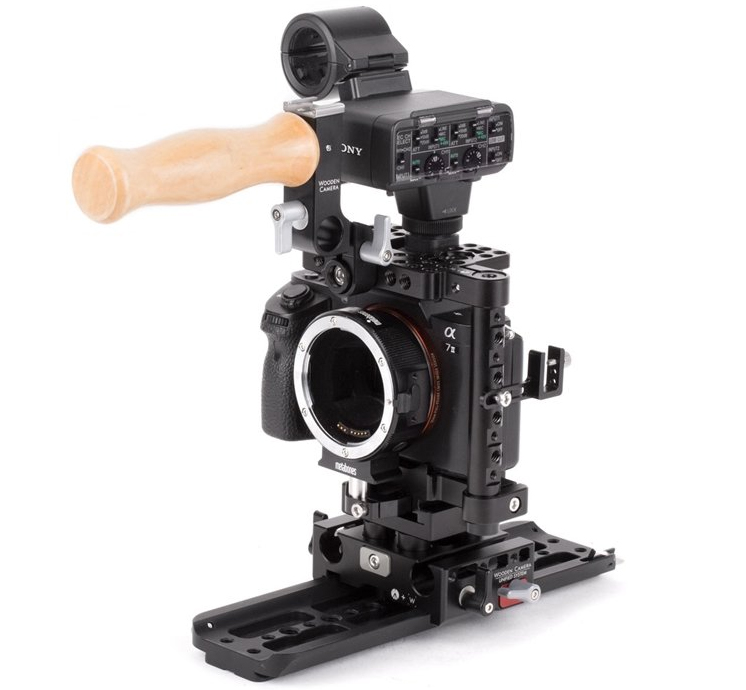

Unified DSLR 15mm Baseplate is a height adjustable baseplate attachment that provides 15mm lightweight rods at the correct lens height for DSLR cameras when combined with Unified DSLR Cage (Small) or Unified DSLR Cage (Medium). The Unified DSLR 15mm Baseplate has a native ARRI dovetail interface for direct mounting to 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.

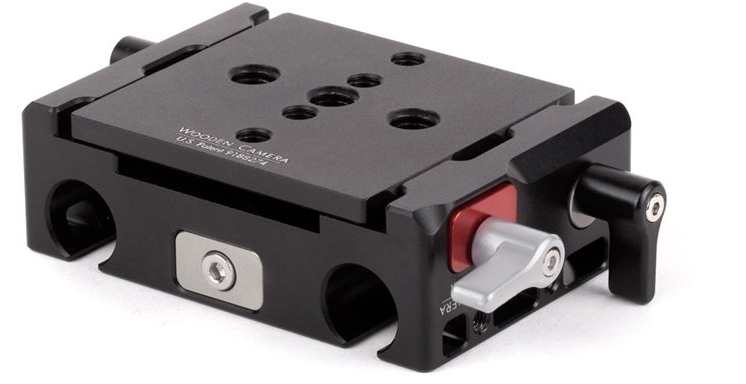

The included Lower Quick Dovetail portion can be attached to any tripod plate or ARRI standard bridge plate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio) providing studio rods at the correct lens height. Includes:
4 x 1/4-20 x 3/8 socket cap screws
Specifications
Weight: 202g
Dimensions: 63.5 mm x 114.3 mm x 38.1 mm
TOP-Handles - Camera cages - Camera plates - Camera brackets - Matte box - Battery plates - Power cables
Products from american producer Wooden Camera that offers useful solution for your video-audio equipment. The range of product concenrs
