Wooden Camera E-Mount to PL Mount Pro (Sony Alpha, FS7mkII, FX9)

PLN 2,621.81*

net: PLN 2,131.55

Prices incl. VAT plus shipping costs

Free shipping

Available, delivery time: 1 day

Product number: SW23415

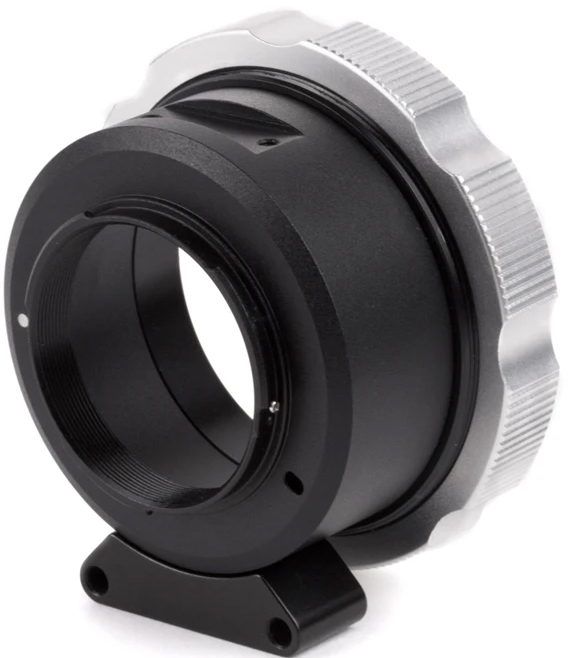

Wooden Camera E-Mount to PL Mount Pro

SKU: 233400

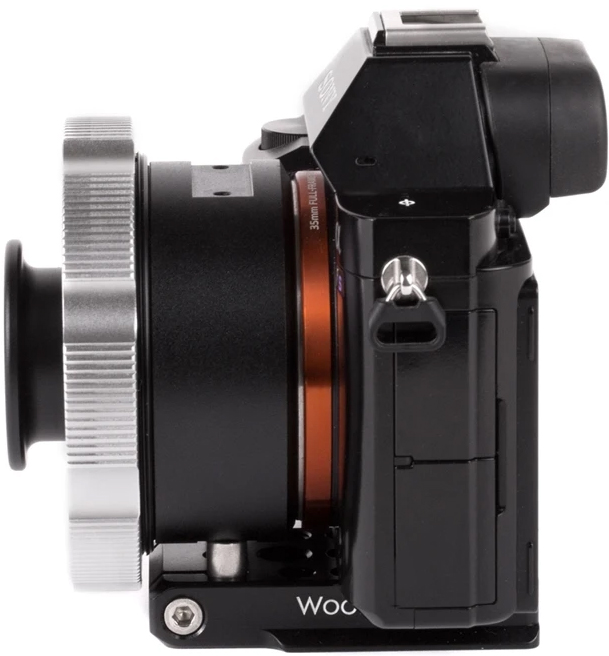

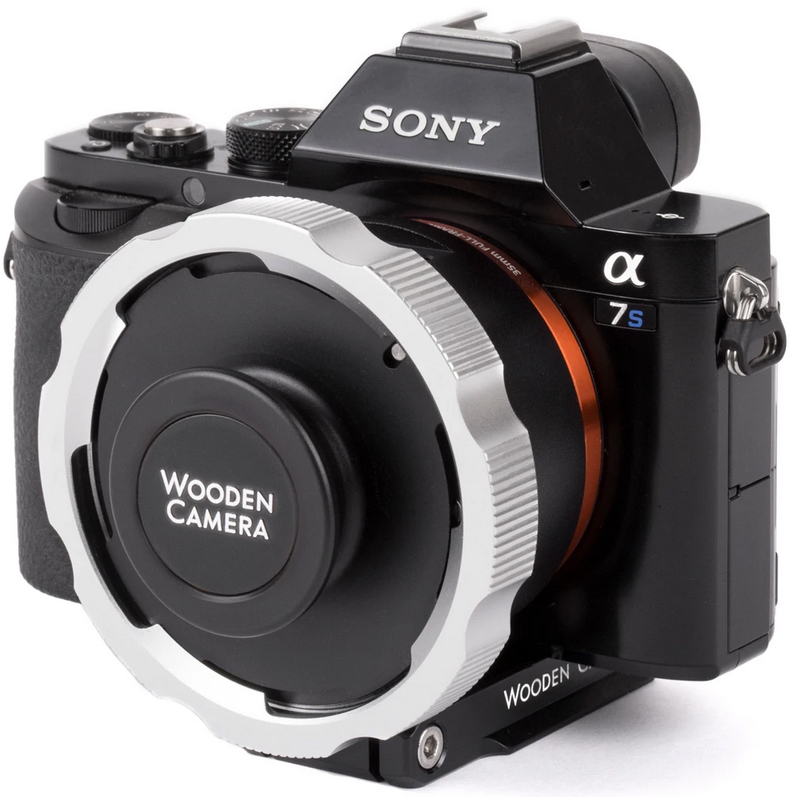

E-Mount to PL Mount Pro (Sony Alpha, FS7mkII, FX9) is a shimmable version of Wooden Camera's popular Sony E-Mount lens mount adapter that enables mounting of PL mount lenses onto the Sony E-Mount cameras including the Sony FX9 and FS7mkII. The FX9 and FS7mkII have positive locking E-Mounts which eliminate the need for the support foot, but if additional support is desired, use the 1/4-20 foot and combine with our Unified Baseplate (Sony FS7mkII, FX9) using the vertical support hole and the Unified Lens Adapter Support Kit. PL Cap included to prevent dust from entering sensor area when lens is not attached.

If you are using the E-Mount to PL Mount Pro without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

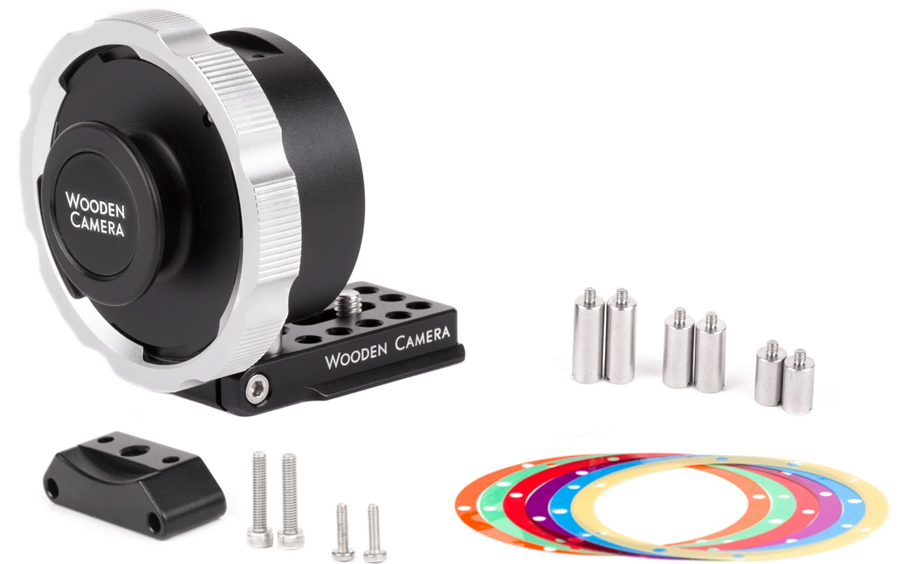

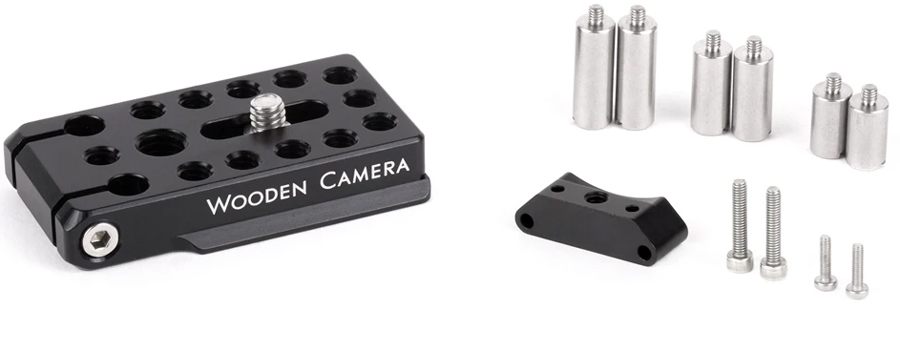

Includes

2 M4x20mm socket cap screw
1 1/4-20 Support Foot
1 Universal Support Foot

Specifications

Weight: 251g
Dimensions: 85.1 mm x 81.8 mm x 48 mm

Features

- 1/4-20 foot for attaching tripod plate or support

Shim set

stackable to achieve necessary thickness)

Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")

Compatibility

This adapter will also work with any Sony E-Mount camera like the below:
Sony FS7
Sony FS7mkII
Sony FS5
Sony FX9
Sony A7s, A7sII, A7r, A7rII, A6300
Sony FS700
Sony FS100
Many more!

TOP-Handles - Camera cages - Camera plates - Camera brackets - Matte box - Battery plates - Power cables

Products from american producer Wooden Camera that offers useful solution for your video-audio equipment. The range of product concenrs

Related links of the manufacturer

Further products by Wooden Camera

Accessory Items

Free shipping

Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro)

Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro) SKU: 269100 ARRI LPL Mount for Sony E-Mount Cameras allows ARRI LPL Signature Prime Lenses to be used with Sony E-Mount Full Frame Alpha series cameras. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified DSLR Cage natively using the vertical support hole and the Unified Lens Adapter Support Kit. LPL Cap included to prevent dust from entering sensor area when lens is not attached. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. LPL Mount is passive and does not communicate lens data to the camera. Specifications Weight: 216 gDimensions: 81,8 mm x 81,8 mm x 46.5 mm

PLN 3,010.43*

net: PLN 2,447.50

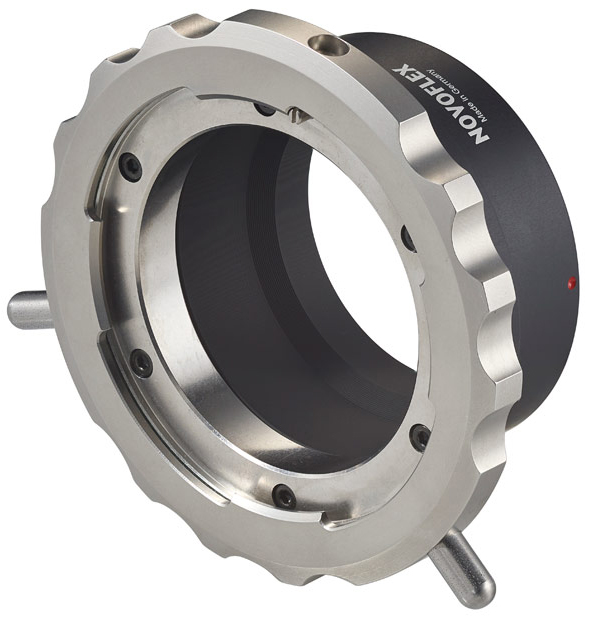

Novoflex Adapter PL-Mount-lenses to Sony E-Mount

Novoflex Adapter PL-Mount-lenses to Sony E-Mount SKU: NEX/PL Adapter PL-Mount-lenses to Sony E-MountPrecision made lens adapterexact compensation of the flange focal length difference of the two mountsconnected lenses can be manually focused up to infinityno information transmission between the lens and the cameraExposure metering in aperture priority mode or manually NOTE The correct thickness of the adapter can be adjusted precisely to the requirements of different cameras and video lenses with the supplied shim rings. A ring with 0.1mm thickness is mounted and rings with the following thicknesses are also included: 1x0,01mm2x0.02mm1x 0.05mm

PLN 1,833.62*

net: PLN 1,490.75

Free shipping

wooden camera e-mount to pl mount adapter

Wooden Camera E-Mount to PL Mount Pro (Sony PXW-FS7)

Wooden Camera E-Mount to PL Mount Pro (FS7) SKU: 194000 E-Mount to PL Adapter Pro (FS7) is a shimmable Sony E-Mount to PL mount adapter that enables mounting of all PL mount lenses onto the Sony PXW-FS7 camera. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity. Mount includes a support ring that integrates with the Top Plate (FS7), a highly recommended addition to this system. Loosen the support ring thumbscrew to quickly remove the mount and install another adapter. This adapter will also work with any E-Mount camera like the A7, A7r, A7s, A7 II, FS100, FS700, NEX-5, NEX-6, NEX-7, etc, however, the support ring would not be utilized. Features Support ring capable of integrating with Top Plate (FS7) Includes 2 x 1/4-20x1/2" socket cap screws Shim set (stackable to achieve necessary thickness) Silver.0127mm (0.0005")Amber.0254mm (0.001")Purple.0381mm (0.0015")Red.0508mm (0.002")Green.0762mm (0.003")Tan.1016mm (0.004")Blue.127mm (0.005") Specifications Weight 408 gDimensions 101.60 mm x 101.60 mm x 76.20 mm

PLN 2,572.55*

net: PLN 2,091.50

Free shipping

Vocas Sony E-mount to PL adapter MK II (15 mm support)

Vocas Sony E-mount to PL adapter including 15mm support SKU: 0900-0023 Sony E-mount adapter including 15mm support. This adapter allows the use of PL type lenses on cameras that use a Sony E-mount lens mount, such as the Sony NEX-FS100. Includes 1 x Vocas Sony E-Mount to PL Lens Mount Adapter 1 x Vocas Separate 15mm support for PL adapter

PLN 3,010.43*

net: PLN 2,447.50

Free shipping

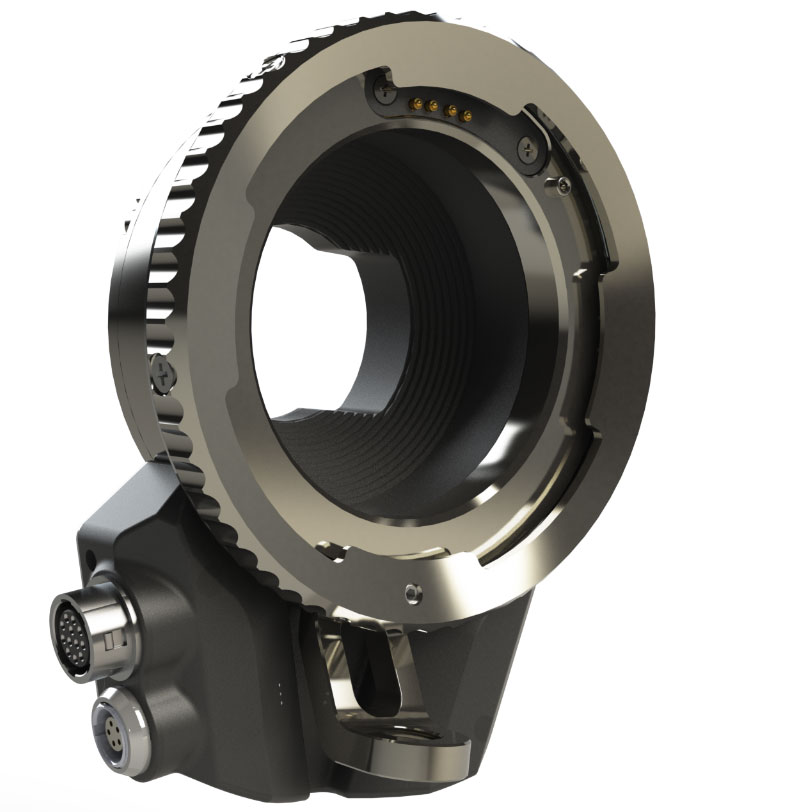

Chrosziel MA-EPL-HR12 Mount Adapter E-to-PL with Metadata Communication

Chrosziel MA-EPL-HR12 The Chrosziel Meta Mount is a Sony E camera to PL lens “hot mount” adapter with metadata communication. Each mount has the required pin contacts necessary to transmit lens metadata through to the camera and conversely the contacts provide lens control through a 12-pin Hirose out connection to an ENG lens. When the Meta Mount is used with cine lenses with LDS or Cooke/i Data the metadata such as iris setting, focus distance and zoom focal length are transmitted through the adapter and appear in the viewfinder, on the monitor and are recorded in the video file for use in post processing. When the Meta Mount is used with an ENG servo motor-controlled broadcast lens the Focus/Iris/Zoom servo’s can be controlled through the camera and are compatible with the Sony FX9 / FX6 / FX3 hand grips, RCP or camera’s web GUI. This allows for easy and full control of an ENG broadcast lens through a Sony E mount camera. The Meta Mount is shimmable with the included shim set for the E-mount. Key Features Sony E Mount Camera to PL mount LensElectronic contacts for metadata communication and lens controlLens metadata displayed in camera and recorded to fileShimmable E MountFull focus/Iris/Zoom control on servo motor ENG lenses Technical data E Mount camera to PL mount lensContact and electronics for Metadata communication12-pin Hirose out for ENG lens control3/8th lens support socketUSB Type min A-B (for firmware updates only)Power supply 10-16V (Lemo compatible 0B 5-pin)Power consumption max. ca. 350mAh @ 12V In the box 1x Meta Mount E-to-PL adapter (MA-EPL-HR12)1x MN-AB (power supply cable 12 Volt A/B D-Tap – 0B 5-pin Lemo)1x F55-A2-P-CAM1x Shim Set, E-Mount side1x USB Mini Adapter

PLN 18,965.68*

net: PLN 15,419.25

Free shipping

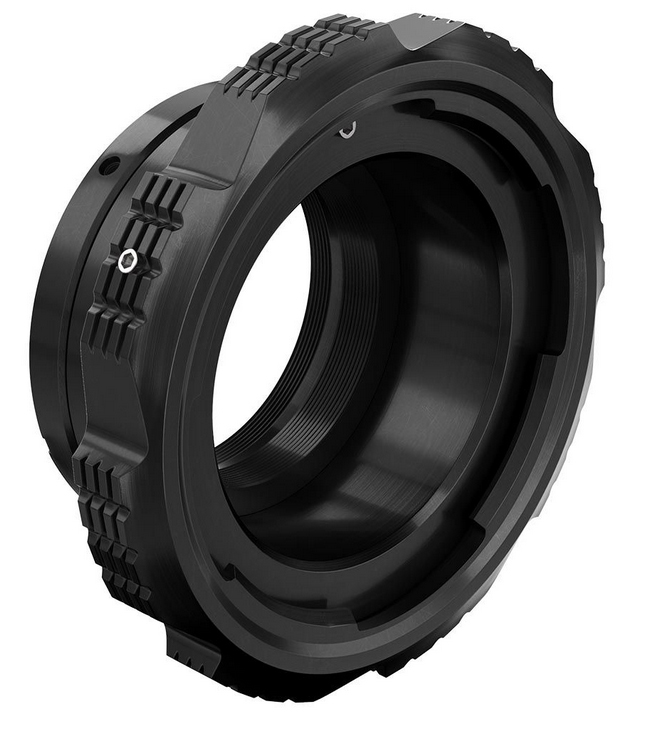

8Sinn E-Mount to PL Lens Mount Adapter

8Sinn E-Mount to PL Lens Mount Adapter SKU: 8-E-PL-ADAPTER 8Sinn E-Mount to PL Lens Mount Adapter mounts PL-Mount lenses on Sony E-Mount Cameras and has following features: 0,005mm accuracy Infinity focusingAluminum alloyBlack anodizedMade in EUWeight ( without PL cap) - only 160g Compatible with FS7, FS7 II FS5, FS5 II FX3, FX6, FX9 FS100, FS700 Venice, Venice 2 EA50E VG900 α7, α7 II, α7 III, α7 IV α7 R, α7 R II, α7 R III, α7 R IV α7 S, α7 S II, α7 S III, α7 S IV α9, α9 II A6300, A5100, A5000, A6000, A3000 NEX-5, NEX-6, NEX-3, NEX-7 Set includes:1 x 8Sinn E-Mount to PL Lens Mount Adapter

PLN 1,335.53*

net: PLN 1,085.80

Free shipping

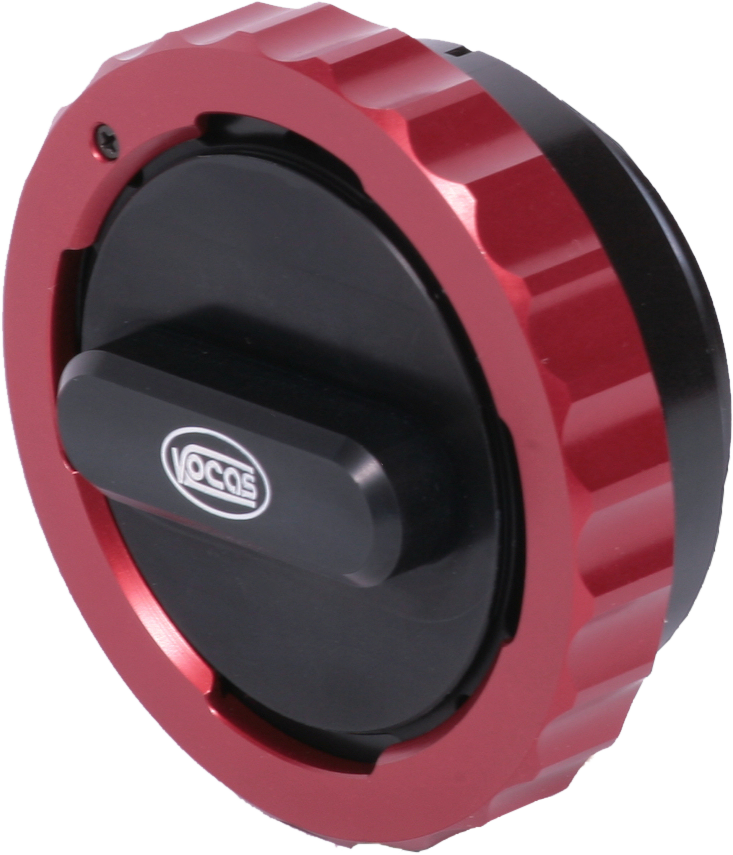

Vocas Sony E-mount to PL adapter MK II
