Wooden Camera Directors Monitor Cage v3

Wooden Camera Directors Monitor Cage v3

SKU: 270000

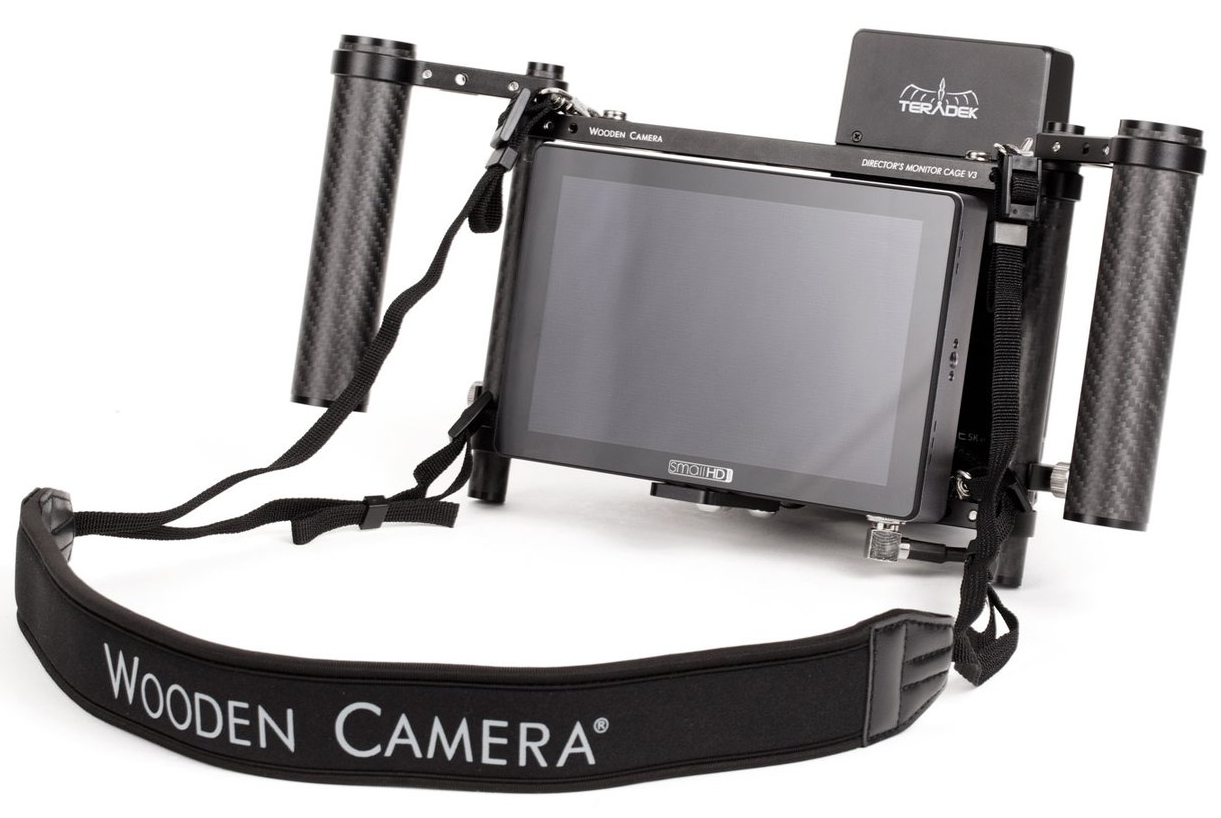

The Director's Monitor Cage v3 is engineered to be universally compatible with any monitor up to 9 inches (measured diagonally) and attaches via top, bottom, or rear 1/4-20 mounting locations. New design provides 33% weight reduction compared to the previous model and adds unique new features like a dual direction swing away bracket, quick release neck strap, dual Teradek mounting areas, and carbon fiber rods and handles.

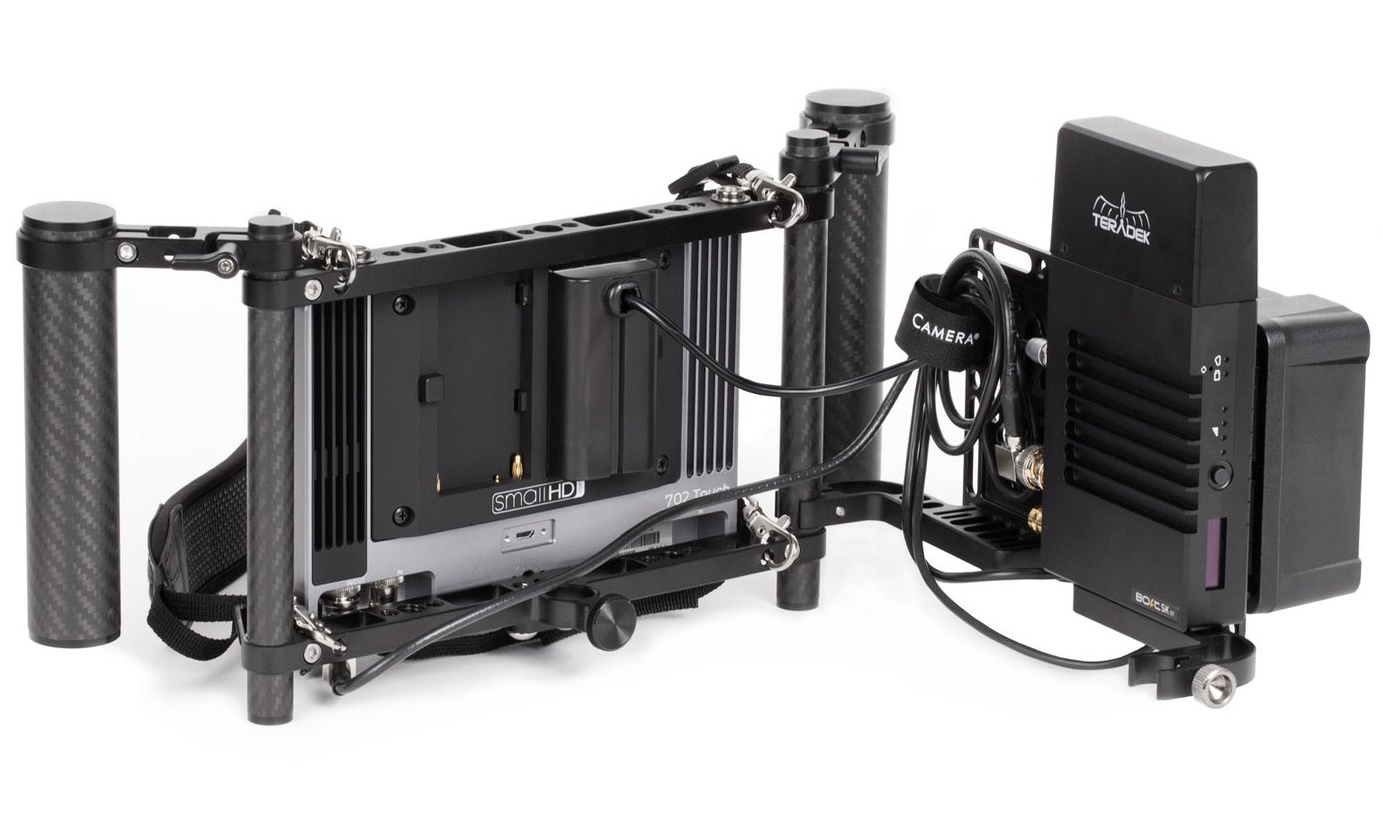

The DMCv3 arrives mostly pre-assembled, with simple, rod-based height adjustment. Carbon fiber hand grips can be quickly positioned via the built-in 15mm clamps. The battery mounting plate features V-Mount and Gold Mount attachment points as well as dual direction swing away functionality for easy access to the rear of the monitor and installed wireless devices. The battery bracket can also be quickly removed when both swing clamps are loosened. The cage includes a built in baby pin clamp with locking thumbwheel for stand mounting and holes on the main brackets for attaching directly to the back of Convergent Design Odyssey and Apollo.

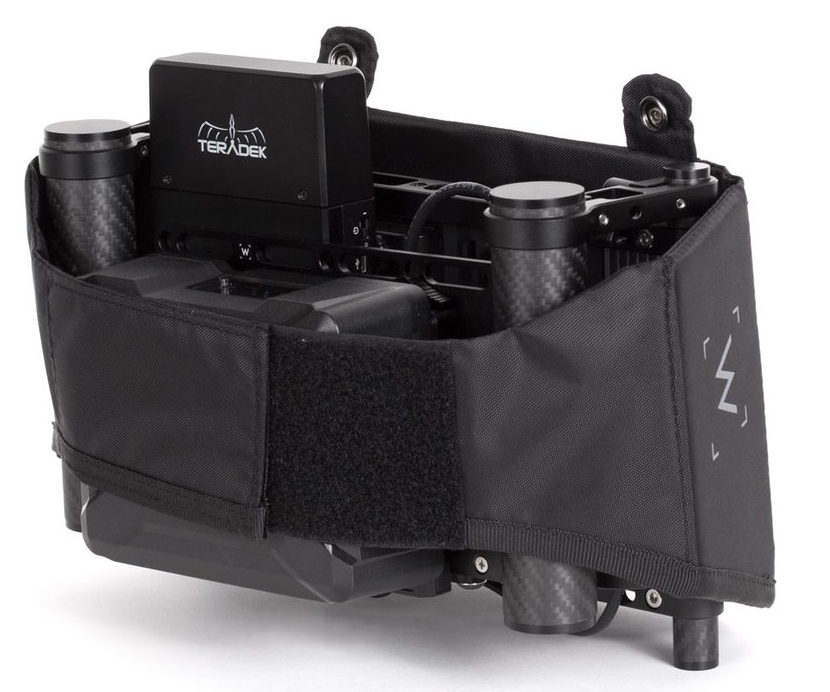

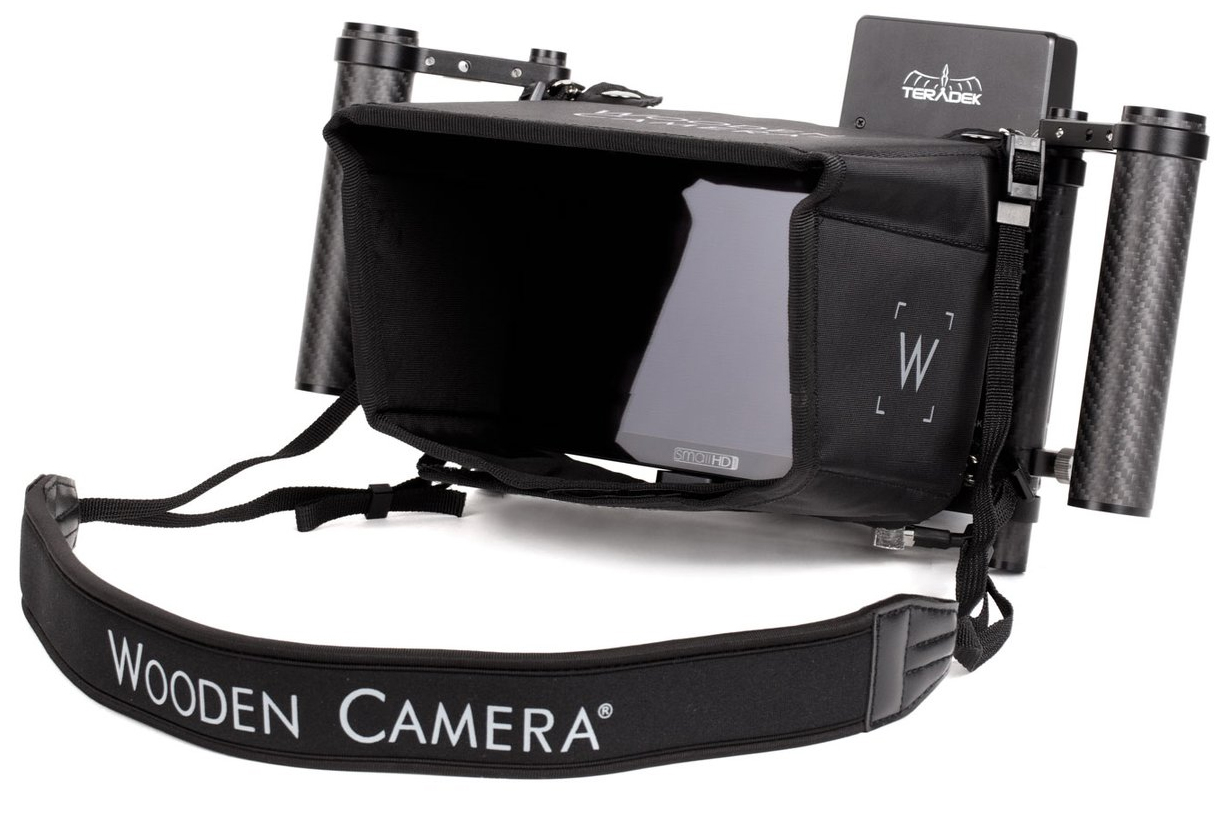

The included sun shade is adaptable to most monitors and snaps directly to the cage frame. The bottom of the shade is made of velcro, which can be adjusted to the proper width of the monitor and an included loop piece can be used to hook onto the bottom of the cage for a more permanent mounting of the shade.

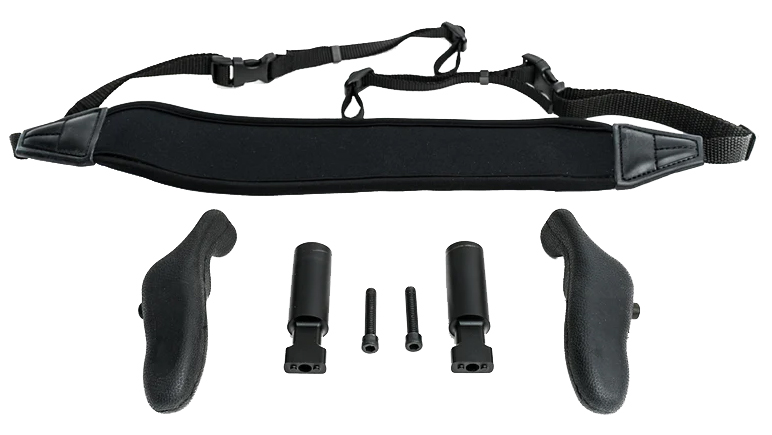

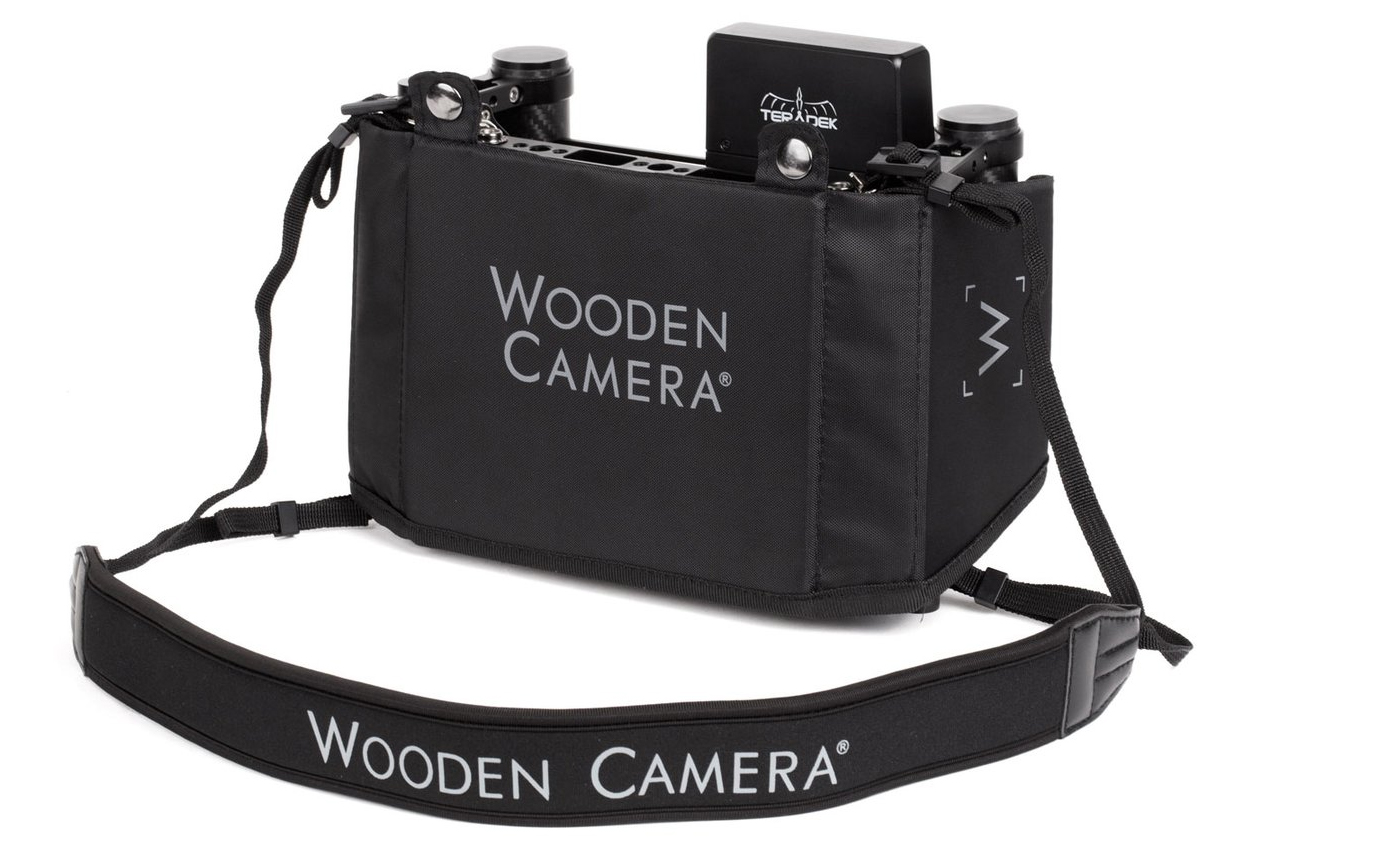

The tool-less design of the handles allow them to be folded in for easy packing and the sun shade can be repurposed to act as a protective cover. Also included is a padded neck strap with 4 mounting points and quick release clips, Teradek mounting areas that allow up to two wireless receivers to be mounted side by side, and a cable tie for cable management.

Side-by-side mounting of two monitors is also possible with the Dual Director's Monitor Cage v3!

WORKS WITH

• SmallHD DP4, DP6, AC7, DP7, 500 Series, 700 Series, Cine 7, 702 Touch, FOCUS 5/ FOCUS 7, and UltraBright
• TVLogic VFM-056W/WP, VFM-058W, VFM-055A, F-7H, F-5A
• Ikan D5, VK7i, VH8, VL5, VX9e, DH5e, DH7, D7C, S7H, S7C, S7P
• Odyssey 7, 7Q, 7Q+
• Blackmagic Video Assist
• Atomos Samurai, Ninja, Shogun, Shinobi
• And many more

INCLUDES

• 6 x 1/4-20 x 1/2" button head screws
• 6 x 1/4-20 x 3/8" button head screws
• 2 x Offset adapters
• 4 x M3 x 8mm phillips screws (for V-Mount plate)
• 4 x M3 x 12mm phillips screws (for Gold Mount plate)
• 4 x #4-40 x 1/2" socket cap screws (for Teradek receiver)
• 4 x M3 x 12mm pan head phillips screws (for Teradek XT/LT)
• 4 x M3 x 6mm socket cap screws (for Odyssey 7Q)
• 1 x WC Cable Tie
• 1 x Sun Shade
• 1 x Neck Strap

Specifications

• Weight: 476 g
• Dimensions: 279.4 mm x 177.8 mm x 101.6 mm

For powering LCD and wireless receiver, consider the WC V-Mount (Dual D-Tap) or WC Gold Mount (Dual D-Tap).
