TVLogic SVM-243S 24” 12G-SDI Full HD LCD Monitor
PLN 24,083.40
TVLogic SVM-243S
24" 12G-SDI with Full HD LCD Monitor, Display Resolution 1920 x 1200, Obit {l.073 Billion) Colors*, 2 x 12G-SDI Input and Loopout, Dual SFP Input, HDMI 1.4 Input
The SVM-243S is an 24” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.
Highlights
- Display Resolution 1920 x 1080 or 1920 x 1200
- Wide Color Gamut (DCI-P3 Coverage 98%)
- lObit {l.073 Billion) Colors
- 2 x 12G-SDI Input and Loopout
- Dual SFP Input
- HDMI 1.4 Input
- Processed Monitor Output
- 12G-SDI Input to 3G-SDI Processed Output
- HDR (PQ, HLG, S-LOG3)
- Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
- Custom 3D LUT Import by USB Flash Drive
- Built-in Camera LUTs
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB)
- Vector Scope
- Histogram
- Audio Level Meter
- Audio Phase Meter
- Color Settings Save & Apply
Technical data
LCD Panel
- Size: 24”
- Resolution: 1920 X 1200 (16: 10)
- Pixel Pitch: 0.270(H) x 0.270(V) mm
- Color Depth: 1.07B Colors
- Viewing Angle: 178°(H) / 178°(V)
- Brightness: 400cd/m2
- Contrast Ratio: 1800 : 1
- Display Area: 518(H) x 324(V) mm

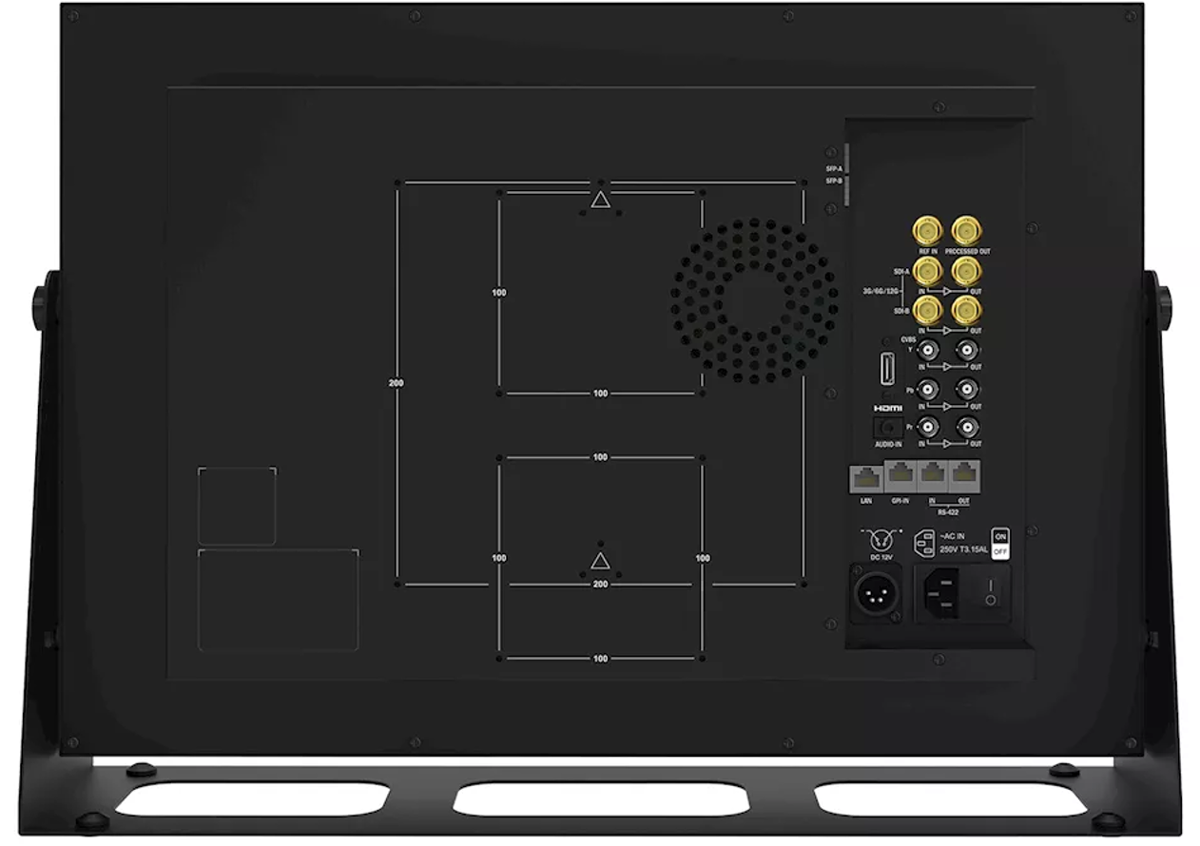

Input
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
- 3 x BNC: YPbPr, CVBS Input
- 1 x HDMI: HDMI Input
- 2 x SFP: SFP A/B Channel Input
- 1 x BNC: Reference Input
Output
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
- 3 x BNC: YPbPr, CVBS Output
- 1 x BNC: Processed Output
Details of the manufacturer
- TVlogic
- 12F, ACE HIGH-END TOWER 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul 08590, Korea
+82-70-8668-6611
Details of the person responsible for putting the product on the European market
- Aspectra B.V.
- Marc Derks
- Spoorhaven 78
- 2651 AV Berkel en Rodenrijs, The Netherlands
