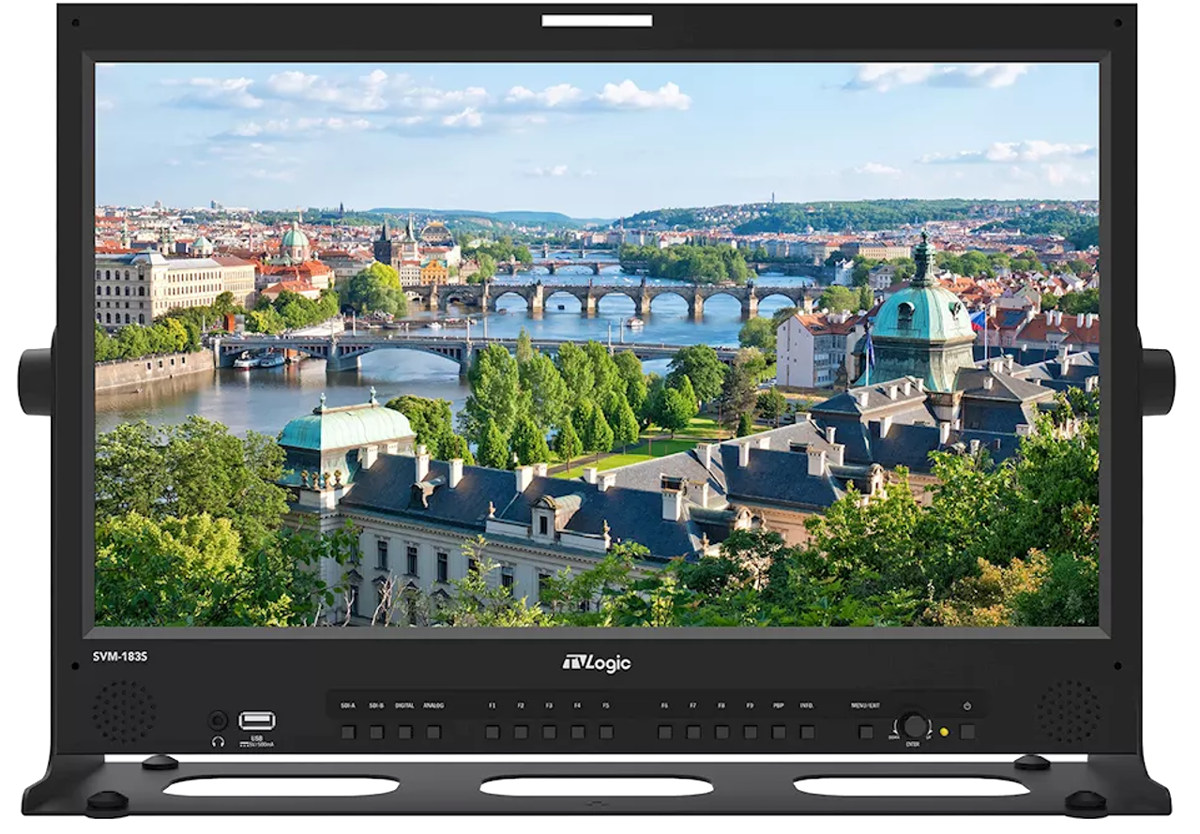

TVLogic SVM-183S 18.5” 12G-SDI Full HD LCD Monitor
PLN 19,157.25*
Available, delivery time: 1-3 days
TVLogic SVM-183S
18.5" 12G-SDI with Full HD LCD Monitor, Display Resolution 1920 x 1080, Obit {l6.7M) Colors*, 2 x 12G-SDI Input and Loopout, Dual SFP Input, HDMI 1.4 Input
The SVM-183S is an 18.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.
Highlights
- Display Resolution 1920 x 1080
- 2 x 12G-SDI Input and Loopout
- Dual SFP Input • HDMI 1.4 Input
- Processed Monitor Output
- 12G-SDI Input to 3G-SDI Processed Output
- HDR (PQ, HLG, S-LOG3)
- Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
- Custom 3D LUT Import by USB Flash Drive
- Built-in Camera LUTs
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB)
- Vector Scope
- Histogram
- Audio Level Meter
- Audio Phase Meter
- Color Settings Save & Apply
Technical data
LCD Panel
- Size: 18.5”
- Resolution: 1920 x 1080 (16:9)
- Pixel Pitch: 0.213(H) x 0.213(V) mm
- Color Depth: 16.7M Colors
- Viewing Angle: 178°(H) / 178°(V)
- Brightness: 500cd/m2
- Contrast Ratio: 1000 : 1
- Display Area: 408.96(H) x 230.04(V) mm

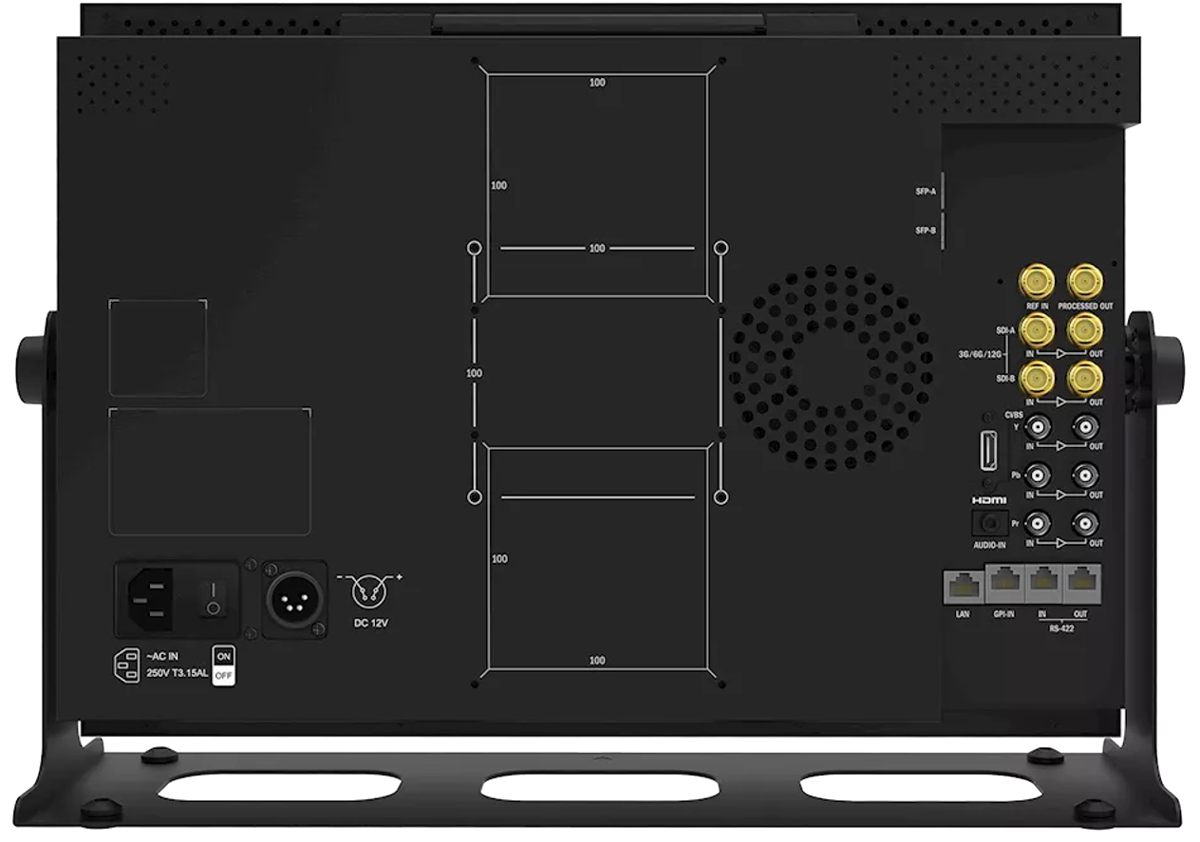

Input
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
- 3 x BNC: YPbPr, CVBS Input
- 1 x HDMI: HDMI Input
- 2 x SFP: SFP A/B Channel Input
- 1 x BNC: Reference Input
Output
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
- 3 x BNC: YPbPr, CVBS Output
- 1 x BNC: Processed Output
Details of the manufacturer
- TVlogic
- 12F, ACE HIGH-END TOWER 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul 08590, Korea
+82-70-8668-6611
Details of the person responsible for putting the product on the European market
- Aspectra B.V.
- Marc Derks
- Spoorhaven 78
- 2651 AV Berkel en Rodenrijs, The Netherlands
