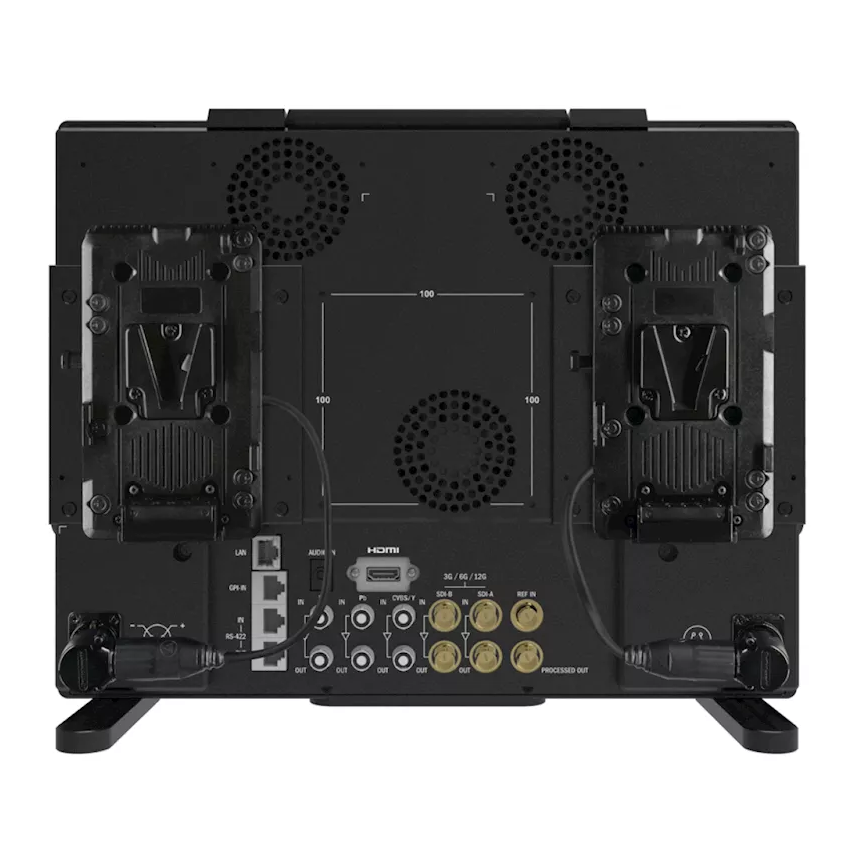

TVLogic SVM-130P 13.9" 12G-SDI High Brightness Field Monitor

smallHD Cine 13 13" 4K High-Bright Production Monitor Cine 13 is SmallHD’s most agile, bright, and pixel-dense 4K production monitor yet. Low-profile in design, this portable field companion can be rigged in almost any situation. With brilliant daylight visibility and full 4K clarity, smallHD Cine 13 is built for those on-set creatives who require critical focusing capability for non-stop monitoring. A stunning 338 PPI display weighing in at only 3.09kg Display: 13"3840 x 2160Backlight Type: LCDDisplay: 13-inch, 3840x2160, 1500nits SDI: 4x 12G-SDI in, 4x 12G-SDI outHDMI: 1x HDMI 2.0 in, 1x HDMI 2.0 outPower Input: 1x 4-pin XLR Small4K™ Video Processing Architecture Inputs: 4x 12G-SDI , 1x HDMI 2.0Outputs: 4x 12G-SDI, 1x HDMI 2.0 Unibody Smart Chassis Smartrail for battery and accessory mounting2x 2-pin accessory power outputsLower mounting rail included for ultimate flexibility PageOS 4 Software Platform 4K HDR waveform and scopesDual & Quad-View*Colour Pipe HDR color renderingMonitor Calibration Wizard Power Hot-swappable dual inputs1x 4-pin XLR input1x Dual-GM/VM Battery Plate (sold separately) Technical dataEnvironmentalItem Weight:3.09kgHeight: 25,65 cm (w/out feet and handle) 31,50 cm (w/ feet and handle)Width: 33,53 cm (w/out feet and handle) 33,53 cm (w/ feet and handle)Length/Depth: 5,84 cm (w/out feet and handle) 11,94 (w/ feet and handle)Compliance: FCC, IC, CE, RoHS, SRRC, MICOperating Temperature: +0 C - +34 CStorage Temperature: -16 C - +36,5 CScreen Protection: Basic and HardenedMount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 optionsConstruction: Anodized aluminum chassis with plastic accents DisplayDiagonal Size: 13.3Resolution: 3840x2160Max Brightness: 1500nitsContrast: 1300:1Color Depth: 10-bit (8+2)Backlight Type: EdgelitRefresh Rate: Synchronizes with input from 48Hz to 60Hz Input Signal3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.986G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.9512G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50HDMI Input Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25 Output Signal3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.986G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.9512G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50HDMI Output Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack Connector TypeComponent: Not SupportedComposite: Not SupportedAudio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channelsData I/OConnector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPIPowerInput: 1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)Consumption: 36.7w (monitor only) 117.9w (w/max access. power draw)Battery Plate Included: NoBattery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

smallHD Cine 18 The smallHD Cine 18 offers a perfect blend of screen size, brightness, color-accuracy, and portability, making it the most flexible High-Bright 4K Monitor for any production scenario. It’s big enough for Video Village, bright enough for daylight viewing, and its ultra-lightweight aluminum unibody construction is the result of years of real-world, on-set testing. Features include 1100nits brightness, exceptional image quality, 1000:1 contrast ratio, and 4x 12G-SDI Inputs/Outputs for workflows up to 4K resolution. Ideal for Video Village, ACs, DPs, DITs, or as a director’s monitor. Display: 18",  3840 x 2160, 1100nitsBacklight Type: Edgelit LCDSDI: 4x 12G-SDI in, 4x 12G-SDI outHDMI: 1x HDMI 2.0 in, 1x HDMI 2.0 outPower Input: 1x 4-pin XLR

smallHD Cine 24 SKU: MON-CINE-24 smallHD Cine 24 brings 4K, daylight-viewable monitoring everywhere. Lightweight for faster setup and teardown, this monitor is the all-around solution as a director’s monitor or for production and broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse. The Cine 24” 4K High-Bright Monitor offers 1350 nits of sustained brightness, enabling clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. The 24-inch screen, the largest in our Cine series, features a 3840x2160 resolution as well as 10-bit color depth and 100% DCI-P3 color gamut for color-accurate images. Cine 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments. Features Display: 24.1" 3840x2160Backlight Type: Edgelit LCDBrightness: 1350nits SDI: 4x 12G-SDI in, 4x 12G-SDI outHDMI: 1x HDMI In, 1x HDMI OutPower Input: 1x 3-pin XLR (12V-34V, 12A)
