TVLogic LXM-240P-FM
Product number:
SW29191
Manufacturer:
TVLogic
Manufacturer product number:
LXM-240P-FM
Delivery time:
7 days

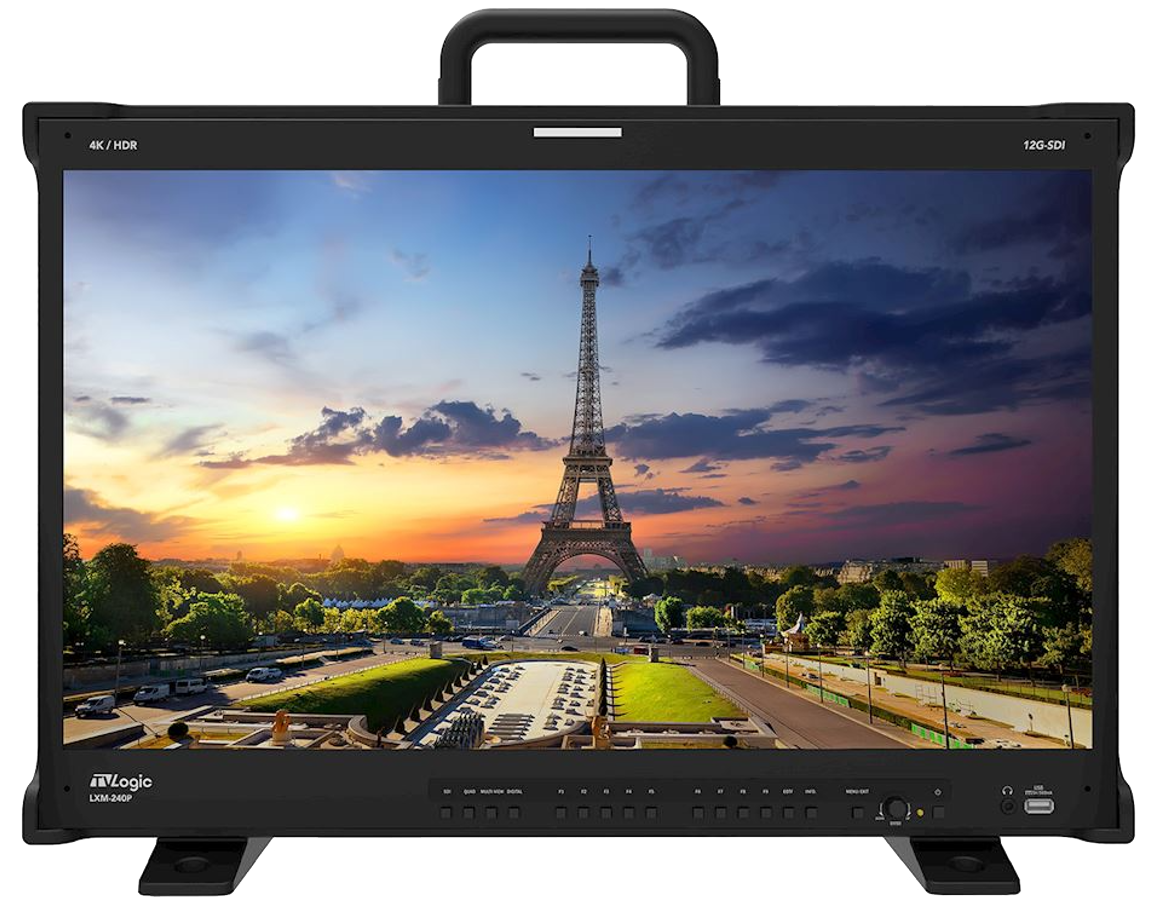

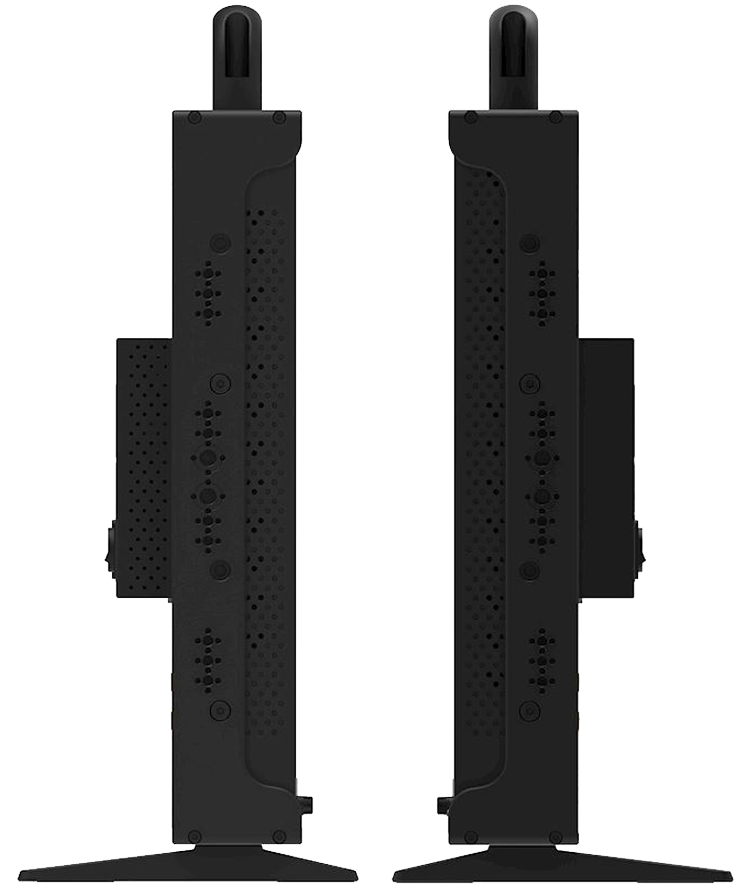

TVLogic LXM-240P-FM 24" 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
TVLogic’s LXM series represents the next evolution in 4K/UHD broadcast monitors, designed with state-of-the-art hardware and software innovations. Leading the lineup, the LXM-240P-FM is a 23.8” 4K/UHD monitor that showcases the pinnacle of modern broadcast monitoring, seamlessly integrating the newest advancements in both hardware and software.
Highlights
- HDR EOTF (PQ, HLG)
- HDR vs SDR Comparison Display
- Custom 3D LUT Import by USB Flash Drive
- Quad-View, Picture-by-Picture Display
- Various Conversion Output
- Quad Link 12G Input to Single Link 12G or 3G Output
- Auto Detection of SDI Payload ID
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
- Image Capture & Overlay
- Closed Caption (CC-608, CC-708, OP47)
- Timecode Display
- Marker
- Focus Assist
- Blue/Mono Only
- H Flip, V Flip
- Scan / User Aspect
- Dynamic UMD / Tally
Technical data
LCD Panel
- Size: 23.8”
- Resolution: 3840 x 2160 (16:9)
- Pixel Pitch: 0.137(H) x 0.137(V) mm
- Color Depth: 1.07B Colors (10 bit)
- Viewing Angle: 178°(H) / 178°(V)
- Brightness: 1000cd/m2 / 1000 nits
- Contrast Ratio: 1000 : 1
- Display Area: 527.0 (H) x 296.5 (V) mm

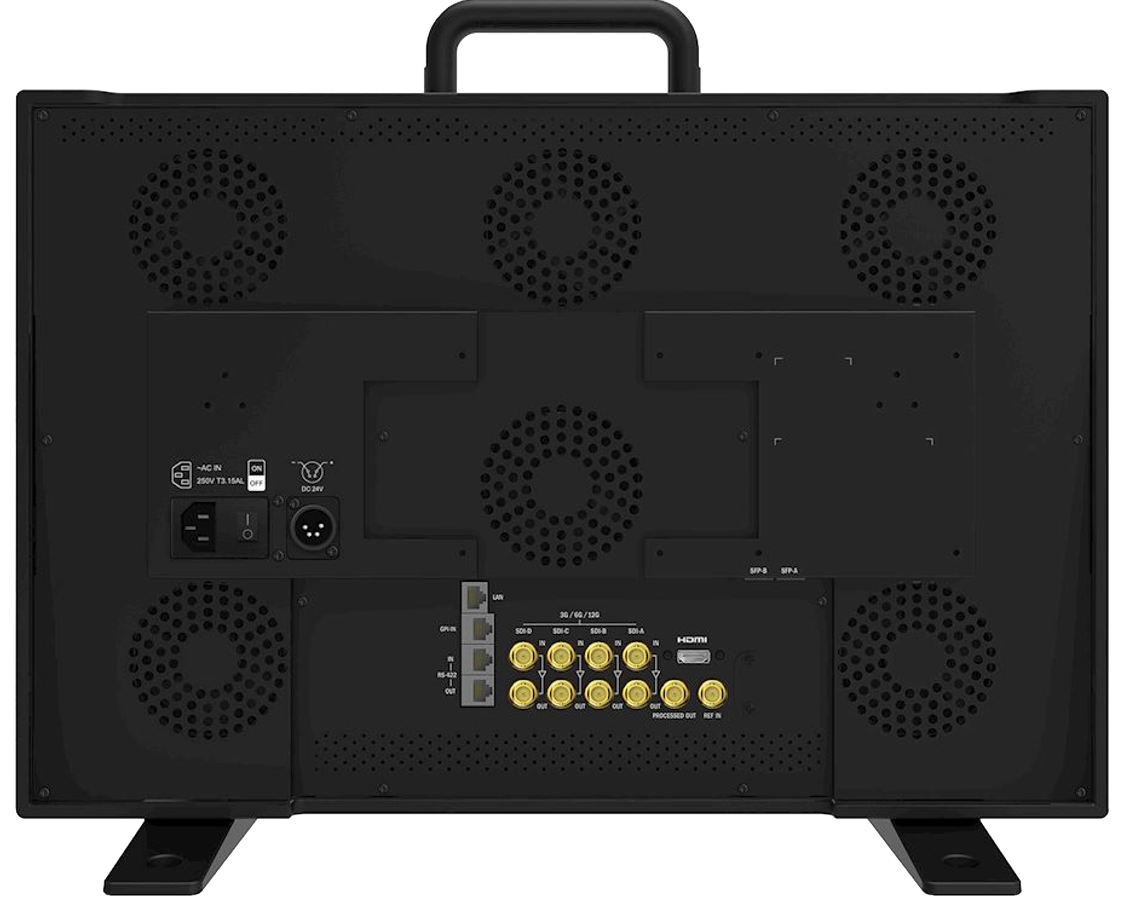

Input
- 4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Input
- 1 x HDMI: HDMI 2.0 Input
- 2 x SFP: SFP A/B Channel Input
- 1 x BNC: Reference Input
Output
- 4 x BNC: 12G/6G/HD/SD-SDI/ A/B/C/D Channel Output
- 1 x BNC: Processed Output
Details of the manufacturer
- TVlogic
- 12F, ACE HIGH-END TOWER 8, 84, Gasan digital 1-ro, Geumcheon-gu, Seoul 08590, Korea
+82-70-8668-6611
Details of the person responsible for putting the product on the European market
- Aspectra B.V.
- Marc Derks
- Spoorhaven 78
- 2651 AV Berkel en Rodenrijs, The Netherlands
