Teradek Bolt 6 XT 1500 12G-SDI/HDMI TX/RX

Teradek Bolt 6 XT 750 TX/RX Deluxe Set Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment. The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models). Teradek Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. Product Highlights Zero Delay 6GHz Wireless Frequency Bolt 4K Cross-Compatibility Lightweight and Quiet Built in 5-pin USB for camera control Inputs: 12G-SDI, HDMI 2.0 Outputs: 12G-SDI, HDMI 2.0 In the box 1 x Bolt 6 XT 750 TX V-Mount / Gold-Mount1 x Bolt 6 XT 750 RX V-Mount / Gold-Mount2 x Bolt 6 XT Battery Cover Plate Front1 x Bolt 4K TX Mounting Bracket1 x Lightstand Adapter 3/8in1 x Hot Shoe Adaptor4 x Screw Flat Head Phillips2 x Screw Socket Cap A S, M3 x 16mm1 x Hex L key 2.5mm size 3-5/8" length2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable2 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable2 x SDI 12G BNC to BNC 18in/46cm Cable1 x Teradek Case Large - Bolt XT TX/2RX1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5")1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable2 x Bolt 6 XT Battery Cover Plate Rear

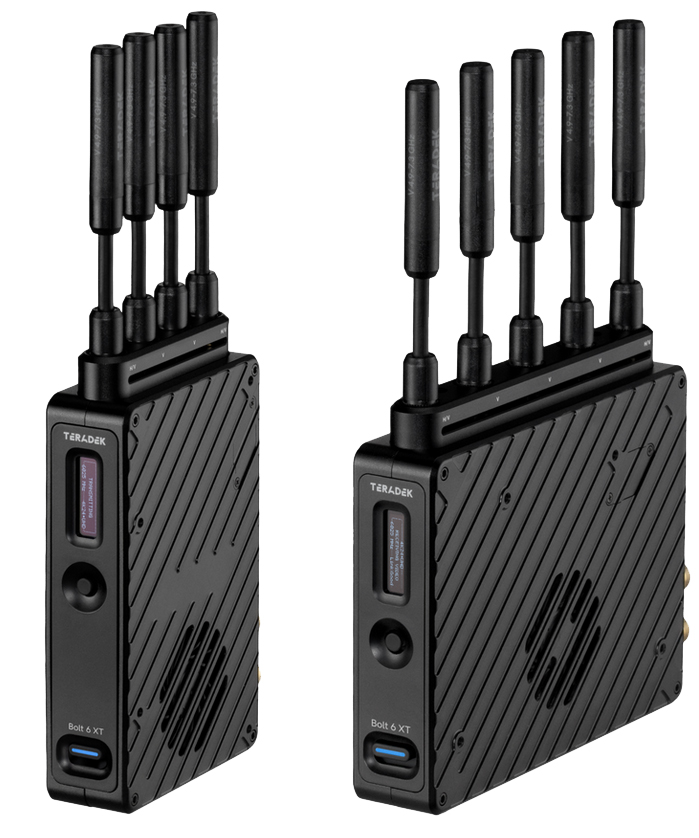

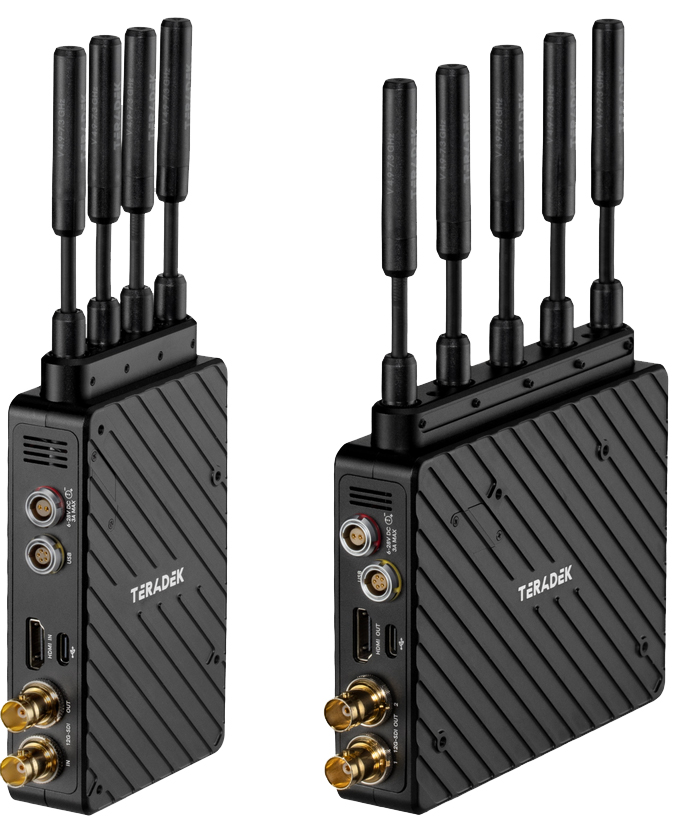

Teradek Bolt 6 XT 750 TX/RX SKU: 10-2300 The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 XT video Transmitter and Receiver. Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Teradek Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers. Features Zero Delay6GHz Wireless FrequencyBolt 4K Cross-CompatibilityLightweight and QuietBuilt in 5-pin USB for camera controlInputs: 12G-SDI, HDMI 2.0Outputs: 12G-SDI, HDMI 2.0 In the box 1 x Bolt 6 XT 750 TX1 x Bolt 6 XT 750 RX1 x Lightstand Adapter 3/8in1 x Hot Shoe Adaptor2 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable2 x SDI 12G BNC to BNC 18in/46cm Cable1 x Teradek Case Large - Bolt XT TX/2RX1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable

Teradek Bolt 6 XT 1500 TX/RX Deluxe Set Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment. The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models). Teradek Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. About 6GHz Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023. In the box 1 x Bolt 6 XT 1500 TX V-Mount / Gold-Mount1 x Bolt 6 XT 1500 RX V-Mount / Gold-Mount1 x Antenna Array 2 x Bolt 6 XT Battery Cover Plate Front 1 x Bolt 4K TX Mounting Bracket 1 x Lightstand Adapter 3/8in 1 x Hot Shoe Adaptor 4 x Screw Flat Head Phillips 2 x Screw Socket Cap A S, M3 x 16mm 1 x Hex L key 2.5mm size 3-5/8" length 2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable 2 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable 5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable 2 x SDI 12G BNC to BNC 18in/46cm Cable 1 x Teradek Case XL - Bolt XT/4RX and Array Antenna 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA 1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5") 1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable 2 x Bolt 6 XT Battery Cover Plate Rear
