RGBlink VUE NDI PTZ Camera 30x Optical Zoom

RGBlink VUE NDI PTZ Camera 20x Optical ZoomSKU: RGB20X-PNDI-TLYThe RGBlink VUE NDI PTZ Camera 20x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots. FeaturesHigh image quality with dynamic noise reduction in low light conditionsHigh-speed optical zoomNDI|HX2 license: control, video over IP and embedded audio signalFull HD resolution with up to 60 frames/sec simultaneously on all video outputsEmbedded audio in HDMI, SDI and network stream =H.264/H.265 dual streaming with all relevant network protocolsTally LED light on topOSD menu with manual IP entry/DHCP activation via remote controlAdministration via web browserPTZ camera control via VISCA or Pelco protocolsPower supply via PoEPower saving sleep function with parking position of lens vertically downwards1/4" tripod thread on the bottom sideSuitable for wall or ceiling mounting (accessories not included) Technical dataInterfaceOutput 3G SDI 1xBNCHDMI 1xHDMI-AUSB 1xUSB-ALAN 1xRJ45Audio IN 1x3.5mm Stereo JackControl RS232 IN/OUT 2xDIN8RS485 1x4pin TerminalPower 1xDC12V JackPerformanceVideo format: 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94 Camera: 20XOptical Zoom: f5.05～91.50mmView Angle: 3.45°～ 60.04°AV: F1.8 ～ F2.9Digital Zoom: 10XMinimum Illumination: 0.5Lux (F1.8, AGC ON)DNR: 2D & 3D DNRWhite Balance: Auto/Manual/One Push/3000K to 7000K(selectable)Focus: Auto/ManualAperture/Electronic Shutter: Auto/ManualBLC: ON/OFFWDR OFF/Dynamic Level AdjustmentVideo Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curveSNR >55dBEffective Pixels 2.07m,16:9Pan-and-Tilt ParameterPan/Tilt Movement: -170°～+170°/'-30°～+90°Pan/Tilt Control Speed: 0.1～60°/S；0.1～30°/SPreset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)360° TALLY: full 360° view of TALLYAudio Compression Format: AAC | MP3 | G.711AVideo Compression Format: H.264 | H.265 | Dual Streaming OutputOutput Resolutions: 1080p60/59.94/50/30/29.97/25 | 1080i60/59.94/50 | 720p60/59.94/50Control Protocol: VISCA | Pelco-D | Pelco-PBaud Rate(bps): 115200 | 9600 | 4800 | 2400bpsNetwork Protocol: RTSP | RTMP | ONVIF | GB/T28181 | VISCASupported Standards: SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASIPowerInput Voltage: DC12V/1.5AMax Power: 12WEnvironmentTemperature: -10℃～50℃Humidity: 20%～80%PhysicalWeight: Net 1.7kgDimension Net: 180mm(front)×188mm(side)×198mm(height)

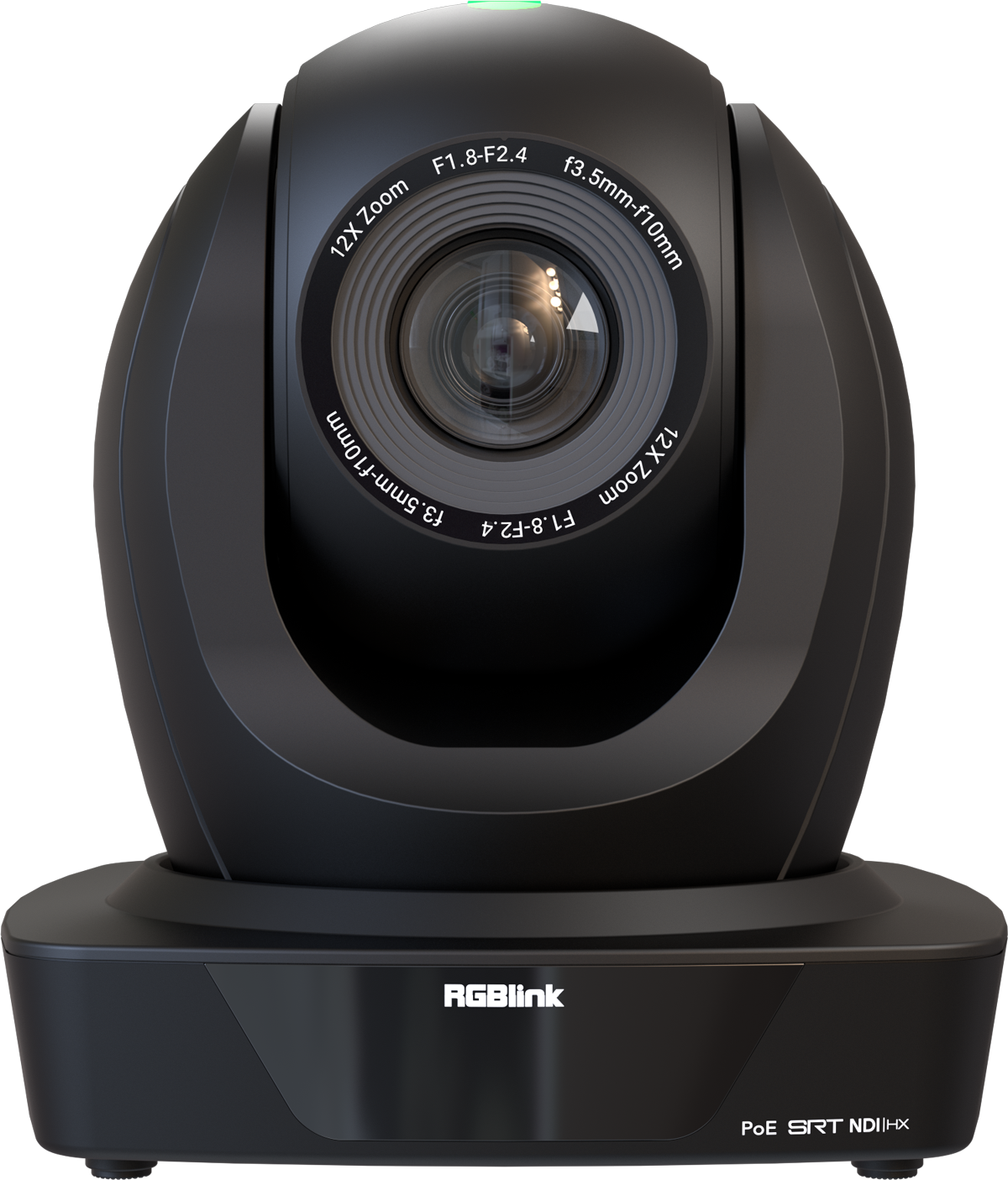

RGBlink VUE NDI PTZ Camera 12x Optical ZoomSKU: RGB12X-PNDI-TLYThe RGBlink VUE NDI PTZ Camera 12x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60. Even in low-light conditions, it delivers top-notch image quality with rich colors thanks to dynamic noise reduction. The lens' high zoom factor and intelligent, fast autofocus allow for sharp distance shots.Technical dataInterfaceOutput 3G SDI 1xBNCHDMI 1xHDMI-AUSB 1xUSB-ALAN 1xRJ45Audio IN 1x3.5mm Stereo JackControl RS232 IN/OUT 2xDIN8RS485 1x4pin TerminalPower 1xDC12V JackPerformanceVideo format 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94Camera 12XOptical Zoom f4.1～49.2mmView Angle 6.57°～ 70.28°AV F1.8 ～ F2.68Digital Zoom 10XMinimum Illumination 0.5Lux (F1.8, AGC ON)DNR 2D & 3D DNRWhite Balance Auto/Manual/One Push/3000K to 7000K(selectable)Focus Auto/ManualAperture/Electronic Shutter Auto/ManualBLC ON/OFFWDR OFF/Dynamic Level AdjustmentVideo Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curveSNR >55dBEffective Pixels 2.07m,16:9Pan-and-Tilt ParameterPan/Tilt Movement -170°～+170°/'-30°～+90°Pan/Tilt Control Speed 0.1～60°/S；0.1～30°/SPreset Speed/Quantity Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control) 360° TALLY full 360° view of TALLYAudio Compression Format AAC | MP3 | G.711AVideo Compression Format H.264 | H.265 | Dual Streaming OutputOutput Resolutions 1080p60/59.94/50/30/29.97/25 | 1080i60/59.94/50 | 720p60/59.94/50Control Protocol VISCA | Pelco-D | Pelco-PBaud Rate(bps) 115200 | 9600 | 4800 | 2400bpsNetwork Protocol RTSP | RTMP | ONVIF | GB/T28181 | VISCASupported Standards SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASIPowerInput Voltage DC12V/1.5AMax Power 12WEnvironmentTemperature -10℃～50℃Humidity 20%～80% PhysicalWeight Net 1.7kgDimension Net 180mm(front)×188mm(side)×198mm(height)

Marshall CV730-NDI / CV730-NDIW Marshall CV730-NDI features a 30x optical zoom block and flexible simultaneous 12GSDI and HDMI outputs with NDI®|HX and crystal clear UHD images up to 3840x2160p at 60fps. NDI®|HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens the ability to integrate more video devices and applications into your production workflow. CV730-NDI is the first UHD60 PTZ camera with NDI®|HX. Best of Class Featuring 12GSDI, HDMI2.0, and NDI®|HX from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDI is the first to deliver UHD60 performance with NDI®|HX ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control. Flexible Zoom Range Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances. Ease of Use Install one-cable to camera with NDI®|HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE+/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving. Professional Broadcast Performance Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDI constitutes the World's first NDI®|HX PTZ camera with Ultra-HD video quality at 60fps. In the box 8.5 Megapixel UHD Sensor (1/1.8")30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV340° panning and 120°tilt range opens range of motion12G/6G/3G-SDI, HDMI2.0 and NDI®|HX simultaneous3840 x 2160p (UHD) up to 60fps, 1080/720p (HD) up to 60fps59.94, 50, 29.97, 25 frames per second options3.5mm TRS Stereo Audio over I/O cable (Mic/Line)12V Power cable included (30W max)
