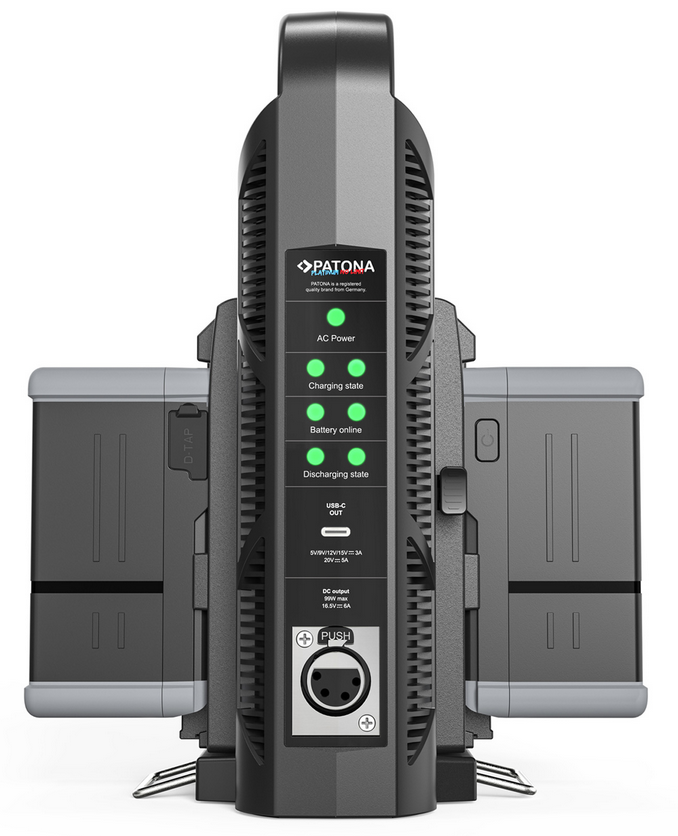

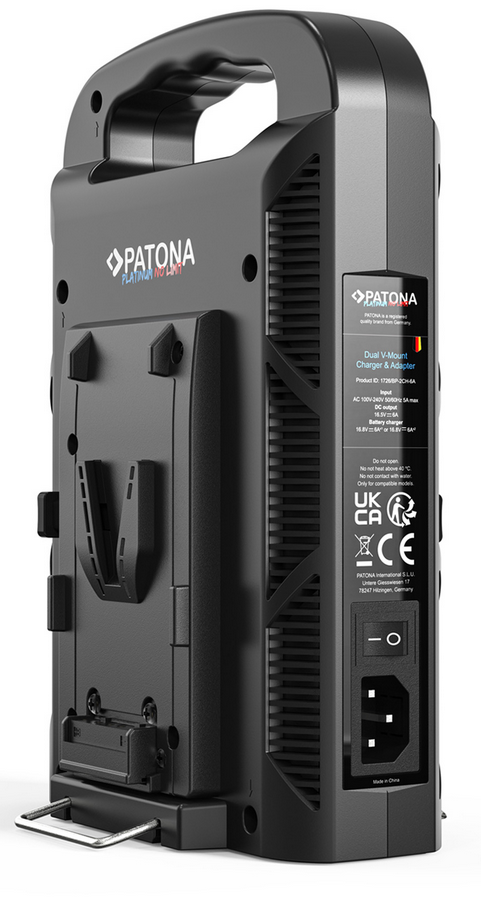

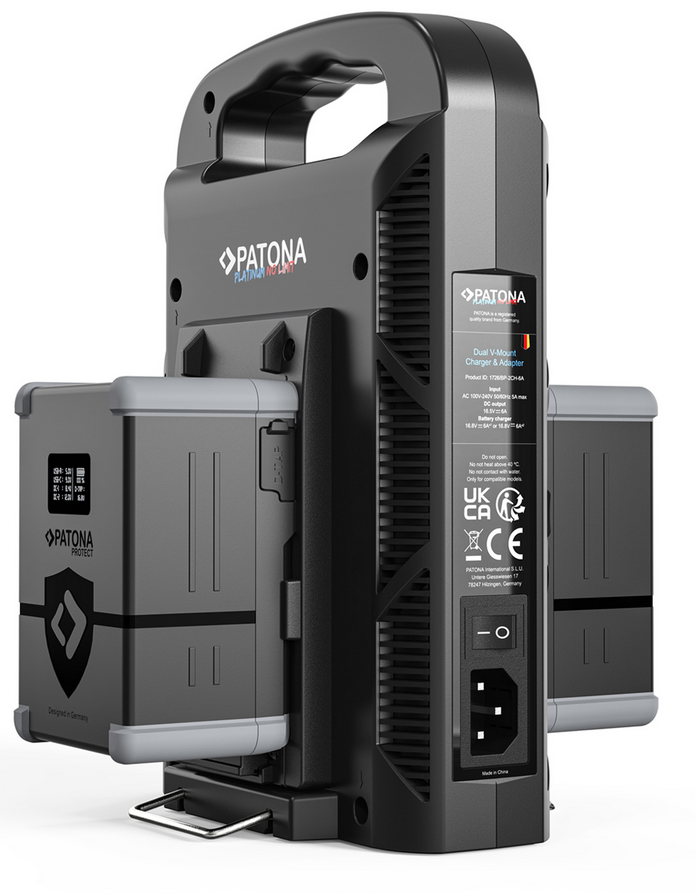

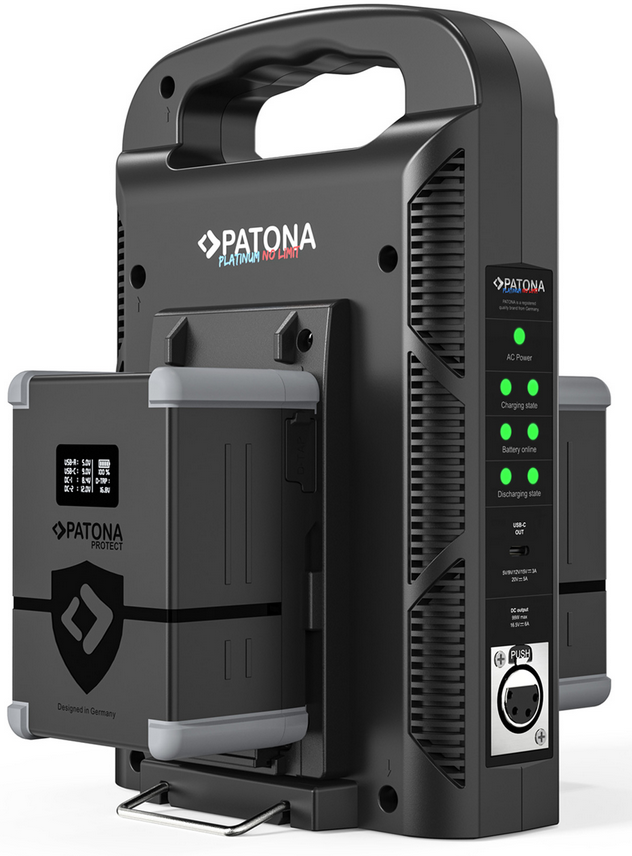

PATONA Platinum 2-channel V-mount charger
PATONA Platinum 2-channel charger for V-mount batteries
With the PATONA Dual V-Mount charger two batteries can be charged quickly, simultaneously and independently of each other. It does not matter whether the two batteries have the same capacity.
The charger has an integrated USB-C PD98W output. This offers the option of charging USB-C capable devices. The charger also has a DC XLR output with which compatible third-party devices devices (camcorders, cameras) can be charged and operated.
Please note: If the XLR output is used, no batteries can be charged at the same time as the V-mount connections. The PATONA Platinum Dual V-Mount charger can also be used as a backup power supply without an AC mains connection.
Features
- Integrated USB-C output PD100W
- Voltage switching 110-240V
- Innovative microcontroller
- Charge 2 V-Mount batteries simultaneously
- Use as DC supply with 4-PIN XLR
Technical data
- Input: AC 100V-240V 50/60Hz 5A (max)
- Output: DC 16,5V / 6A (4 Pin XLR-Anschluss)
- Output USB-C: 5V/9V/12V/15V/3A, 20V/4,9A
- Output: V-mount connection 16,8V / 6A x1 | 16,8V /6A x2
In the box
- 1x PATONA Platinum Dual V-Mount charger
- 1x Power cable
- 1x 3m 4 pin XLR cable
- 1x QR code for instructions
Details of the manufacturer
- PATONA International S.L.U.
- Patric Schwärmer
- Untere Giesswiesen 17
- 78247 Hilzingen, Germany, EU
Warnings and safety information
