OSPREY RM3G-4K 15.6" 4K Monitor 3G SDI, HDMI 2.0, DVI, VGA 19"

OSPREY RM3G-4K

15,6“ 4K Field Monitor that supports 3G SDI, HDMI 2.0, DVI and VGA

The RM3G-4K is a 4K monitor with a native resolution of 3840 x 2160. It serves as a field monitor, which is either fixed in a sturdy portable housing. It can also be used as a 19” rackmount monitor without the cage. The monitor supports 3G SDI, HDMI2.0, DVI and VGA video inputs. The four HDMI inputs consist of one HDMI2.0 input with 4K60 and three HDMI1.4 with 4K30. In addition, it supports unbalanced audio input and offers a headphone connection and an integrated loudspeaker.

Features

• 15.6 "IPS panel
• 4K monitor with native resolution of 3840 x 2160
• Stable transport case or without case as 19 "rackmount
• Supports 3G SDI, HDMI2.0, DVI and VGA input
• Four HDMI inputs - 1x HDMI2.0 4K60, 3x HDMI1.4 4K30
• 3.5mm headphone jack and integrated loudspeaker
• RCA connector for unbalanced stereo audio input
• 16: 9 aspect ratio
• Including housing, glare protection, power supply unit, battery plate, V-mount, base bracket and TALLY connection
• Supports dual / quad view and PIP

Technical data

Display

• 15.6” IPS
• 4K 3840x2160
• Aspect Ratio :16:9
• Contrast: 1000:1
• Viewing Angle: 176°

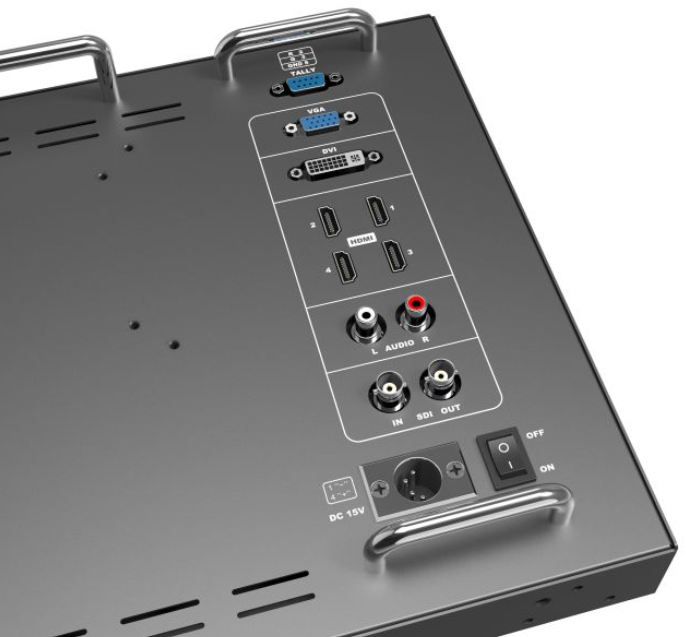

Video Inputs

• 1x 3GA-SDI
• 1x HDMI2.0 (4k60)
• 3x HDMI1.4 (4k30)
• 1x DVI1x VGA
• 1x Tally

Video Outputs

• 1x 3GA-SDI

Power

• Input Voltage 12 -24VDC (XLR), 15W max

Front Panel Control

• Video Input Selection, Display Adjustments, Tally indicator lights, Center and Safety Markers, Aspect Ratio, System Settings, H/V Delay, Check Field, Underscan, Signal Loss Color Bars, Zoom, Image Flip, PIP

Included

• Monitor mounted inside 19” Carrying Case Power Adapter
• Tally Connector Folding Sun Shade
• V-Mount Battery Plate Anton Bauer Optional

Quad View/PIP

• All inputs can be used in any combination

Enviroment

• Operating Temperature: 0C to 40C
• Non-OperatingTemperature: -20C to 60C

Warranty

• 2 years
