Metabones Canon EF to MFT T Speed Booster XL 0.64x

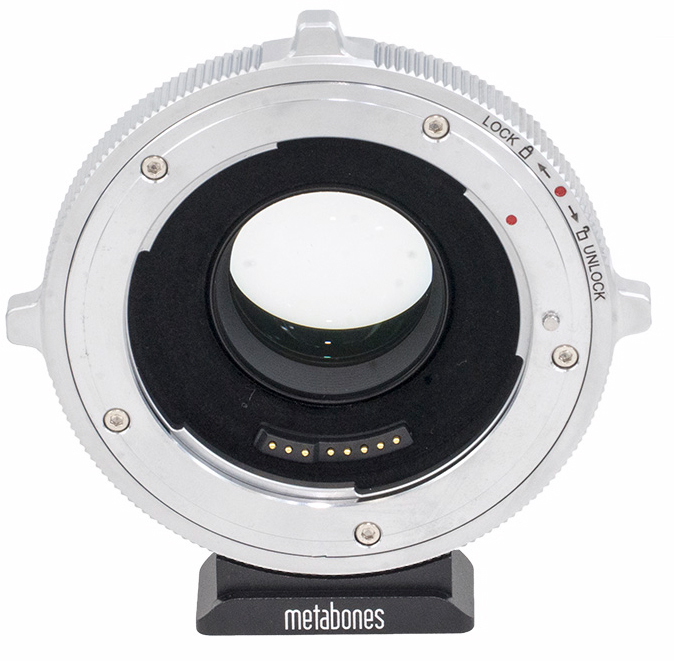

Metabones Canon EF to MFT T CINE Speed Booster XL 0.64x SKU: MB_SPEF-m43-BT6 The Speed Booster XL 0.64x is similar to the Blackmagic 0.64x BMCC Speed Booster (DISCONTINUED), but has been completely re-designed to meet the following requirements: The working distance has increased by 1mm to permit use on the Panasonic GH4 and a number of other Micro Four Thirds cameras without touching the flexible outer cover of the camera’s shutter mechanism. The optics are optimized for a standard Micro Four Thirds filter stack thickness of 4mm rather than the 2.4mm found in Blackmagic cameras. The image circle diameter has been increased to 21.63mm so that the full 17.3mm x 13mm Four Thirds format is covered.  This has been achieved while maintaining unusually high image quality over the 17.4mm image circle used by the Panasonic GH4 in its Cinema 4k video mode. Although the Speed Booster XL 0.64x has extra clearance compared to the 0.64x BMCC Speed Booster, there are still a number of Micro Four Thirds cameras that are not supported due to mechanical clearance issues.  This is summarized in the table below, which is color-coded so that Green means the camera is supported and Red means the camera is not supported.  Note that many of the Red-coded cameras actually do function, but there is a minor interference with the protective shutter cover.  Although slight contact with the shutter cover appears to have no effect on the functioning or cosmetics of either the camera or the Speed Booster we cannot support these combinations due to possible risk of damage. Autofocus with an Optimum Balance of Accuracy, Speed, Consistency and Reliability New in Speed Booster XL for Canon EF Mount to Micro Four Thirds is autofocus support, subject to certain limitations (see table above for details). We are pleased to report that Panasonic Micro Four Thirds camera bodies are capable of autofocusing accurately even if the maximum aperture of the Speed Booster and the lens combined is in the sub-f/1.0 range. Although our first and foremost priority is accuracy, we are able to make great strides in autofocus speed as well. Metabones Speed Booster XL 0.64x Specifications Magnification:  0.64xCrop Factor for Full Micro Four Thirds format:  1.28xCrop Factor with GH4 in Cinema 4k (4096 x 2160) Video Mode:  1.5xMaximum Output Aperture:  f/0.80 (with f/1.2 lens attached)Rectilinear Distortion:  < 0.8%Lens Elements/Groups:  6/4Length Reduction:  6.2 mmCamera Mount:  Micro Four ThirdsImage Format:  17.3 mm x 13.0 mm (full Micro Four Thirds format)

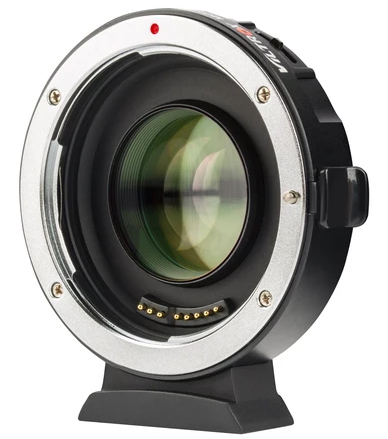

VILTROX EF-M2 II Viltrox EF-M2 mount adapter is designed to allow Canon EF-mount series lens to be used on M43 camera. EF-M2 II features electronic contacts to maintain autofocus, auto-exposure, image stabilization capabilities, transfer Exif data and enable aperture adjustment from the camera body. This Viltrox adapter features 0.71x-magnification focal reducer, which helps to offset much of the crop factor of Micro Four Thirds cameras as well as concentrates the light in order to increase the effective aperture by one stop. Features Plus 0.71 based on the original focal length (equivalent focal length=focal length x0.71), which help enlarge 1 level aperture.Build-in 4groups, 4pcs optical glasses, AF(autofocus) and adjustable aperture,etc.Gold-plated electronic contact, Auto-focus functionIt can realize AF,adjustable aperture from camera body to lens's apertureMore durable metal materialCompatible for all the EF-lens Specification Compatible lenses: Canon EF series lensesCompatible cameras: M43 series camerasFocus mode: Auto focusFocal Lenth Multiplier: 0.71xOptical glasses: 4 groups, 4 glassesTripod Socket: Cu1/4"× 1Diameter and Length: Φ67mm x 25mm.Weight: Approx. 85 g (excluding cap)Front cap: Camera coverRear cap: Lens Dust cap

Metabones Canon EF to MFT T T ULTRA 0.71x Speed Booster Adapter SKU: MB_SPEF-M43-BT4 The new Metabones Speed Booster ULTRA 0.71x Adapter m43 uses an advanced 5-element 4-group optical design incorporating ultra-high index tantalum-based optical glass.  However, the new design is specifically optimized for the Micro Four Thirds sensor and filter stack, and as a result achieves an astonishing level of performance that sets a new standard for focal reducers. Like the revolutionary original Metabones Speed Booster® announced in January 2013, the Speed Booster ULTRA m43 has a magnification of 0.71x, and so it effectively reduces the crop factor of mirrorless Micro Four Thirds mount cameras from 2.0x to 1.4x.  However, the new ULTRA design makes very effective use of exotic materials at the furthest limit of glassmaking technology, and as a result is almost perfectly corrected for use with all fullframe SLR lenses regardless of aperture.  The Speed Booster ULTRA m43 will also work extremely well with many DX and APS-C format lenses provided the image circle of the lens is large enough.  Optical performance of the new Speed Boosters is so good that the MTF of any lens attached to it will be improved.  Even the latest generation of ultra-high performance SLR lenses such as the Zeiss Otus series can be improved by adding a Speed Booster ULTRA m43. New in Metabones Speed Booster ULTRA for Canon EF Mount to Micro Four Thirds is autofocus on Panasonic camera bodies, subject to certain limitations (see table above for details). We are pleased to report that Panasonic Micro Four Thirds camera bodies are capable of autofocusing accurately even if the maximum aperture of the Speed Booster and the lens combined is in the sub-f/1.0 range. Although our first and foremost priority is accuracy, we are able to make great strides in autofocus speed as well, which is significantly faster than a DSLR Four Thirds lens on a Panasonic Micro Four Thirds camera (with adapter), or our E-mount offerings on Sony cameras prior to Alpha 7R II. Autofocus Lens Compatibility List AccurateCanon EF20-35mm f/3.5-4.5 USMCanon EF24-105mm f/4L IS USMCanon EF35-80mm f/4-5.6Canon EF40mm f/2.8 STMCanon EF50mm f/1.2L USMCanon EF50mm f/1.4 USMCanon EF70-200mm f/2.8L IS II USMCanon EF70-300mm f/4-5.6L IS USMCanon EF85mm f/1.2L II USMCanon EF100mm f/2.8 USM macroSigma 18-35mm f/1.8 DC ArtSigma 18-125mm f/3.8-5.6 DC HSMTamron SP 24-70mm f/2.8 Di VC USD A007Tamron SP 70-200mm f/2.8 Di VC USD A009Tokina AT-X PRO 11-16mm f/2.8 DXIIAccurate only on newer cameras such as Panasonic G7Canon EF70-200mm f/4L USMCanon EF135mm f/2L USMCanon EF200mm f/2.8L II USMInaccurateCanon EF50mm f/1.8 IISigma 50mm f/1.4 EX HSMManual focus onlyContax N lenses modified by ConurusTamron SP 17-50mm f/2.8 VC B005Zeiss ZE lenses List of manual focus lenses which REQUIRE MODIFICATION to be used on Speed Booster Leica RSuper-Elmar-R 15mmElmarit R 28/2.8Elmarit R 35/2.8Summicron R 50/2Nikon F20/2.8 AI-SOlympus OMOM 18/3.5OM 21/2OM 21/3.5OM 28/2.8OM 50/1.8Pentax KEvery Pentax K-mount lens has a protruding fin and an aperture lever. It does NOT fit.

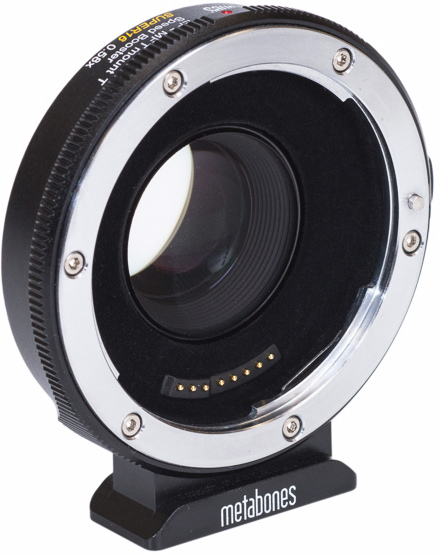

Metabones Canon EF to MFT T Speed Booster SUPER16 0.58x SKU: MB_SPEF-m43-BT7 Metabones Canon EF to Micro Four Thirds Speed Booster SUPER16 adapters are designed exclusively for Blackmagic Design cameras with Super 16mm sensor size, such as Blackmagic Mirco Cinema Camera (BMMCC), Micro Studio Camera 4K (BMMSC 4K) and the original Pocket Cinema Camera HD(BMPCC). They cannot be attached to any other M43 cameras such as JVC, Olympus or Panasonic cameras and they are not compatible with the newly released Blackmagic Pocket Cinema Camera 4K (BMPCC4K). The 0.58x Speed Booster SUPER16 reduces the crop factor of the Blackmagic Design cameras with Super 16mm sensor size from 3.02x to 1.75x and produces the largest aperture optics currently available, with a maximum output aperture of f/0.74. Here are a few examples: Optical Canon EF mount lens to M43 mount camcorders, specific for Blackmagic Design cameras with Super16mm sensor size.Increase maximum aperture by 1 2/3stop. (with a maximum output aperture of f/0.74).Increase MTFMakes lens 0.58x wider.Patented 6-element/4-group optical design by Caldwell Photographic in the USA. Electronic Lens iris/aperture is set by the controls on the camera body.Smooth iris support with the latest Canon (2009+), Tamron (SP series 2013+) and Sigma (2016+) lens models.Image stabilization (IS) lens support.Push autofocus if supported by camera.Electronic manual focusing (e.g. EF 85/1.2L II and discontinued EF 50/1.0L).Cinema EOS lens support (CN-E 18-80mm T4.4 L), including AF (requires external 5V power via micro USB port), auto iris and servo zoom.Powered by camera body. With most lenses, no external power source required. Mechanical The tripod foot is detachable and compatible with Arca Swiss, Markins and Photo Clam ball heads.Flocking to reduce internal reflection.Rubber gasket protects M43 mount connection from dust and moisture.Aluminum alloy and brass construction with chromium plating.Satin surface finish Compatibility List of Lens Canon EF-mount Lens Canon EF-Extender (Teleconverter)Canon EOS Cinema (CN-E) LensCarl Zeiss EF-mount LensSigma EF-mount LensTamron EF-mount LensTokina EF-mount LensContax N mount lenses modified to Canon EF by ConurusContax 645 NAM-1 adapter modified to Canon EF by Conurus Unsupported List  Standard M43 camera. When this Speed Booster® is used with other MFT camera, it may cause damage to the camera.Tokina opera 50mm F/1.4 FFLens correction such as peripheral shading, CA and distortion Focus confirmation "chip" (e.g. Dandelion) M42 screw mount adaptersStacking non-Metabones/non-Conurus mount adapters on top (see note 5 and list of lenses which require modification below.) Compatibility List of Camera BlackMagic Pocket Cinema CameraBlackMagic Micro Cinema Camera BlackMagic Micro Studio Camera 4K BlackMagic Studio Camera 4K BlackMagic Studio Camera

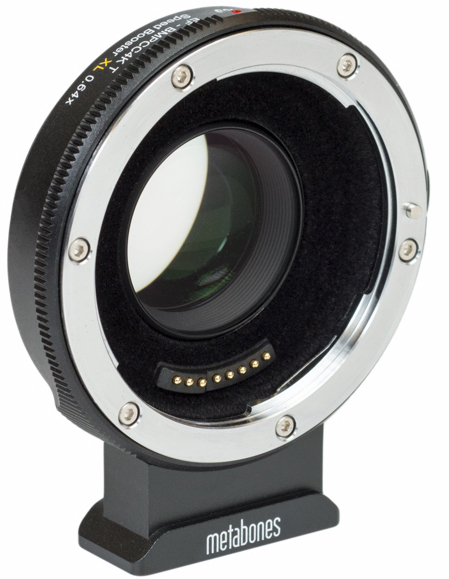

Metabones Canon EF to BMPCC4K T Speed Booster XL 0.64x SKU: MB_SPEF-m43-BT9 The BMPCC4K Speed Booster ULTRA 0.71x and XL BMPCC4K Speed Booster ULTRA 0.64x are similar to the standard M43 Speed Booster adapters (MB_SPEF-m43-BT3 and MB_SPEF-m43-BT4) but the optics have been re-designed to optimize for the filter stack thickness of 2.4mm found in Blackmagic cameras rather than the 4mm of a standard Micro Four Thirds. Metabones Canon EF to BMPCC4K Speed Booster adapters are designed exclusively for Blackmagic Design Pocket Cinema Camera 4K (BMPCC4K). They cannot be attached to any other M43 cameras such as JVC, Olympus or Panasonic cameras. The BMPCC4K Speed Booster XL 0.64x reduces the crop factor of the BMPCC 4K camera from 2.02x to 1.29x and produces the largest aperture optics currently available, with a maximum output aperture of f/0.8. Optical Canon EF mount lens to Blackmagic Design cameras with M43 mount, specific for BMPCC4K.Increase maximum aperture by 1 1/3 stop. (with a maximum output aperture of f/0.80).Increase MTF.Makes lens 0.64x wider.Patented 7-element/4-group optical design by Caldwell Photographic in the USA. Electronic Lens iris/aperture is set by the controls on the camera body.Smooth iris support with the latest Canon (2009+), Tamron (SP series 2013+) and Sigma (2016+) lens models.Image stabilization (IS) lens support.Push autofocus if supported by camera.Powered by camera body. With most lenses, no external power source required. Mechanical Flocking to reduce internal reflection.Rubber gasket protects M43 mount connection from dust and moisture.Aluminum alloy and brass construction with chromium plating.Satin surface finish.Detachable tripod foot compatible with Arca Swiss Style ball head, such as Markins and Photo Clam or attach to quick release plate by a 1/4"-20 screw. The tripod foot is tailor-made to match the exact height as the BMPCC4K camera body. Compatible Cameras BlackMagic Pocket Cinema Camera 4KBlackMagic Pocket Cinema Camera HD (original ver.)BlackMagic Micro Cinema Camera BlackMagic Micro Studio Camera 4K BlackMagic Studio Camera 4K BlackMagic Studio Camera

Metabones Canon EF to MFT T Smart Adapter SKU: MB_EF-m43-BT2 Starting from firmware V1.7, autofocus is enabled on Panasonic camera bodies, subject to certain limitations. The Panasonic Micro Four Thirds camera bodies are capable of autofocusing fast (large maximum aperture) lenses accurately. Although first and foremost priority is accuracy, Metabones is able to make great strides in autofocus speed as well, which is significantly faster than a DSLR Four Thirds lens on a Panasonic Micro Four Thirds camera (with adapter). Some improperly-made M42 screw mount adapters may short the electronic contacts of the Metabones Smart Adapter and cause damage to the Smart Adapter and/or camera body. Focus confirmation "chips" such as Dandelion are incompatible. Many manual focus lenses (e.g. OM 28/2.8, OM 50/1.8, Leica R 15/3.5) have rear protrusions (spikes, levers, other appendages) which would damage the housing of Smart Adapter. They need to be modified before they can be safely used on Smart Adapter. Check and make sure there are no rear protrusions from the adapter/lens combination before using on Smart Adapter. Scratches and damages caused by rear protrusions on Smart Adapter are not covered by warranty. List of manual focus lenses which REQUIRE MODIFICATION to be used on Smart Adapter Leica RSuper-Elmar-R 15mmElmarit R 28/2.8Elmarit R 35/2.8Summicron R 50/2Nikon F20/2.8 AI-SOlympus OMOM 18/3.5OM 21/2OM 21/3.5OM 28/2.8OM 50/1.8Pentax KEvery Pentax K-mount lens has a protruding fin and an aperture lever. It does NOT fit. Features ElectronicAuto focus on Panasonic Mirco Four Thirds camerasCan be powered either by camera body or by third-party external 5V power source (not included)Iris/aperture controlled by the camera body.Image stabilization (IS) lens supportElectronic manual focusing (e.g. EF 85/1.2L II and discontinued EF 50/1.0L)EXIF (focal length, aperture, zoom range)Distance and zoom display on camcorders (requires lenses supporting distance information)OtherDetachable tripod foot compatible with Arca Swiss, Markins and Photo Clam ball heads.Flocking material coating inside the opening to reduce internal reflection.Supports EF-S lenses.LimitationsNo autofocus support for JVC and OlympusAFC (continuous AF) and AFF (flexible AF) modes are not supportedVideo AF may hunt more than a native lensNo support for in-camera correction such as peripheral shading, CA and distortion Autofocus Lens Compatibility List AccurateCanon EF-S17-55mm f/2.8 IS USMCanon EF-S18-55mm f/3.5-5.6 IS IICanon EF20-35mm f/3.5-4.5 USMCanon EF24-105mm f/4L IS USMCanon EF35-80mm f/4-5.6Canon EF40mm f/2.8 STMCanon EF50mm f/1.2L USMCanon EF50mm f/1.4 USMCanon EF70-200mm f/2.8L IS II USMCanon EF70-300mm f/4-5.6L IS USMCanon EF85mm f/1.2L II USMCanon EF100mm f/2.8 USM macroSigma 18-35mm f/1.8 DC ArtSigma 18-125mm f/3.8-5.6 DC HSMTamron SP 24-70mm f/2.8 Di VC USD A007Tamron SP 70-200mm f/2.8 Di VC USD A009Tokina AT-X PRO 11-16mm f/2.8 DXIIAccurate only on newer cameras such as Panasonic G7Canon EF70-200mm f/4L USMCanon EF135mm f/2L USMCanon EF200mm f/2.8L II USMInaccurateCanon EF50mm f/1.8 IISigma 50mm f/1.4 EX HSMManual focus onlyContax N lenses modified by ConurusTamron SP 17-50mm f/2.8 VC B005Zeiss ZE lenses
