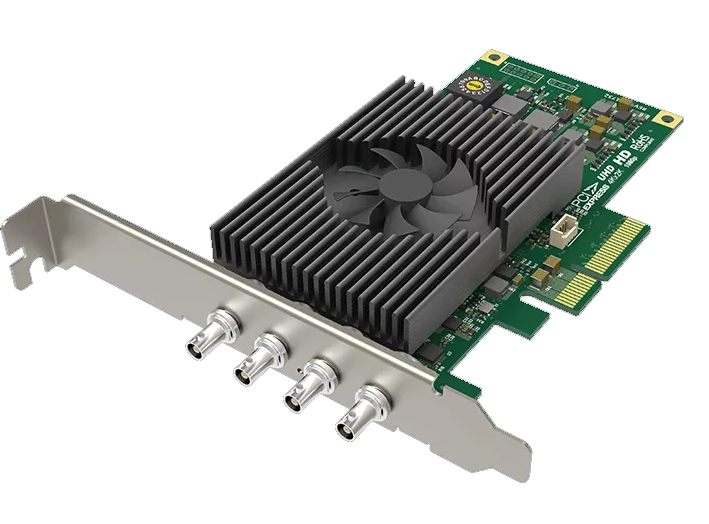

Magewell Pro Capture SDI 4K Plus

Magewell Pro Capture SDI 4K Plus

The Magewell Pro Capture SDI 4K Plus is a high-performance, single-channel 4K capture card designed to handle the most demanding video capture applications. With support for 12G-SDI, 6G-SDI, and 3G-SDI connections, this card provides a versatile solution for capturing high-resolution video streams in a variety of formats, including single-link 12G-SDI, dual-link 6G-SDI, and quad-link 3G-SDI. The Pro Capture SDI 4K Plus supports up to 4096x2160 resolution, making it ideal for high-end video production, live streaming, and broadcast environments that require superior video quality and flexibility.

The Pro Capture SDI 4K Plus is equipped with Magewell’s powerful VideoEngine, offering 10-bit video processing and advanced features such as deinterlacing, cropping, color adjustment, hardware timestamping, and more. It’s designed for continuous, 24/7 operation, ensuring reliability for long-running workflows. The PCIe Gen2 x4 interface provides efficient data transfer, enabling high-quality video capture with low latency.

With support for multiple capture streams and an extensive software ecosystem, the Pro Capture SDI 4K Plus is compatible with various OS platforms (Windows, Linux, and Mac) and integrates seamlessly with over 50 professional applications. Whether you're working with live events, video editing, or broadcasting, this capture card offers exceptional performance and features to meet the demands of professional video workflows.

Interface

• Input Interface: SD/HD/3G/2K/6G/12G SDI x1 (single-link, dual-link, or quad-link)
• Supports input resolutions up to 4096x2160 pixels

Video Engine

• 10-bit video processing
• Features include deinterlacing, cropping, color adjustment, hardware timestamping, color space conversion, up/down conversion, aspect ratio conversion, and OSD (On-Screen Display)
• SG-DMA Transmission mode

Signal Detection and Support

• Auto detection of input signal format
• Time Code and Closed Caption support

Software Environment

• OS Support: Windows, Linux, Mac
• Driver and Firmware: Universal driver, updatable firmware
• Included Software: Capture Express
• Compatible Software: Over 50 professional applications

Additional Features

• Multiple capture streams and low-latency mode
• Multiple devices on one host
• Mounting hole for installation
• High-speed memory and LED status indicator
• Rotary switch for additional control
• Continuous 24/7 operation
• Windows, Linux, and Mac SDK support
• 2-year warranty

In the Box

• Pro Capture SDI 4K Plus card
• 4x HD-BNC to BNC cables (Part number: ACC00053)
• Low Profile Bracket (Part number: ACC01251)
• Quick Start Guide Warranty Card
