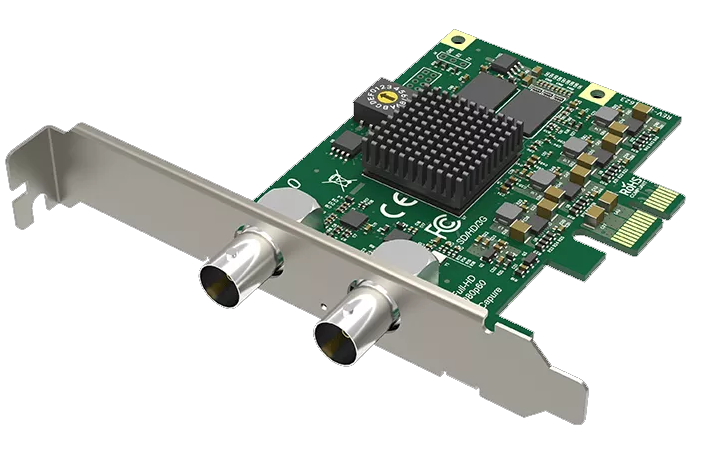

Magewell Pro Capture SDI

Magewell Pro Capture SDI

The Magewell Pro Capture SDI is a single-channel HD capture card that captures SD, HD, 3G, and 2K SDI video signals, with embedded audio. This capture card is designed for high-quality video capture, offering an ideal solution for applications such as video production, broadcasting, and live streaming. It supports input resolutions up to 2048x1080 pixels, making it suitable for various SDI-based video sources.

The Pro Capture SDI uses a PCIe Gen2 x1 interface, ensuring reliable and fast data transfer. It features Magewell’s VideoEngine, which provides a range of advanced video processing features, including deinterlacing, cropping, color adjustment, and hardware timestamping. This card also supports closed captioning and time code, offering added functionality for professional video workflows.

This card’s loop-through SDI output ensures seamless monitoring of the input signal while it’s being captured. Additionally, the Pro Capture SDI supports low-latency capture, multiple capture streams, and can connect multiple devices to a single host. It includes universal drivers and works with major operating systems, including Windows, Linux, and Mac, and comes with Capture Express software for easy configuration and setup.

Interface

• Input Interface: SD/HD/3G/2K SDI with embedded audio
• Loop-through Interface: SD/HD/3G/2K SDI with embedded audio
• Supported Resolution: Up to 2048x1080 pixels

Video Engine

• 10-bit video processing
• Deinterlacing, cropping, and color adjustment
• Hardware timestamp, color space conversion, up/down conversion
• Aspect ratio conversion and OSD (On-Screen Display)
• SG-DMA transmission mode

Signal Detection and Support

• Auto detection of input signal format
• Time code support
• Closed caption support

Software Environment

• OS Support: Windows, Linux, Mac
• Driver and Firmware: Universal driver, updatable firmware
• Included Software: Capture Express
• Compatible Software: Over 50 applications

Additional Features

• Multiple capture streams and low latency mode
• Multiple devices on one host
• Mounting hole for installation
• High-speed memory and LED status indicator
• Rotary switch for additional control
• Continuous 24/7 operation
• Windows, Linux, and Mac SDK support
• 2-year warranty

In the Box

• Pro Capture SDI card
• Low Profile Bracket (Part number: ACC01171)
• Quick Start Guide
• Warranty Card
