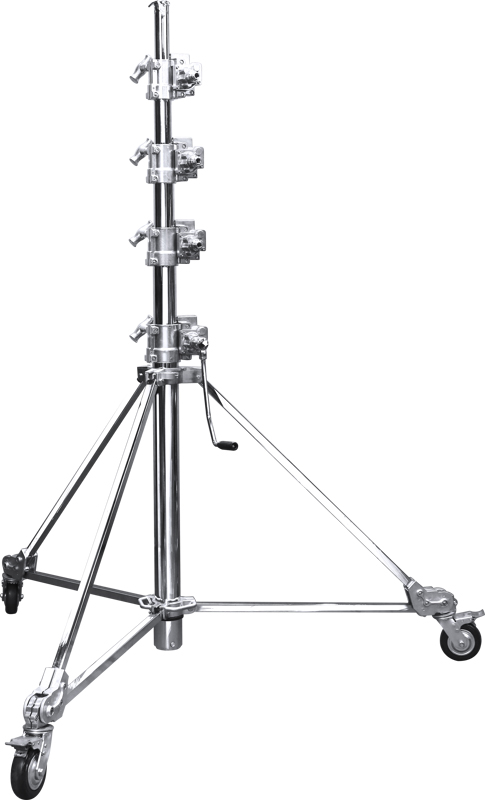

KUPO 756 Jumbo Stand with Braked Wheels
PLN 22,238.83
KUPO 756 Jumbo
The Kupo Jumbo Stand, made from chrome plated steel, is specifically designed to satisfy the industry’s requirement for extra heavy loads with the ultimate goal of safety in mind.

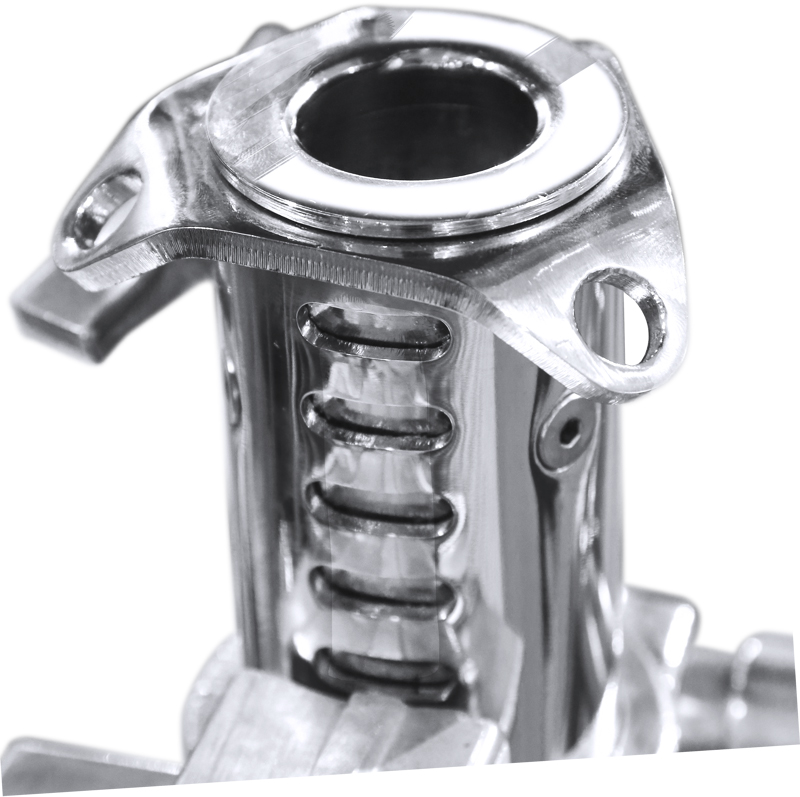

The Kupo Jumbo Stand can support a load capacity up to 70kg and delivers a maximum working height of 6.1m when fully extended. Features Kupo's direct drive gear mechanism and auto-locking instead of pulleys and cables.
Features
Made of Chrome plated steel, designed to satisfy the industry's requirement for extra safe operation with a heavy load

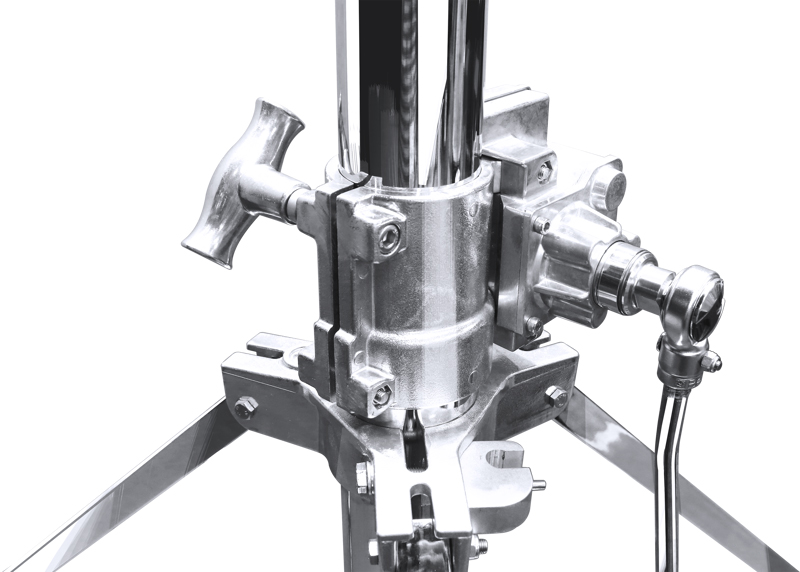

Oversize big handle on each riser for biggest torque
Brace on leg made of rectangular steel tubing for maximum stability and safety

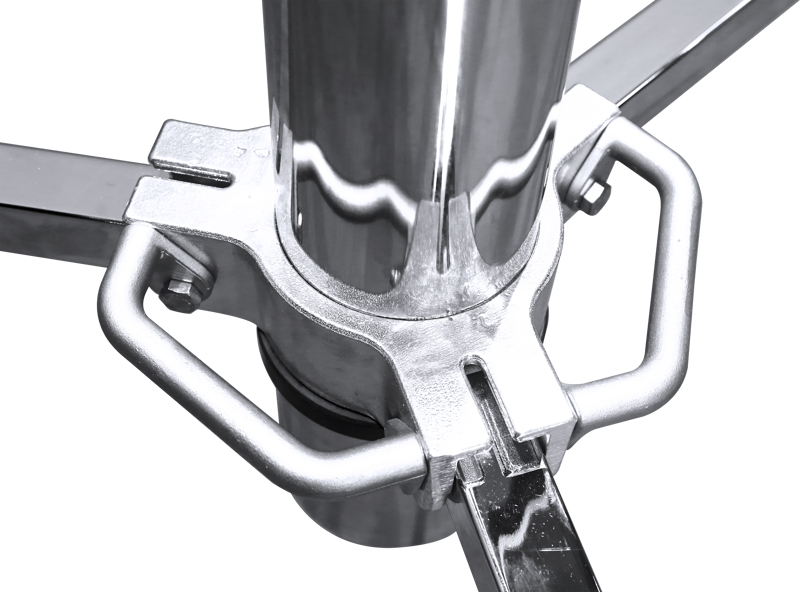

Dual handle equipped on bottom spider casting for easily folding the base
Max height: 6.1m / Max load: 70kg
Technical data
Weight: 75600g
Folded Length: 2300mm
Maximum Height: 6100mm
Maximum Payload: 70kg
Details of the manufacturer
- KUPO CO., LTD.
- 6F, NO. 4, Lane 609, Sec. 5, Chung Shin Rd., San Chung, TAIPEI, TAIWAN
886-2-2999-1906
Details of the person responsible for putting the product on the European market
- CBM GmbH
- Gerhard Baier
- Max-Planck-Str. 6
- 85609 Dornach near Munich, Germany
+49 89 945 48 49-0
