KUPO 721 Jumbo Stand 2 sections
PLN 12,041.70
KUPO 721 Jumbo

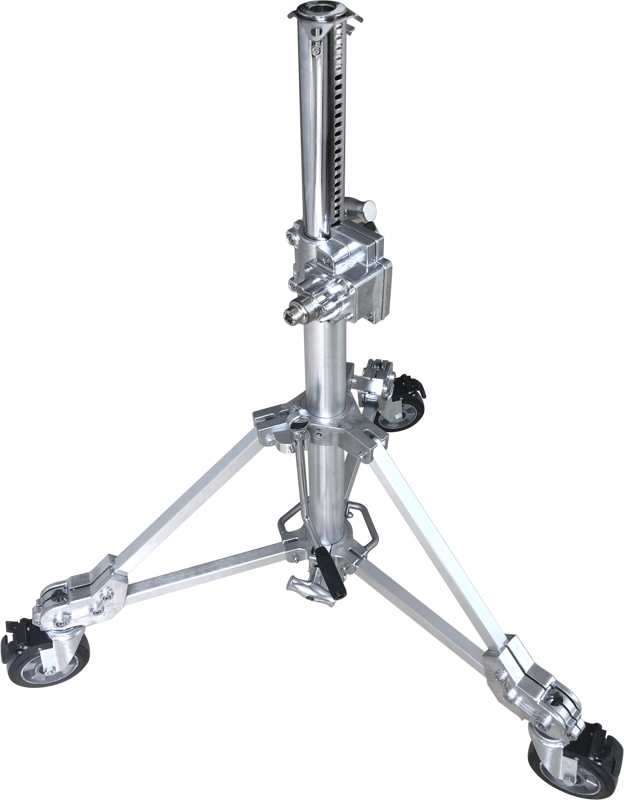

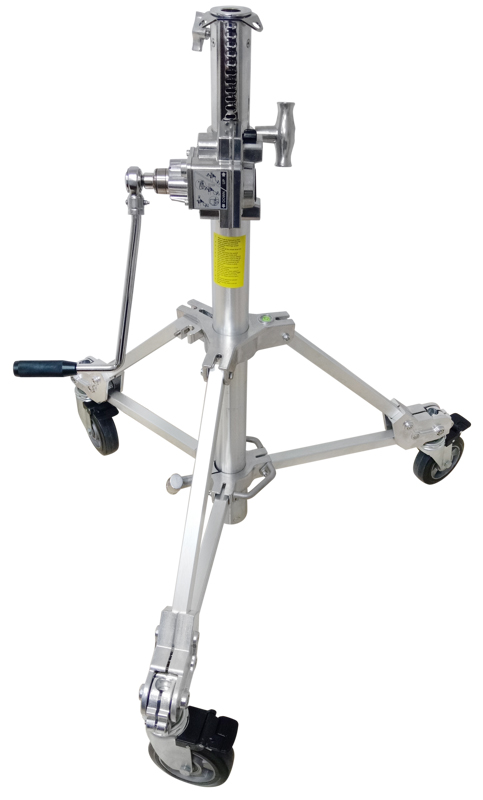

The Kupo Jumbo Stand is made of chromed steel, and is specifically designed to meet the industry's need for extra heavy loads with the ultimate goal of safety in mind. This Kupo Jumbo Stand can support a load capacity of up to 100 kg and delivers a maximum working height of 175 cm. when it is fully extended. Features Kupo's direct drive gear mechanism and auto-locking instead of pullies and cables.
Features
Large size T-handle on each riser is ergonomically design for maximum torque
28mm (1-1/8”) junior receiver with 3 eyelets for wind bracing kit
Dual handle equipped on bottom spider casting for easily folding the base
Leg brace is made of rectangular steel tubing for maximum stability and safety
Auto self-locking device prevents unintentional and uncontrolled lowering of the load
Industry 6” (152mm) braked caster included makes stand moveable in the studio or on location
Assembled by nuts and bolts for easier maintenance and tightness adjustable instead of fixed rivet
Details of the manufacturer
- KUPO CO., LTD.
- 6F, NO. 4, Lane 609, Sec. 5, Chung Shin Rd., San Chung, TAIPEI, TAIWAN
886-2-2999-1906
Details of the person responsible for putting the product on the European market
- CBM GmbH
- Gerhard Baier
- Max-Planck-Str. 6
- 85609 Dornach near Munich, Germany
+49 89 945 48 49-0
