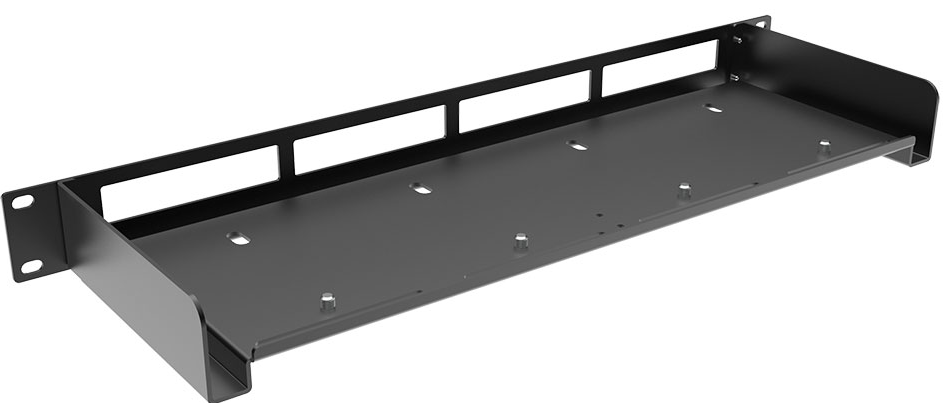

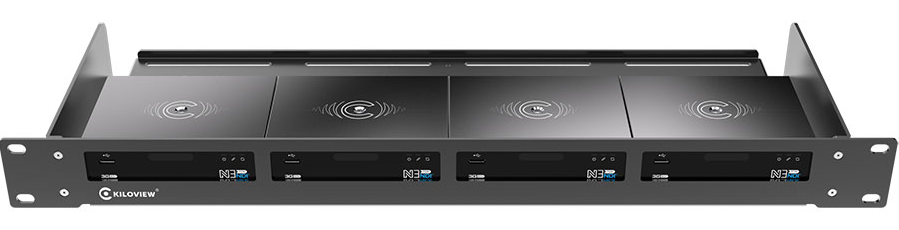

Kiloview RN01 1RU Mounting Frame

Kiloview N30 Kiloview N30 12G-SDI/Full NDI converter is a bi-directional converter that supports 12G-SDI video input (encoder) to Full NDI with 12G-SDI loop through for view on monitor, or 12G-SDI video output (decoder) from Full NDI. Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, the N30 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production. The Kiloview N30 supports up to 12G-SDI 4K video input to Full NDI and loop through for monitoring, at the same time it supports full NDI to 12G-SDI output. It’s a real broadcast-grade NDI converter. Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows. Kiloview N30 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required. N30 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team Technical data Video input: 1 x12G-SDIVideo output: 1x12G-SDI（Loop or decoding output）Audio port: 1x3.5mmNetwork: 1xRJ45 1000Mbps Ethernet port (with PoE)Video resolution: Up to 4Kp60 (backward compatible with SD/HD/VESA)NDI codec capacity: 1xNDI encoding or 1x NDI® decodingNDI CODEC feature: FULL NDI HD encoding, typical bitrate: 250Mbps@4K60 ,125Mbps@1080p60LED indicator: Tally light, power light and status connection lightPower: PoE, DC, D-Tap (camera) optional. 5-18V wide range supportedVoice intercom: CustomizationPTZ control: Network PTZ and Serial PortDHCP: SupportManagement: Web UI and remote management with KILOVIEW KiloLink ServerPower consumption: 6wOperating temperature: -20~40℃ (Storage temperature: -20~70℃)Dimension: 110 x 95 x 23 mm

Kiloview N40 PLUS Kiloview N40 4K HDMI/NDI converter is a bi-directional converter that supports 4K HDMI video input (encoder) to full NDI with 4K HDMI loop-through for view on monitor, or 4K HDMI video output (decoder) from full NDI. Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio mic in/out, multi-channel audio, intercom functions, the N40 is your best choice to get access to the fabulous NDI world! With HDMI2.0 interface, It supports real 4Kp60 video input and convert it to full NDI and loop through for monitoring, at the same time it supports Full NDI to 4K HDMI output. It’s a real 4K NDI converter for high image quality. Kiloview N40 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required N40 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team. Features Video input: 1xHDMIVideo output: 1xHDMI（Loop or decoding output）Audio port: 1x3.5mmNetwork: 1xRJ45 1000Mbps Ethernet port (with PoE)Video resolution: Up to UHD 4K60 (backward compatible with SD/HD/VESA)NDI codec capacity: 1x NDIencoding or 1x NDI® decodingNDI CODEC feature: FULL NDI HD encoding, typical bitrate: 250Mbps@4K60, 125Mbps@1080p60LED indicator: Tally light, power light and status connection lightPower: PoE, DC, D-Tap (camera) optional. 5-18V wide range supportedVoice intercom: CustomizationPTZ control: Network PTZ and Serial PortDHCP: SupportManagement: Web UI and remote management with KILOVIEW KiloLink ServerPower consumption: 6wOperating temperature: -20~45℃ (Storage temperature: -20~70℃)Dimension: 100 x 80 x 24 mm

Kiloview N3-s Kiloview N3 3G-SDI/Full NDI converter is a bi-directional converter that supports 3G-SDI video input (encoder) to Full NDI with 3G-SDI loop through for view on monitor, or 3G-SDI video output (decoder) from full NDI. Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, Kiloview N3 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production. NDI encoding + decoding, one unit, dual use Plug-and-play operation, SDI to NDI®, or NDI® to the screenEquipped with SDI input and output interfaces, which can be looped out on the monitor during streaming, or output SDI signal during decodingPreset 10 outputs, including 9 decoding addresses and 1 blank preset box (customizable background color), and USB extended keyboard for switching High quality and low latency transmission Encoding and decoding both support 1080p60 (HD) resolution, backward compatible with SD/HD/VESA resolution and other special resolutionsUltra-low latency, end-to-end latency is less than 100msFULL NDI high-quality encoding ensures excellent image quality, and lossless audio encoding ensures high-fidelity sound quality More advanced functions at your palm Built-in large-size Tally light to indicate PGM or PVW statusSupport for PoE (Power over Ethernet) and 5-18V DC input powered by USB, mobile power or camera batterySupport voice intercom via USB headsetPTZ control with protocols of Visca/Visca over IP/Pelco (special PTZ control protocols can be customized)Integrated with KiloLink Server for centralized managementSDK/API provided for secondary development Technical data Video input: 1x3G-SDIVideo output: 1x3G-SDI（Loop or decoding output）Audio port: 1x3.5mmNetwork: 1xRJ45 1000Mbps Ethernet port (with PoE)Video resolution: Up to 1080p60 (backward compatible with SD/HD/VESA)NDI codec capacity: 1xNDI encoding or 1*NDI® decodingNDI codec feature: FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60LED indicator: Tally light, power light and status connection lightPower: PoE, DC, D-Tap (camera) optional. 5-18V wide range supportedVoice intercom: CustomizationPTZ Control: Network PTZ and Serial PortDHCP: SupportManagement: Web UI and remote management with KILOVIEW KiloLink ServerPower consumption: 6wWorking Temperature -20~45℃ (Storage temperature: -20~70℃)Dimension: 100 mm x 80 mm x 24 mm /0.2 kg

Kiloview N5/N6 Full-Functional NDI ConverterKiloview N5/N6 is a bi-directional NDI converter that supports 3G-SDI/HDMI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device. Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5/N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.N5: 3G-SDI I/ON6: 1080P HDMI I/O Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI HX 2/3 video streamIn decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI/HDMI. N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time. Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required. N5/N6 technical dataVideo Input: N5: 1*3G-SDI; N6: 1*HDMIVideo Output: N5: 1*3G-SDI ( Loop-out ); N6: 1*HDMI ( Loop-out )Audio Ports: 1*3.5mm Line I/ONetwork Connections: 1*RJ45 1000Mbps Ethernet port (with PoE)Video resolution: Encoding&Decoding: Up to 1080p60NDI Codec FeaturesNDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60NDI|HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60USB Webcam Input: YesTally: YesPower Supply: PoE/DC/D-tapPTZ Control: YesDHCP: YesManagement: WebUI/KiloLink ServerPower Consumption: 6wOperating Temperature: -20~45℃Storage Temperature: -20~70℃Size: 100mm*80mm*24 mmWeight: 272g

Kiloview N5/N6 Full-Functional NDI ConverterKiloview N5/N6 is a bi-directional NDI converter that supports 3G-SDI/HDMI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device. Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5/N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.N5: 3G-SDI I/ON6: 1080P HDMI I/O Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI HX 2/3 video streamIn decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI/HDMI. N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time. Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required. N5/N6 technical dataVideo Input: N5: 1*3G-SDI; N6: 1*HDMIVideo Output: N5: 1*3G-SDI ( Loop-out ); N6: 1*HDMI ( Loop-out )Audio Ports: 1*3.5mm Line I/ONetwork Connections: 1*RJ45 1000Mbps Ethernet port (with PoE)Video resolution: Encoding&Decoding: Up to 1080p60NDI Codec FeaturesNDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60NDI|HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60USB Webcam Input: YesTally: YesPower Supply: PoE/DC/D-tapPTZ Control: YesDHCP: YesManagement: WebUI/KiloLink ServerPower Consumption: 6wOperating Temperature: -20~45℃Storage Temperature: -20~70℃Size: 100mm*80mm*24 mmWeight: 272g
