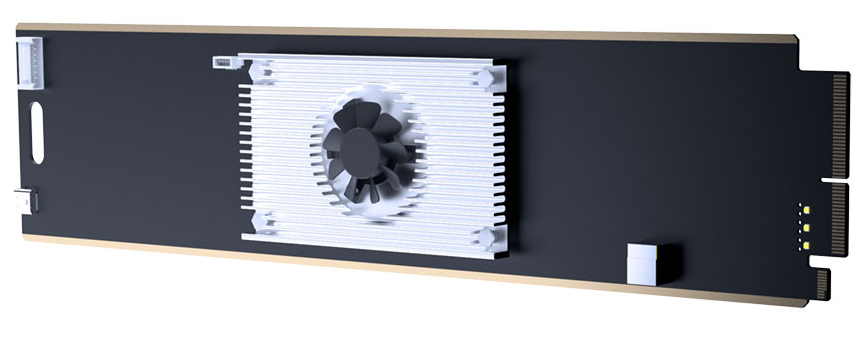

Kiloview FMG-400 Media Gateway Card

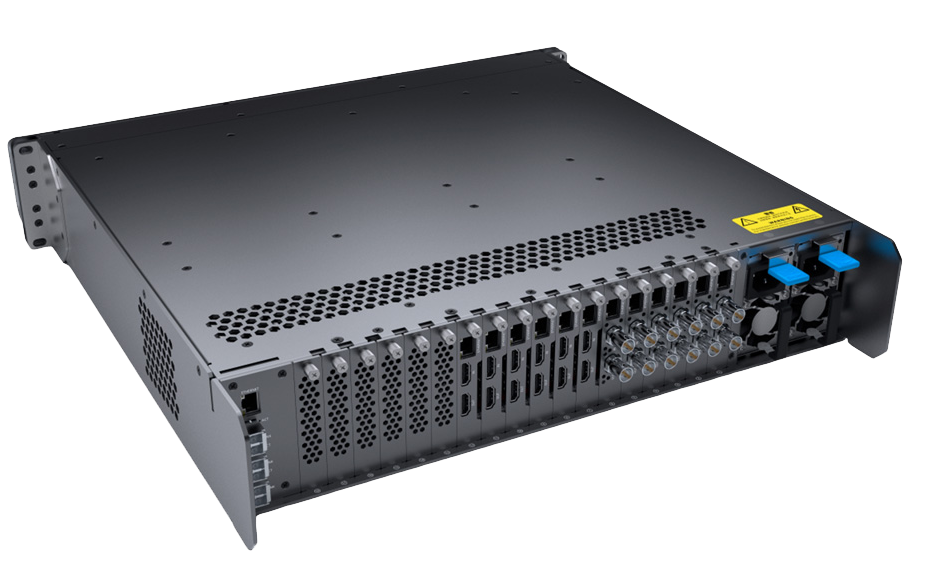

Kiloview RF02Cradle Series RF02, the flagship rack-mounted media platform from Kiloview, is your ultimate media management center. Within its 2RU high-density structure, the RF02 supports flexible configuration of up to 18 card modules, enabling encoding, decoding, media gateway, bonding, etc. Its modular design replaces the clutter of multiple standalone devices with a streamlined, unified solution, providing the most complete and lightweight AV-over-IP solutions for broadcast-grade production, medical imaging transmission, remote education, live event streaming, and more.High-Speed ConnectivityThe RF02 provides three 10Gbps SFP+ fiber Ethernet interfaces and one 10Gbps RJ45 Ethernet interface, ensuring effortless handling of high-bandwidth NDI streams.Integrated Network SwitchEquipped with a built-in 1G/2.5G network switch module that interconnects all module cards, RF02 supports a full range of capabilities including encoding, decoding, NDI conversion, media gateway, bonding, etc.Efficient Data FlowRF02 streamlines the data flow within the platform, eliminating the need for external network switches. This setup not only reduces setup complexity and costs but also enhances the reliability of data transfer.Unified ControlRF02 is powered by an ARM64 main controller running a customized version of Kiloview’s KiloLink Server Pro, purpose-built for this platform. It enables automatic discovery, monitoring, and configuration of all module cards through a unified interface.On-Premise Bonding ServiceWith media gateway card FMG-400, RF02 can serve as an on-premise server for Kiloview’s P Series 4G/5G wireless bonding encoders, providing secure and reliable remote device and bonding management. Paired with a decoding card, it can seamlessly output remote video streams to SDI or HDMI at various resolutions.Streamlined OperationsThe platform automatically identifies and manages all workflow streams, allowing users to monitor status, assign sources, and configure settings with ease—greatly reducing manual effort while ensuring stable, low-latency transmission.Technical dataMain Controller ModuleProcessor: 8-core ARM64 high-performance processor (Cortex) A73@1.8GHzMemory: 12GB DDR4Storage: 128GB EMMCOperating System /Software: Linux 5.10/KiloLink Server Pro RF versionManagement and Control: Web/ HTTP APINetwork Switch ModuleService Cards Connection: 18 x 1Gbps/2.5Gbps Adaptive Ethernet (Slot1/2 can support up to 10Gbps)External Connection: 3 x 10Gbps SFP+ Optical Ports (IEEE 802.3ae) 1 x 10Gbps RJ45 Ethernet portType: Three-layer managment switch/VLAN supportSwitching Capacity: 120GbpsOverall ChassisDisplay: 3-inch LCD color display (non-touchable)Buttons: 4 (Power/Flip left/Flip right/Select)External Connection: 3 x 10Gbps SFP+ Optical Ports / 1 x 10Gbps RJ45 Ethernet portHeat dissipation: Self-Adjust heat dissipation/ Auto-temp controlPower supply: Dual hot-swappable modular power supplies with redundant backup (configurable to single power mode)Single module specifications: AC 100-240V, 7A(Max), 60/50Hz, 500W MaxDimension:s 483mm x 487mm x 88 mm (2RU)Working Temperature: -10°C to 50°C

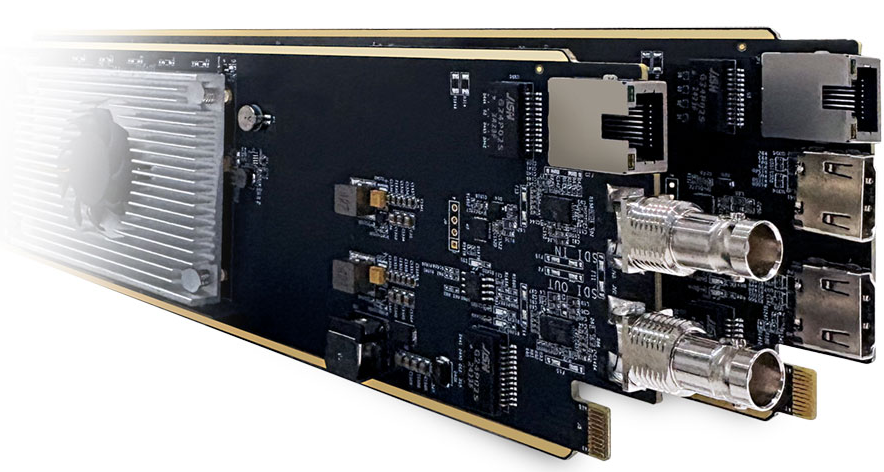

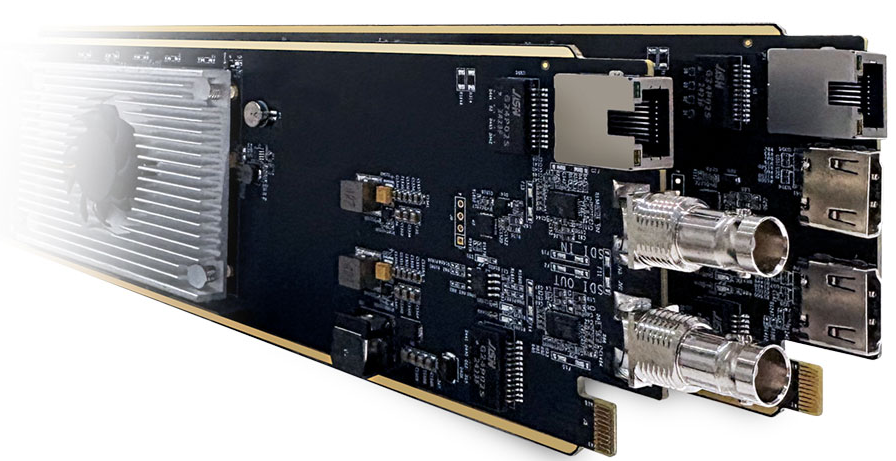

Kiloview FN-50/FN-60 4K Bi-Directional Conversion CardThe FN-50/FN-60 are high-performance 4K bidirectional conversion cards supporting NDI High Bandwidth, NDI HX, NDI HX3, and protocols like SRT/RTMP/RTSP/HLS/UDP/RTP. They offer 4:2:2 10-bit HDR color quality with NDI 6 support and NDI Bridge Utility for remote transmission, ensuring vibrant and accurate video.FN-50/FN-60 integrate seamlessly with Cradle Series RF02, and are centrally managed via KiloLink Server Pro for simplified operation and efficient maintenance. They also support PTZ control, NAS recording, and more—meeting the diverse needs of professional IP workflows. From broadcasting and live events to theaters, conferences, and sports productions, FN-50/FN-60 deliver high-quality video transmission with ease.FN-50/FN-60 are 4K UHD codec cards built for the next generation of broadcast-quality video, delivering high performance with ultra-low latency.FN-50 supports 12G-SDI input and loop-out, enabling video encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 12G-SDI output.FN-60 supports 4KP60 HDMI input and loop-out, enablingvideo encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 4K HDMIoutput.Both FN-50 and FN-60 support up to 4:2:2 10-bit HDR, delivering rich colors and fine detail for a true broadcast-grade viewing experience. Technical dataEncoding/Decoding PerformanceUp to 4K video encoding and decodingNDI SupportSupports NDI High BandwidthSupports NDI HX and NDI HX3Supports NDI 6Protocol CompatibilitySupports SRT/RTMP/RTSP/HLS/UDP/RTP protocolsImage qualitySupports 4:2:2 10bit HDRInternet transmissionNDI Bridge Utility

Kiloview FN-50/FN-60 4K Bi-Directional Conversion CardThe FN-50/FN-60 are high-performance 4K bidirectional conversion cards supporting NDI High Bandwidth, NDI HX, NDI HX3, and protocols like SRT/RTMP/RTSP/HLS/UDP/RTP. They offer 4:2:2 10-bit HDR color quality with NDI 6 support and NDI Bridge Utility for remote transmission, ensuring vibrant and accurate video.FN-50/FN-60 integrate seamlessly with Cradle Series RF02, and are centrally managed via KiloLink Server Pro for simplified operation and efficient maintenance. They also support PTZ control, NAS recording, and more—meeting the diverse needs of professional IP workflows. From broadcasting and live events to theaters, conferences, and sports productions, FN-50/FN-60 deliver high-quality video transmission with ease.FN-50/FN-60 are 4K UHD codec cards built for the next generation of broadcast-quality video, delivering high performance with ultra-low latency.FN-50 supports 12G-SDI input and loop-out, enabling video encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 12G-SDI output.FN-60 supports 4KP60 HDMI input and loop-out, enablingvideo encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 4K HDMIoutput.Both FN-50 and FN-60 support up to 4:2:2 10-bit HDR, delivering rich colors and fine detail for a true broadcast-grade viewing experience. Technical dataEncoding/Decoding PerformanceUp to 4K video encoding and decodingNDI SupportSupports NDI High BandwidthSupports NDI HX and NDI HX3Supports NDI 6Protocol CompatibilitySupports SRT/RTMP/RTSP/HLS/UDP/RTP protocolsImage qualitySupports 4:2:2 10bit HDRInternet transmissionNDI Bridge Utility
