Kiloview CV190 HDMI - SDI Converter

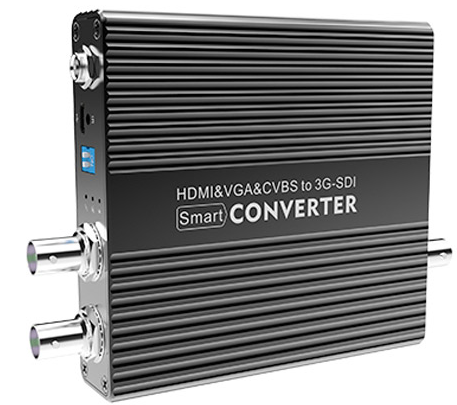

Kiloview CV190 HDMI (VGA/CVBS) to SDI Converter

Kiloview KV-CV190 is a broadcast level multifunctional video converter which can convert HDMI, VGA and AV(CVBS) to SDI-based coax signal with functions of frame conversion, resolution conversion, image scale up/down, color conditioning, image enhancement and adjustment. CV190 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

  • HDMI, VGA and AV (CVBS) signals can be manually specified or automatically identified
  • It supports HDMI audio un-embedded/ analog audio input, and making audio embedded into SDI signal
  • SD/HD/3G SDI output supported; supports 2 channels SDI output simultaneously
  • Integrated with enhanced SDI line driver, it can ensure SD SDI transmission distance up to 400m, HD SDI transmission distance 200 m, 3G SDI transmission distance 120 m, under Belden 1694A and same cable quality conditions
  • Advanced settings or firmware upgrading is available by connecting PC via USB

Technical data

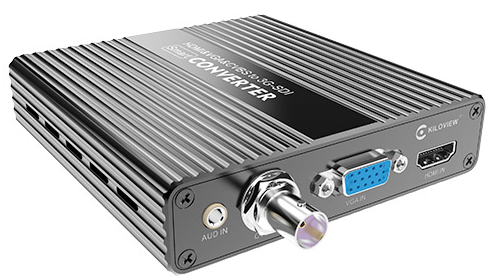

  • Input Interface: 1*HDMI, 1*VGA, 1*BNC AV(CVBS), 1*3.5mm dual-channel analog audio (1Vp-p)

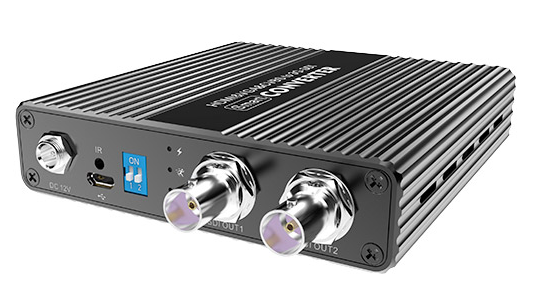

  • Output: 2*BNC-SDI (SD/HD/3G)
  • SDI transmitting distance: SDI transmitting distance Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m
  • Framerate/resolution conversion: Support
  • Audio embedding: Support
  • Management: Remote control/ PC connection with USB
  • Power supply: 12V, 1A
  • Consumption: 4w
  • Operation temperature: -20℃~60℃
  • Dimension: 120*100*26mm

Input format

  • HDMI: 480i,576i,480p, 576p, 720p@50/59.94/60,1080i@50/59.94/60
  • 1080p@24/25/29.97/30, 1080p50/59.94/60, compatible with VGA format, up to 1920x1080@60Hz
  • VGA: up to 1920x1080@60Hz, support all VESA standard resolution and common non-vesa resolution
  • YPbPr: (using VGA-YPbPr), support 720p50/59.94/60,1080i50/59.94/60 and 1080p24/25/29.97/30/50/59.94/60
  • AV(CVBS): PAL (576i)/NTSC (480i).
