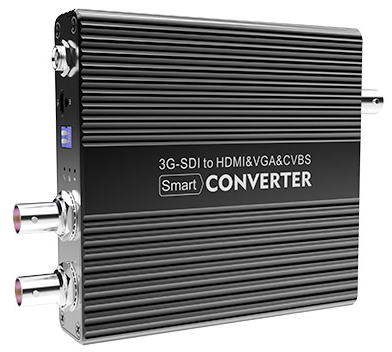

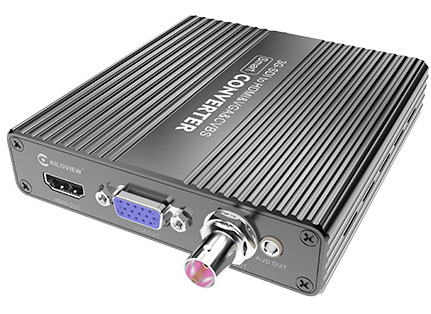

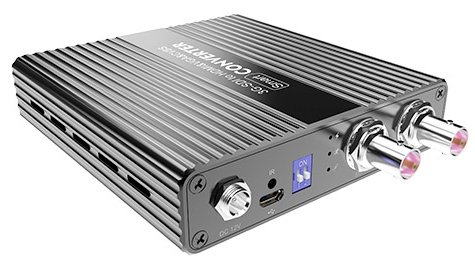

Kiloview CV180 SDI to HDMI (VGA/AV/CVBS) Converter

Kiloview CV180 SDI to HDMI (VGA/AV/CVBS) Converter

Kiloview CV180 SDI multi-function converter can convert SDI-based coaxial signals into HDMI, VGA and AV (CVBS) signal output, and has both frame rate/resolution conversion, color adjustment, image enlargement/reduction and other editing management functions. It supports one input and two output modes as well.

CV180 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

  • SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission
  • HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution, independent audio output available (either two of them can output at the same time)
  • HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA
  • OSD menu operation interface supported

Technical data

  • Input: 1*BNC SDI (SD/HD/3G SDI)
  • Output: 1*SDI, 1*HDMI, 1*BNC AV(CVBS), 1*VGA (Either two signals output simultaneously)
  • Loop out: 1*BNC SDI
  • SDI transmitting distance: Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m (Note: different cables have different transmission distances)
  • Framerate/resolution conversion: Support
  • Audio de-embedding: Support
  • Management: Remote control/PC connection with USB
  • Power supply: 12V, 1A
  • Consumption: 4w
  • Operation temperature: -20~60°C
  • Dimension: 120*100*26mm
  • Weight: 315g

Input format

  • 525i 59.94,625i 50
  • 720p 23.98/24/25/29.97/30/50/59.94/60
  • 1080i 50/59.94/60
  • 1080p 23.98/24/25/29.97/30/50/59.94/60.
